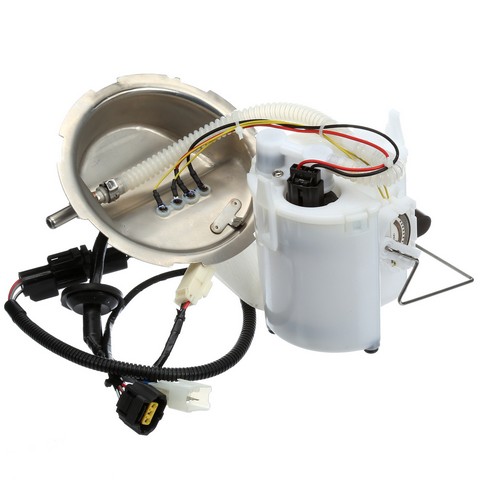

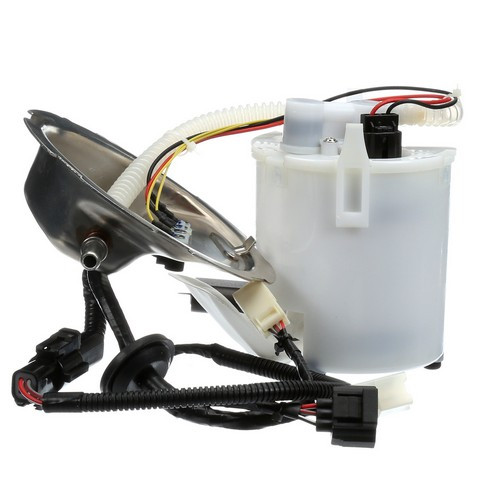

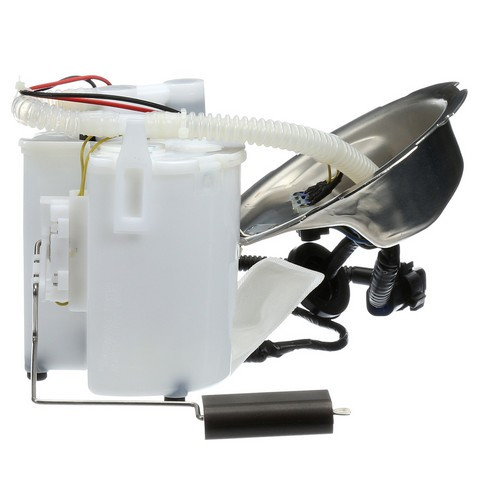

Delphi FG0945 fuel pump module for the 1998 Ford Escort and other vehicles pumps fuel from the tank to the engine. It is built to Delphi's OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested for its vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG0945 fuel pump module
- Also called: fuel pump assembly
- Fits: 1998 Ford Escort and other vehicles
- Condition: New
Hard starting, stalling or an inaccurate fuel gauge can point to a worn module, but a clogged fuel filter or a faulty fuel pump relay can be behind them too, so sort out which one it is before you buy.
Fits
This listing fits the 1998 Ford Escort and the 1998 Mercury Tracer. The 1998 Ford Escort takes one module, and so does the 1998 Mercury Tracer.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm, seal, clips and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 950-0181 · F8CZ 9H307-AJ · F8CZ 9H307-AK · PFS-226
4010140 · E2197M · DFG0945 · 67103 · 69542 · P74199 · P74943M · AFS0213S · RE0213S · C0013M · A34000 · E16069 · SP2197M · USEP2197M · TU230
This part cross-references / interchanges with the following part numbers:
4010140, E2197M, DFG0945, 67103, 69542, P74199, P74943M, 950-0181, AFS0213S, RE0213S, F8CZ 9H307-AJ, F8CZ 9H307-AK, PFS-226, C0013M, A34000, E16069, SP2197M, USEP2197M, TU230
Frequently Asked Questions
Does the Delphi fuel pump module fit the 1998 Ford Escort?
Yes. Delphi FG0945 is listed for the 1998 Ford Escort, and the 1998 Mercury Tracer takes it too.
What comes with the Delphi fuel pump module assembly?
Delphi FG0945 comes with the float arm, a seal, clips and an instruction sheet.
Does the Delphi fuel module match the original float height?
Yes. Its empty float height and float retention match OE specifications, which is what gives a correct gas gauge reading.
Should I clean the tank before fitting the Delphi module?
Yes. Check and clean the fuel tank before installing this module, and use the instruction sheet in the box for the steps.
How much load does this fuel pump assembly put on the electrical system?
Delphi FG0945 has a lower amperage draw, so it puts less load on the vehicle's electrical system.
