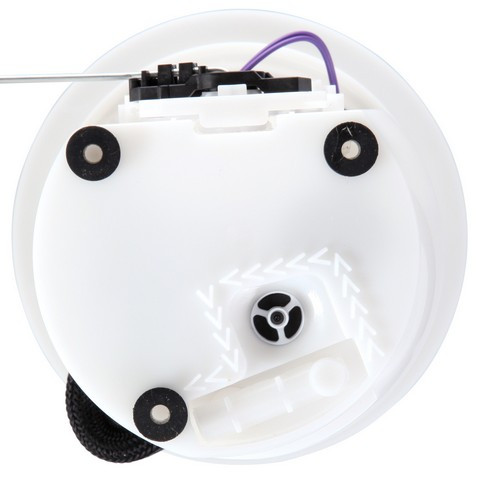

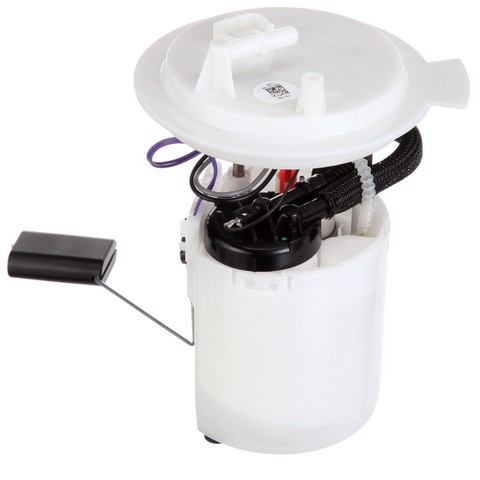

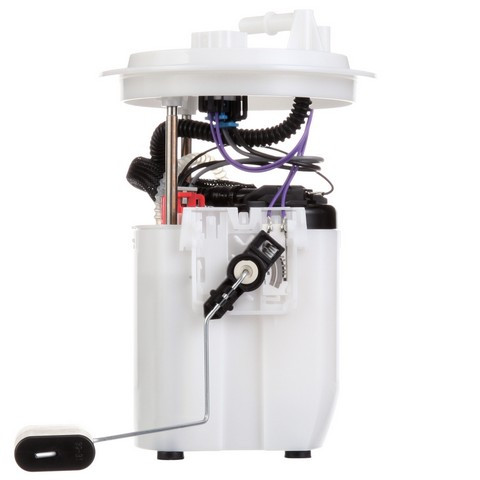

Keep fuel moving from the tank to the injectors with the Delphi Fuel Pump Module Assembly FG1139, an in-tank electric gas fuel pump module that drops in as a direct-fit replacement for the 2007-2010 Chrysler Sebring (L4-2.4L, V6-2.7L, V6-3.5L), the 2008-2014 Dodge Avenger (L4-2.4L, V6-2.7L, V6-3.5L), and the 2011-2014 Chrysler 200 (L4-2.4L). It packages the electric pump, internal strainer, fuel pressure regulator, and float-arm level sender into one serviceable unit.
- All-in-one module: includes the electric fuel pump with float arm, internal strainer, fuel pressure regulator, plus a seal and an instruction sheet.
- Gauge accuracy: empty float height and float retention are set to OE specifications to support correct gas gauge readings.
- Lighter electrical load: lower amperage draws less load on the vehicle's electrical system.
- Application-matched: a premium-grade module with a plastic housing, validated, tested, and matched to the listed vehicle applications.

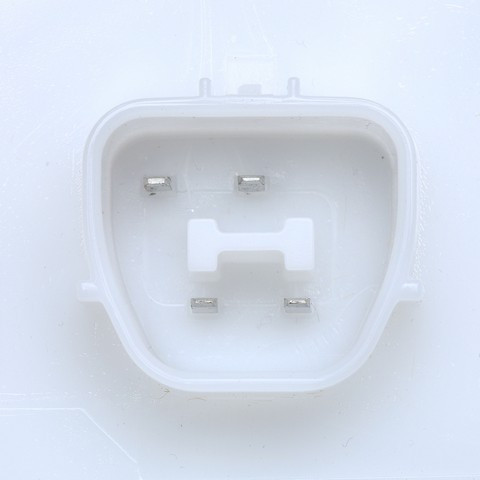

The module uses a single quick-connect outlet and a female trapezoid connector with four male pin terminals. A gasket/seal is included; mounting hardware and a lock ring are not — consult the vehicle service information for the correct fasteners and whether they may be reused. Before installing, check and clean the fuel tank to avoid unnecessary returns. If a failed fuel pump module is the cause of your no-start, hard-start, or stalling, this replaces it. Country of origin: Thailand. Manufacturer part number FG1139.
Frequently Asked Questions
What's included with the FG1139 module?
It ships as a fuel pump module with float arm, a seal, and an instruction sheet, and integrates an internal strainer and a fuel pressure regulator. Mounting hardware and a lock ring are not included.
Which vehicles does this fuel pump module fit?
It's a direct-fit replacement for the 2007-2010 Chrysler Sebring (L4-2.4L, V6-2.7L, V6-3.5L), 2008-2014 Dodge Avenger (L4-2.4L, V6-2.7L, V6-3.5L), and 2011-2014 Chrysler 200 (L4-2.4L). See the Buyer's Guide tab.
Does it include a fuel pressure regulator and strainer?
Yes. The module includes a fuel pressure regulator and an internal strainer, plus a gasket/seal. A lock ring and mounting hardware are not included.
What are signs my fuel pump module may need replacing?
Long crank or hard starts, stalling, loss of power under load, or a no-start can be signs of a failing fuel pump. Diagnose the cause first, since these symptoms have other possible causes.
Any tips before installing?
Check and clean the fuel tank before installation to avoid unnecessary returns, and consult the vehicle service information for the correct fasteners and whether they may be reused.
