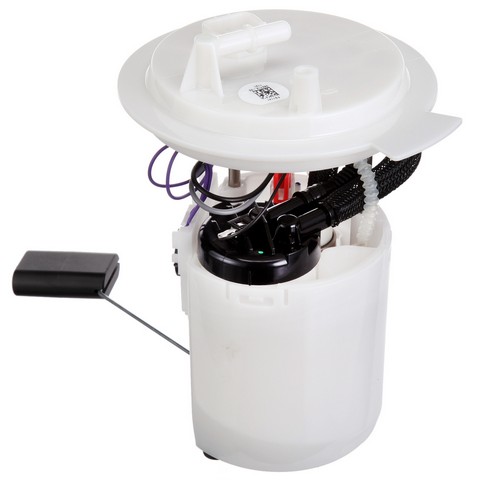

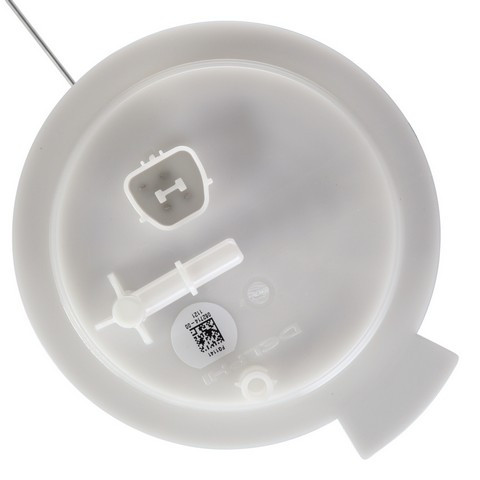

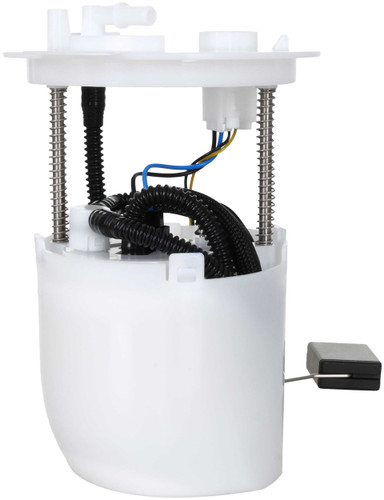

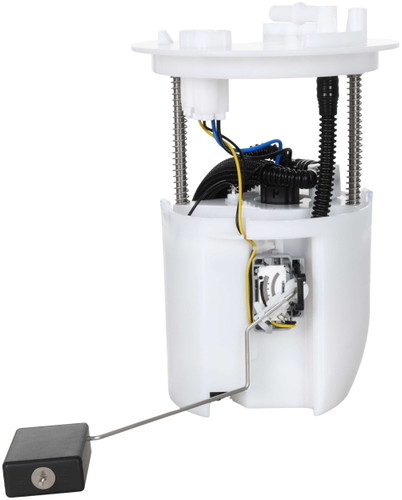

Delphi FG1141 fuel pump module for the 2010-2012 Ford Fusion 4-cylinder 2.5L and other vehicles pumps fuel from the tank to the engine. This Delphi fuel pump module assembly also carries the float arm for the fuel gauge, and some listings call it a fuel pump assembly.
- Built to Delphi's own fuel pump standards
- Empty float height and float retention are made to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1141 fuel pump module
- Also called: fuel pump assembly
- Fits: 2010-2012 Ford Fusion 4-cylinder 2.5L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the pump or float is wearing out. A failed relay or a blown fuse can leave an engine hard to start as well, so these signs alone do not prove the module is at fault.
Fits
It is a direct-fit replacement for the 2010-2012 Ford Fusion 4-cylinder 2.5L, the 2011-2012 Lincoln MKZ 4-cylinder 2.5L and the 2010-2011 Mercury Milan 4-cylinder 2.5L. These cars take one module apiece, and the listing is one module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: 4-cylinder 2.5L (L4-2.5L)
Build and materials
- Type: fuel pump module assembly with float arm
- Seal: included
- Condition: New
In the box

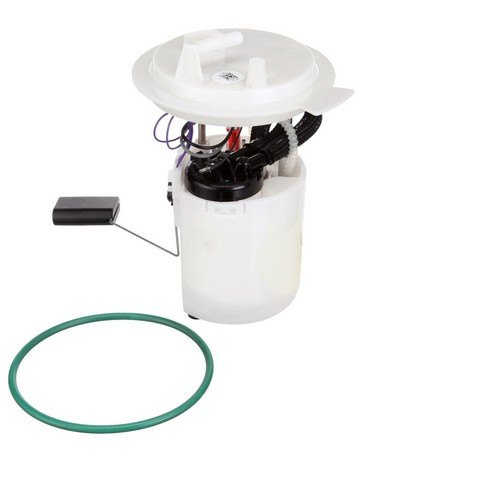

One fuel pump module assembly with float arm and seal, plus an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part.
Interchange: AE5Z 9H307-A · AE5Z 9H307-F · PFS-594
4010734 · E2561M · CFG1141 · P76583M · C0144M · A41017 · SP2097M · USEP2561M
This part cross-references / interchanges with the following part numbers:
4010734, E2561M, CFG1141, P76583M, AE5Z 9H307-A, AE5Z 9H307-F, PFS-594, C0144M, A41017, SP2097M, USEP2561M
Frequently Asked Questions
Is this Delphi fuel pump module the right one for a 2011-2012 Lincoln MKZ 4-cylinder 2.5L?
Yes. Delphi FG1141 fits the 2011-2012 Lincoln MKZ 4-cylinder 2.5L, and the car takes one module.
What comes with the Delphi fuel module?
Delphi FG1141 comes as a fuel pump module assembly with a float arm and a seal, plus an instruction sheet.
Will the float on this Delphi module read the gas gauge correctly?
Empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Does the tank need cleaning before installing this fuel pump module?
Yes. Check and clean the fuel tank before installing the module; an instruction sheet comes with the part.
Does Delphi FG1141 replace AE5Z 9H307-A?
Yes. AE5Z 9H307-A is one of the numbers Delphi FG1141 replaces, along with AE5Z 9H307-F and PFS-594.
