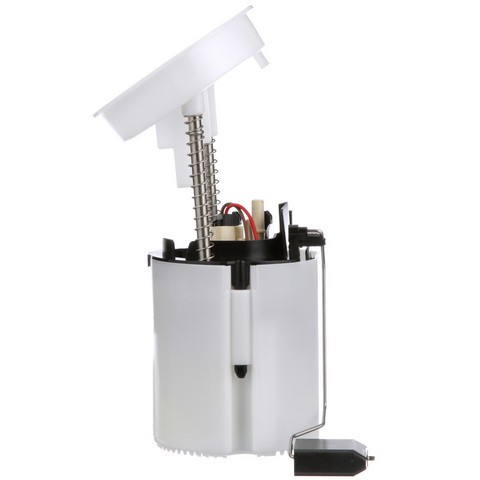

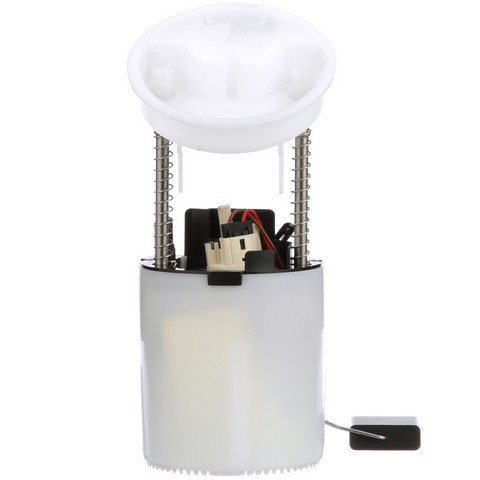

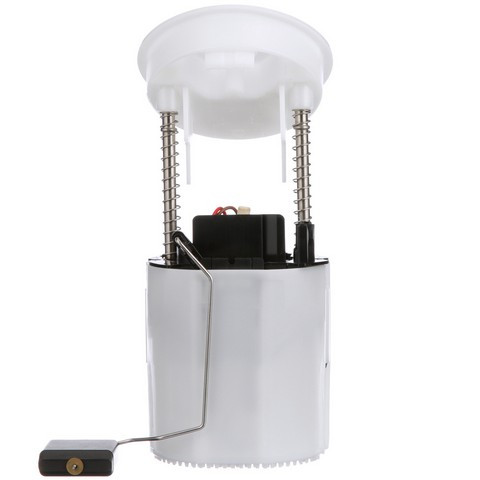

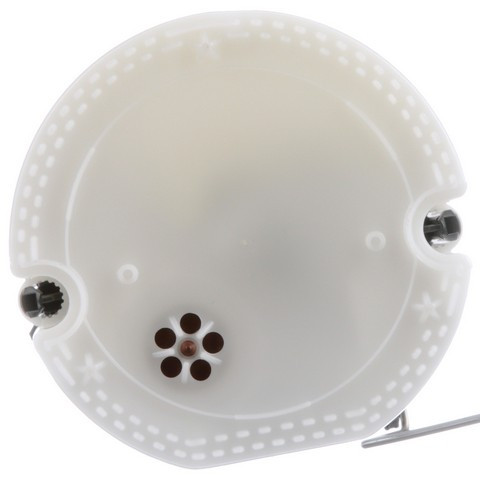

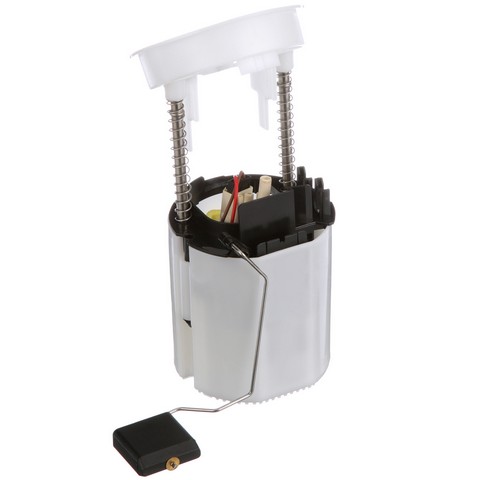

Right Fuel Pump Module for 2006-2009 Mercedes-Benz CLK350 & More - Delphi FG1240
Delphi FG1240 right fuel pump module for the 2006-2009 Mercedes-Benz CLK350 V6 3.5L and other vehicles delivers fuel from the tank to the engine. The module is built to Delphi's OE standards and comes with its float arm.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Module design built for durability and lower failure rates
Quick facts
- Part: Delphi FG1240 fuel pump module
- Also called: fuel pump assembly
- Fits: 2006-2009 Mercedes-Benz CLK350 V6 3.5L and other vehicles
- Position: Right
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the module is failing. Before you replace it, rule out a blown fuse, a faulty relay or damaged wiring. The right side takes one module, and this listing is one; the left side takes its own part, ordered separately.
Fits
This right-side module is a direct-fit replacement for the 2006-2009 Mercedes-Benz CLK350 V6 3.5L, the 2006-2007 Mercedes-Benz C350 V6 3.5L and the 2003-2006 Mercedes-Benz CLK500 V8 5.0L.
Specifications
Fit and size
- Position: Right
- Quantity per application: 1
Build and materials
- Type: fuel pump module with float arm
- Condition: New
In the box
One fuel pump module with float arm and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- Use the instruction sheet that comes with the module for the installation steps.
Interchange: 209 470 01 94 · 209 470 02 94
4010405 · E8531M · DFG1240 · P76560M · A30340 · SP5065M · USEP8531M
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is the Delphi fuel pump module right for the 2003-2006 Mercedes-Benz CLK500 V8 5.0L?
Yes. Delphi FG1240 is a right-side fuel pump module listed for the 2003-2006 Mercedes-Benz CLK500 V8 5.0L, and the right position takes one.
Does this Delphi fuel pump module assembly come with the float arm?
Yes. Delphi FG1240 comes with its float arm and an instruction sheet.
How does the Delphi fuel module keep the gas gauge accurate?
Empty float height and float retention on this module match OE specifications, which is intended to give a correct gas gauge reading.
Is a fuel pump assembly the same thing as this right-side fuel pump module?
Yes. Both names describe the Delphi FG1240, which is made for the right position only.
Should the fuel tank be cleaned when installing the Delphi module?
Yes. Check and clean the fuel tank before the new module goes in; Delphi FG1240 also comes with an instruction sheet for the installation.
