Delphi Fuel Pump Module Assembly P/N:FG1251

Be the first to review this product
$311.99
WARNING:California Proposition 65▾
MPN: FG1251
UPC: 689604232187
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Delphi Fuel Pump Module Assembly P/N:FG1251
Delphi Fuel Pump Module Assembly P/N:FG1251
$311.99

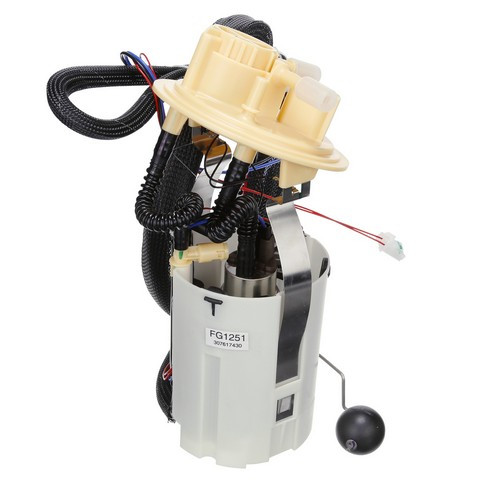

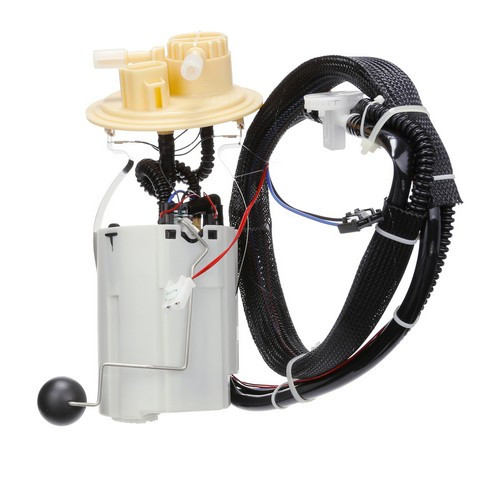

Restore steady fuel delivery with the Delphi fuel pump module assembly (MPN FG1251), an in-tank electric module that draws gasoline through its internal strainer and supplies the engine through quick-connect outlets. It drops in as a direct-fit replacement for the 2001-2002 Volvo S60 (L5-2.3L, L5-2.4L), 1999-2002 Volvo S80 (L6-2.8L, L6-2.9L), and 2001-2002 Volvo V70 (L5-2.3L, L5-2.4L).

  • Complete in-tank module: integrates the electric fuel pump, built-in pressure regulator, internal strainer, and float arm in a plastic housing with three outlets.
  • OE-matched gauge accuracy: empty float height and float retention are matched to OE specifications for correct fuel-gauge readings.
  • Easier on the electrical system: lower amperage draws less load on the vehicle's electrical system.
  • Validated fit: tested and matched to the right vehicle application for dependable operation.

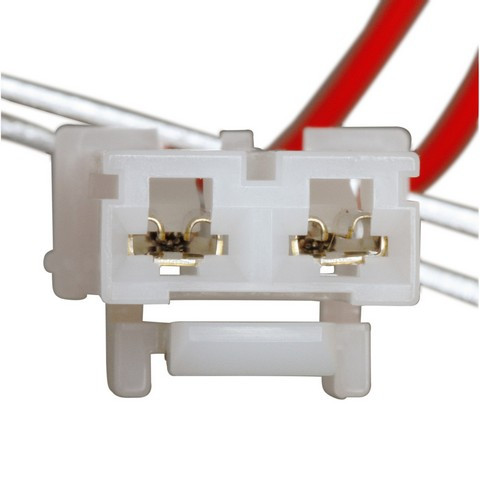

It ships with the float arm, seal, and instruction sheet, and uses two male blade terminals. Mounting hardware and a lock ring are not included — consult the vehicle service information for the correct fasteners and whether they may be reused. Delphi has built fuel delivery parts for over 80 years. Always check and clean the fuel tank before installing to avoid unnecessary returns.

Interchange: 30645538-0 · 30761743-0 · 31261128-0
4010211 · E8633M · DFG1251 · 69746 · P76363M · A41003 · SP5036M · USEP8633M · 30645538 · 30761743 · 31261128 · 306455380 · 307617430 · 312611280

This part cross-references / interchanges with the following part numbers:

4010211, E8633M, DFG1251, 69746, P76363M, A41003, SP5036M, USEP8633M, 30645538, 30645538-0, 30761743, 30761743-0, 31261128, 31261128-0

Frequently Asked Questions

Does this Delphi fuel pump module fit my Volvo?

It's a direct-fit replacement for the 2001-2002 Volvo S60 and V70 (L5-2.3L, L5-2.4L) and the 1999-2002 Volvo S80 (L6-2.8L, L6-2.9L). Check the Buyer's Guide tab to confirm your engine.

What's included with this fuel pump assembly?

The module ships with the float arm, seal, and instruction sheet, and integrates the electric pump, built-in pressure regulator, and internal strainer. Mounting hardware and a lock ring are not included.

Does this module have a built-in pressure regulator?

Yes — it includes an integrated pressure regulator and an internal strainer, and it is designed for gasoline in an in-tank installation.

What are signs this fuel pump module may need replacing?

Whining from the tank, long cranking or hard starts, sputtering under load, and loss of fuel pressure can point to a failing pump. Diagnose the cause before replacing.

Does it come with mounting hardware or a lock ring?

No. Mounting hardware and a lock ring are not included; a gasket/seal is included. Consult the vehicle service information for the correct fasteners and whether they may be reused.
