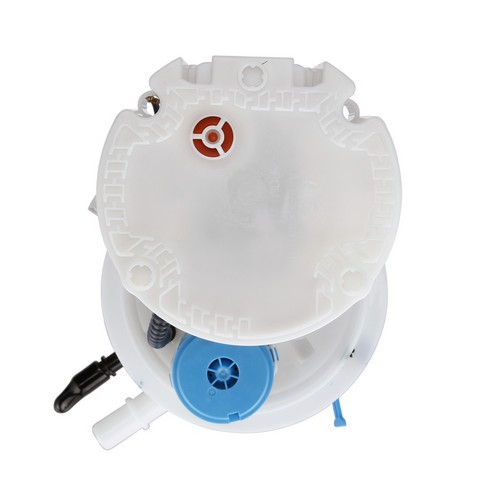

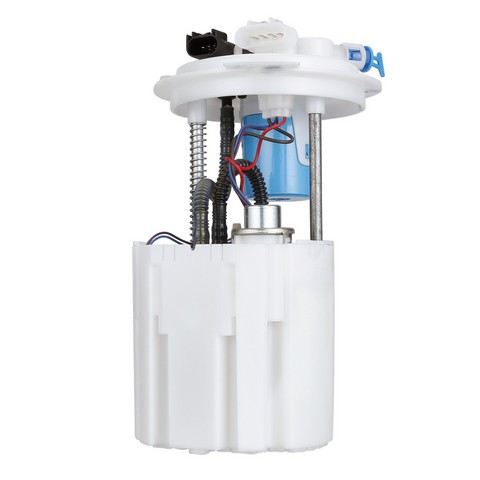

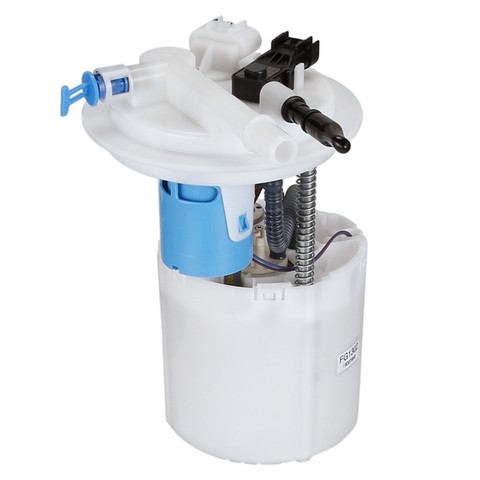

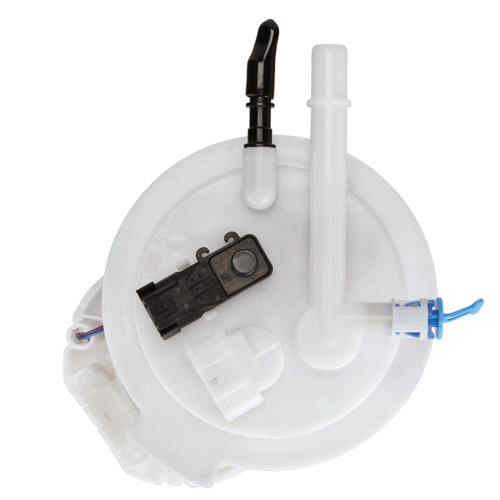

Delphi FG1302 fuel pump module for the 2008-2010 Chevrolet HHR 4-cylinder 2.0L sends fuel from the tank to the engine. This Delphi fuel pump module assembly is an electric in-tank unit that includes a regulator.
- Lower amperage draw puts less load on the vehicle's electrical system
- Empty float height and float retention are set to give a correct gas gauge reading
- Validated and tested, then matched to the vehicle application
- Internal inlet strainer with three quick-connect outlets
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1302 fuel pump module
- Also called: fuel pump assembly
- Fits: 2008-2010 Chevrolet HHR 4-cylinder 2.0L
- Material: Plastic housing
- Condition: New
When the fuel pump assembly in the tank wears out, you can notice hard starting, stalling or a whine from the tank. A blown fuse or damaged wiring can produce these symptoms too, so with the engine off, look over the fuse and the tank wiring first, and leave fuel pressure testing to a shop.
Fits
Delphi builds its fuel pumps to its OE standards, and this module is a direct-fit replacement for the 2008-2010 Chevrolet HHR 4-cylinder 2.0L, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminals: 4, male blade
- Connector: 1, oval, female
- Outlets: 3, quick connect
Build and materials
- Pump type: electric, in tank
- Fuel type: gas
- Housing material: Plastic
- Inlet: internal strainer
- Regulator: included
- Seal: included
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with a seal. The float arm, instruction sheet, mounting hardware and lock ring are not included, so plan on a new lock ring and hardware, since the old ones may not be reusable.
Installation notes
- Check and clean the fuel tank before installing the module.
Interchange: M10152 · MU2116 · 4011332 · E3804M · CFG1302 · P76284M · 19169144 · 19207956 · A30292 · SP6688M · USEP3804M
This part cross-references / interchanges with the following part numbers:
M10152, MU2116, 4011332, E3804M, CFG1302, P76284M, 19169144, 19207956, A30292, SP6688M, USEP3804M
Frequently Asked Questions
Does the Delphi FG1302 fit a 2008-2010 Chevrolet HHR 4-cylinder 2.0L?
Yes. Delphi FG1302 is a fuel pump module for the 2008-2010 Chevrolet HHR 4-cylinder 2.0L, and that engine takes one.
Does the Delphi fuel module FG1302 come with a float arm and lock ring?
No. The FG1302 comes with a seal, but the float arm, lock ring, mounting hardware and instruction sheet are not included.
What kind of pump and fuel does this fuel pump module use?
This module has an electric, in-tank pump for gas. It includes a regulator, an internal strainer on the inlet and three quick-connect outlets.
Could a whine from the tank mean this fuel pump module is going bad?
It can, and hard starting or stalling can mean the same, but other fuel-system faults cause these signs too. A shop can confirm with a fuel pressure test.
Should I clean the tank before fitting this Delphi module?
Yes. Check and clean the fuel tank before installing the Delphi FG1302.
