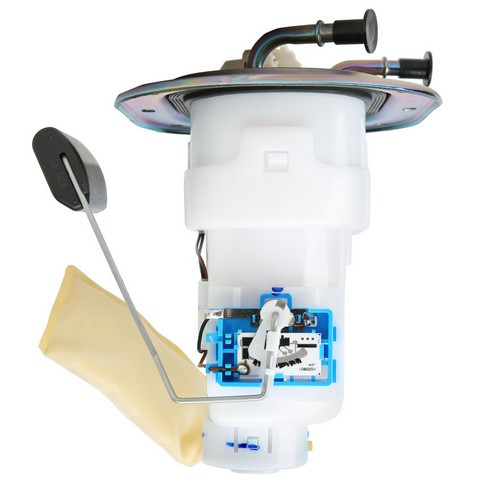

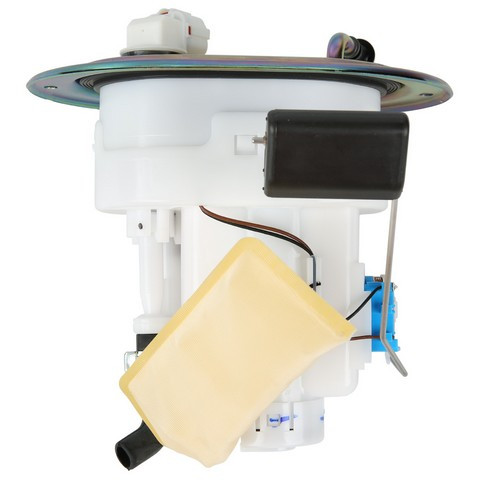

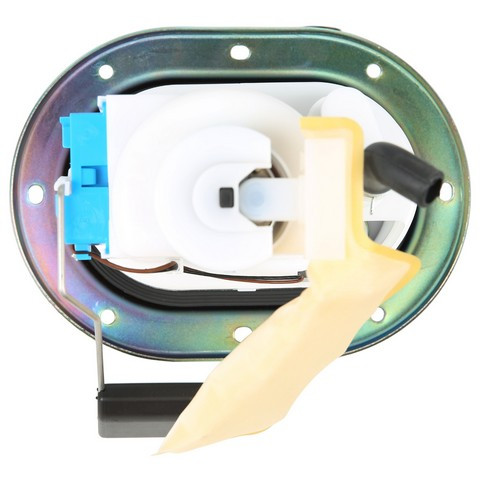

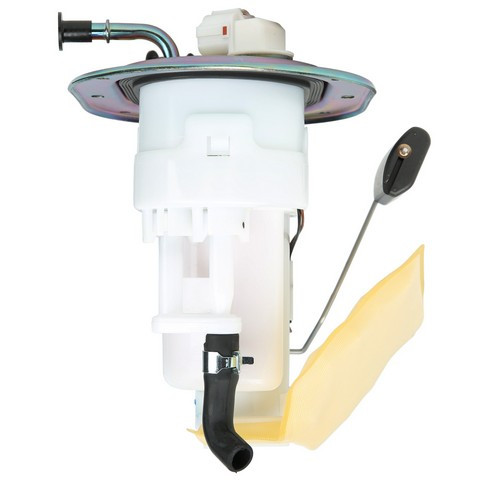

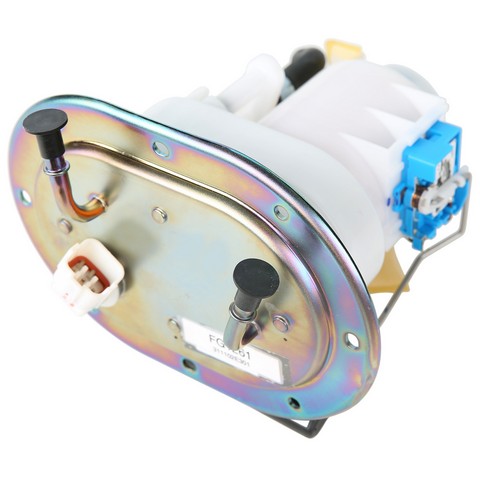

Delphi FG1261 fuel pump module for the 2005-2010 Kia Sportage 4-cylinder 2.0L and other vehicles is an in-tank module with an electric pump that sends fuel from the tank to the engine. Also called a fuel pump assembly, it includes a float arm, a regulator and a strainer.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right vehicle application
- Designed for lower failure rates
Quick facts
- Part: Delphi FG1261 fuel pump module
- Also called: fuel pump assembly
- Fits: 2005-2010 Kia Sportage 4-cylinder 2.0L and other vehicles
- Material: Plastic housing
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the pump or float arm is wearing out. Before you replace the module, rule out the fuel pump fuse, the relay and the wiring, since a fault in any of them can also stop the pump from running.
Fits
This module fits the 2005-2009 Hyundai Tucson 4-cylinder 2.0L and the 2005-2010 Kia Sportage 4-cylinder 2.0L. The 2005-2010 Kia Sportage 4-cylinder 2.0L takes one.
Specifications
Fit and size
- Type: In tank
- Quantity per vehicle: 1

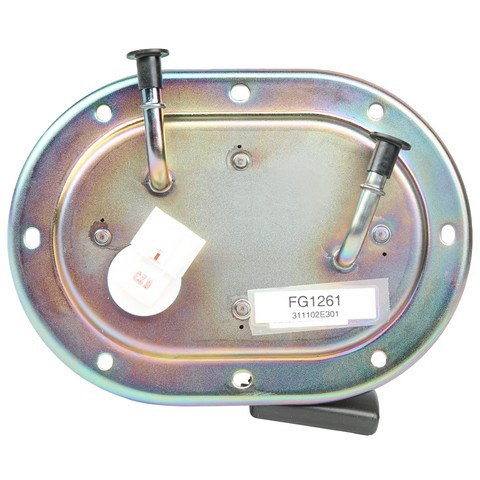

- Outlets: 2, quick connect
- Terminals: 5, male blade

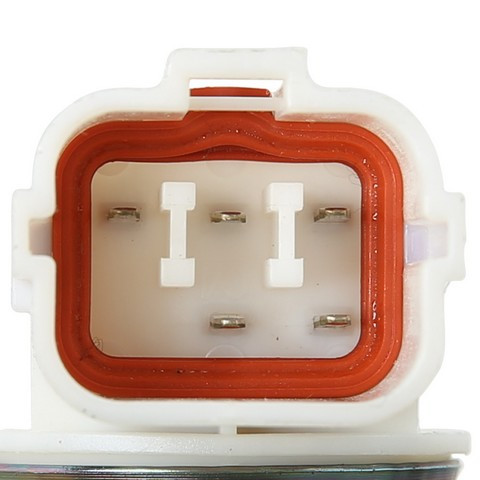

- Connector: 1, rectangular, female
- Strainer: External
Build and materials
- Pump: Electric, for gas
- Housing material: Plastic
- Regulator: Included
- Gasket or seal: Included
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with float arm and an instruction sheet. Mounting hardware and a lock ring are not included, so plan on new ones.
Installation notes
- The instruction sheet in the box gives the steps.
- Check and clean the fuel tank before installing the module.
Interchange: 951-0007 · 31110-2E300 · 31110-2E301 · 31110-2E400 · 31110-3E300
4010541 · E8677M · CFG1261 · 67923 · P76144 · P76532M · A30325 · C0647M · SP3019M
This part cross-references / interchanges with the following part numbers:
4010541, E8677M, CFG1261, 67923, P76144, P76532M, 951-0007, 31110-2E300, 31110-2E301, 31110-2E400, A30325, 31110-3E300, C0647M, SP3019M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2005-2009 Hyundai Tucson 4-cylinder 2.0L?
Yes. Delphi FG1261 fits the 2005-2009 Hyundai Tucson 4-cylinder 2.0L, as well as the 2005-2010 Kia Sportage 4-cylinder 2.0L.
What comes with the Delphi fuel pump module?
Delphi FG1261 comes with the float arm, a gasket or seal, a regulator, a strainer and an instruction sheet. Mounting hardware and a lock ring are not included.
Is the Delphi fuel module an in-tank pump?
Yes. This fuel pump module is an in-tank unit with an electric pump for gas, two quick-connect outlets and an external strainer.
How does the Delphi module's float arm affect the gas gauge?
On this module, empty float height and float retention match OE specifications, which supports a correct gas gauge reading.
Does Delphi FG1261 replace number 31110-2E300?
Yes. Delphi FG1261 replaces 31110-2E300, one of the numbers on the Interchange line.
