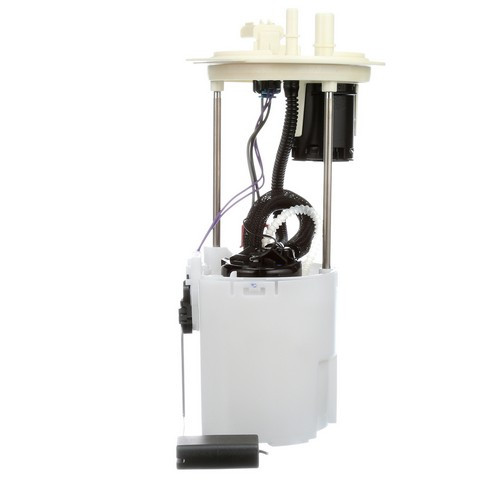

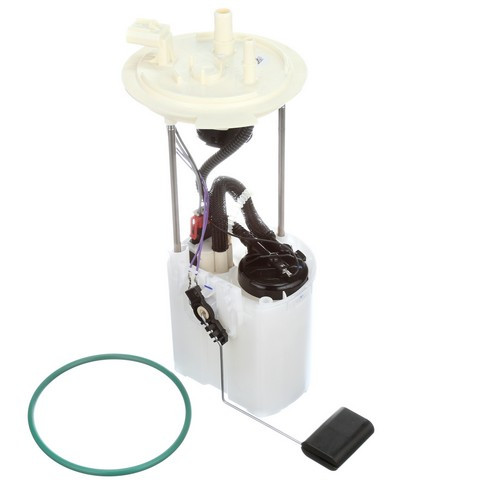

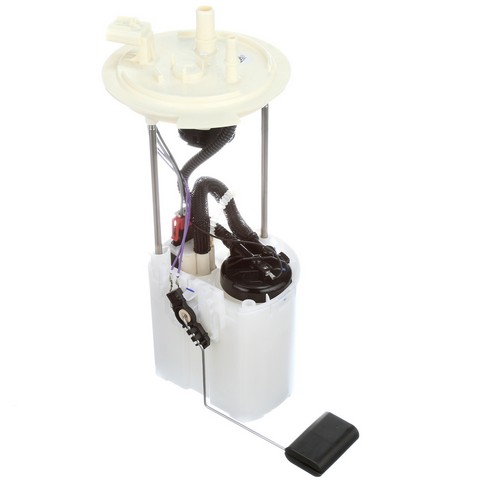

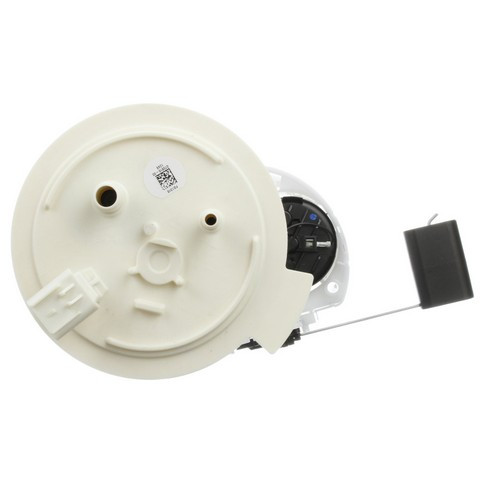

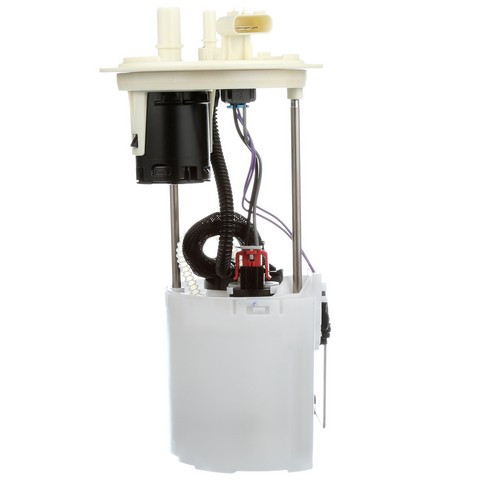

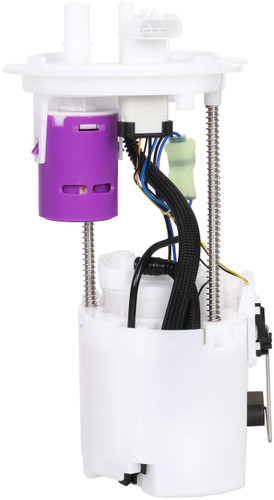

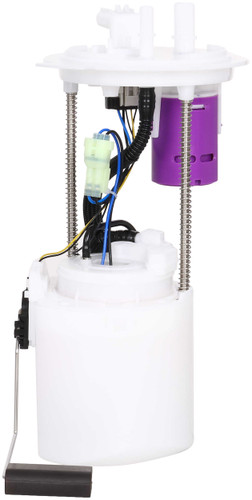

Delphi FG1315 fuel pump module for the 2009-2010 Ford F-150 V8 4.6L or 5.4L and the 2011-2014 F-150 V6 3.7L or V8 5.0L moves fuel from the tank toward the engine. The Delphi fuel pump module assembly, also called a fuel pump assembly, comes with its float arm and seal.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested, then matched to the right application
- Designed for lower failure rates
Quick facts
- Part: Delphi FG1315 fuel pump module
- Also called: fuel pump assembly
- Fits: 2009-2010 Ford F-150 V8 4.6L or 5.4L and the 2011-2014 F-150 V6 3.7L or V8 5.0L
- Condition: New
A weak fuel pump module can show up as hard starting, sputtering under load or a gauge that reads wrong, but other fuel and electrical faults can produce those signs too. Before replacing it, look over the fuse and the wiring connector with the engine off; a fuel pressure test is a job for a shop.
Fits
This listing is one module. The 2009-2010 Ford F-150 V8 4.6L or 5.4L and the 2011-2014 F-150 V6 3.7L or V8 5.0L take one each.
Specifications
- Quantity per vehicle: 1
- Float arm: included
- Seal: included
- Condition: New
In the box
One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 9L3Z 9A299-E · 9L3Z 9H307-E · PFS-489 · PS-344
4010719 · E2541M · DFG1315 · F1552A · M3520829 · P76467M · C0134M · A42031 · SP2095M · USEP2541M
This part cross-references / interchanges with the following part numbers:
4010719, E2541M, DFG1315, F1552A, M3520829, P76467M, 9L3Z 9A299-E, 9L3Z 9H307-E, PFS-489, PS-344, C0134M, A42031, SP2095M, USEP2541M
Frequently Asked Questions
Will the Delphi fuel pump module fit the 2011-2014 Ford F-150 V6 3.7L?
Yes. Delphi FG1315 fits the 2011-2014 Ford F-150 V6 3.7L or V8 5.0L, and the 2009-2010 F-150 with the V8 4.6L or 5.4L.
Does the Delphi fuel module come with the float arm and a seal?
Yes. The Delphi FG1315 comes with its float arm, a seal and an instruction sheet.
How does this Delphi module keep the fuel gauge reading correct?
This module's empty float height and float retention match OE specifications for a correct gas gauge reading.
Can hard starting or a wrong gauge reading mean the fuel pump module needs replacing?
Yes, they can be signs of a weak module. A shop can run a fuel pressure test to confirm it before anything is replaced.
What should be done to the tank before installing the FG1315?
Check and clean the fuel tank before the new module goes in. The instruction sheet that comes with it covers the installation steps.
