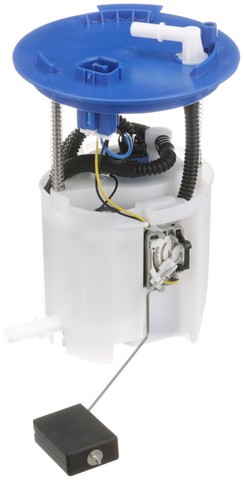

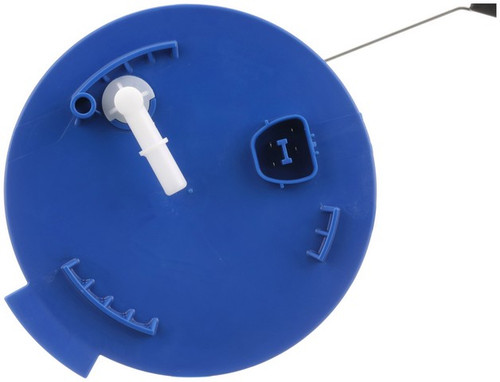

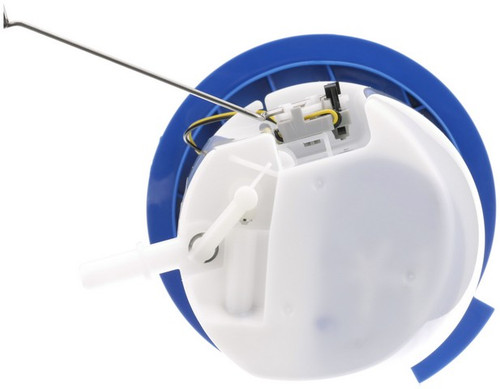

Delphi FG1325 left fuel pump module for the 2010-2012 Ford Fusion V6 3.0L and other vehicles pumps fuel from the tank and carries the float arm for the fuel gauge. This Delphi fuel pump module, also called a fuel pump assembly, is built to OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability intended to lower failure rates
Quick facts
- Part: Delphi FG1325 fuel pump module
- Also called: fuel pump assembly
- Fits: 2010-2012 Ford Fusion V6 3.0L and other vehicles
- Position: Left
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can mean the pump or float arm is wearing out. A clogged fuel filter, a weak pressure regulator or debris in the tank can produce these symptoms as well, so find the cause before buying.
Fits
This fuel pump module fits the 2010-2012 Ford Fusion V6 3.0L and the 2010-2011 Mercury Milan V6 3.0L, and the quantity for the left position is one on each.
Specifications
Fit and size
- Position: Left
- Quantity per application: 1
Build and materials
- Condition: New
- Float arm: included
- Seal: included
In the box
One fuel pump module with float arm, one seal and one instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- Follow the instruction sheet for the installation steps.
Interchange: AE5Z 9H307-K · PFS-599
E2560M · E2572M · CFG1325 · P76586M · C0143M · A41501 · SP2538M · USEP2560M
This part cross-references / interchanges with the following part numbers:
E2560M, E2572M, CFG1325, P76586M, AE5Z 9H307-K, PFS-599, C0143M, A41501, SP2538M, USEP2560M
Frequently Asked Questions
Does the Delphi FG1325 fit the 2010-2011 Mercury Milan V6 3.0L?
Yes. Delphi FG1325 is a left fuel pump module for the 2010-2011 Mercury Milan V6 3.0L and the 2010-2012 Ford Fusion V6 3.0L, with a quantity of one for the left position.
What comes with the Delphi fuel pump module assembly?
The Delphi FG1325 comes with the fuel pump module, its float arm, a seal and an instruction sheet.
Does the Delphi fuel module read the gas gauge correctly?
Yes, that is the aim. Its empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
How much load does the Delphi module put on the electrical system?
This pump module has a lower amperage draw, so it places less load on the vehicle's electrical system.
What should I do before installing the Delphi FG1325?
Check and clean the fuel tank first, and follow the instruction sheet that comes with this pump module.
