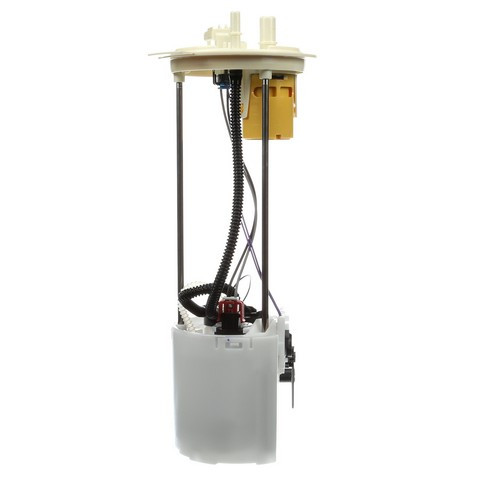

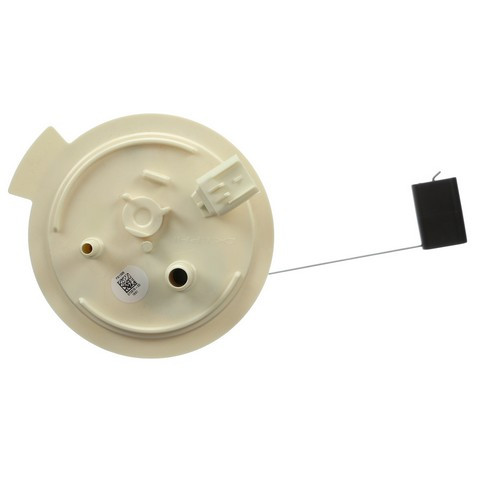

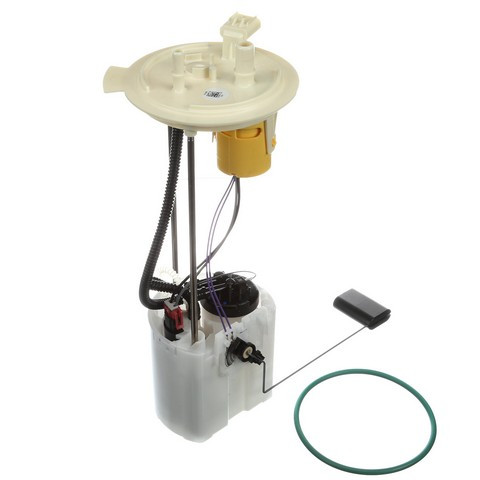

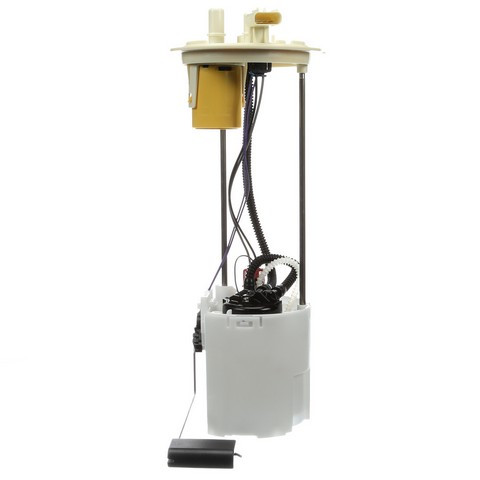

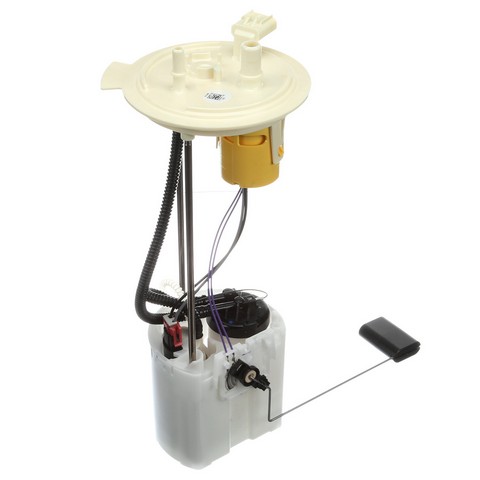

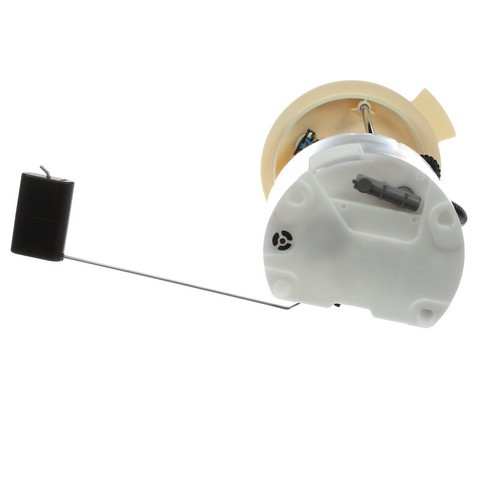

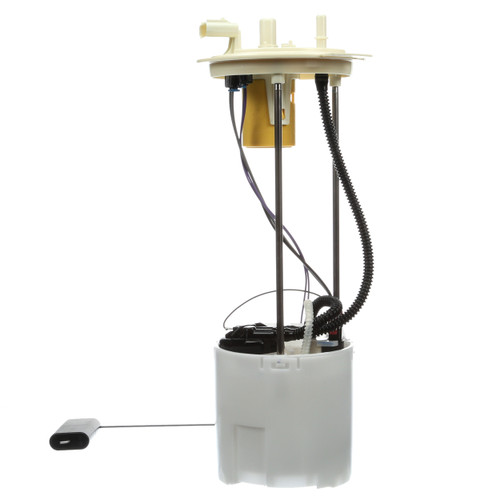

Delphi FG1326 fuel pump module for the 2011-2016 Ford F-250 Super Duty V8 6.2L and other vehicles pumps fuel from the tank to the engine. Also called a fuel pump assembly, it is built to Delphi's OE standards.
- Empty float height and float retention are set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested to suit its vehicle application
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1326 fuel pump module
- Also called: fuel pump assembly
- Fits: 2011-2016 Ford F-250 Super Duty V8 6.2L and other vehicles
- Condition: New
Hard starting, stalling or a fuel gauge that reads wrong can point to a failing pump module, though other fuel system problems can look the same. Before you order, look at the fuel pump fuse with the engine off, and leave any test that needs the engine running or an open fuel line to a shop.
Fits
This module fits the 2011-2016 Ford F-250 Super Duty V8 6.2L and the 2011-2016 Ford F-350 Super Duty V8 6.2L.
Specifications
Fit and size
- Engine: V8-6.2L
- Quantity per vehicle: 1
Build and materials
- Condition: New
- Float arm: included
- Seal: included
- Empty float height and float retention: match OE specifications
In the box
One fuel pump module with its float arm and seal, plus an instruction sheet. This listing is a single module, and these trucks take one.
Installation notes
- An instruction sheet comes with the module for the installation steps.
- Check and clean the fuel tank before installing the module.
Interchange: BC3Z 9A299-E · BC3Z 9A299-H · BC3Z 9H307-D · PFS-600 · PS-601
4010767 · E2582M · EFG1326 · F1593A · P76865M · C0153M · A33193 · SP2474M · USEP2582M
This part cross-references / interchanges with the following part numbers:
4010767, E2582M, EFG1326, F1593A, P76865M, BC3Z 9A299-E, BC3Z 9A299-H, BC3Z 9H307-D, PFS-600, PS-601, C0153M, A33193, SP2474M, USEP2582M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2011-2016 Ford F-250 Super Duty V8 6.2L?
Yes. Delphi FG1326 is listed for the 2011-2016 Ford F-250 Super Duty V8 6.2L, and that truck takes one module.
Is the Delphi fuel module right for the 2011-2016 Ford F-350 Super Duty V8 6.2L?
Yes. Delphi FG1326 is listed for the 2011-2016 Ford F-350 Super Duty V8 6.2L as well, and that truck takes one module.
Does this Delphi fuel pump module come with a float arm and seal?
Yes. The module comes with its float arm and seal, plus an instruction sheet.
Does the Delphi module match the original float height for the fuel gauge?
Yes. This fuel pump module's empty float height and float retention match OE specifications for a correct gas gauge reading.
Does number BC3Z 9A299-E interchange with the Delphi FG1326?
Yes. BC3Z 9A299-E is one of the interchange numbers listed for Delphi FG1326, along with BC3Z 9A299-H and BC3Z 9H307-D.
