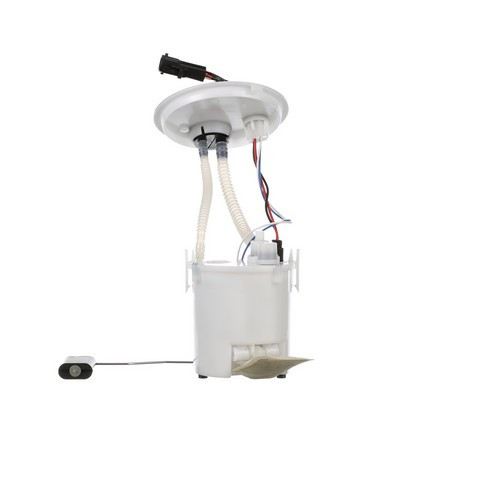

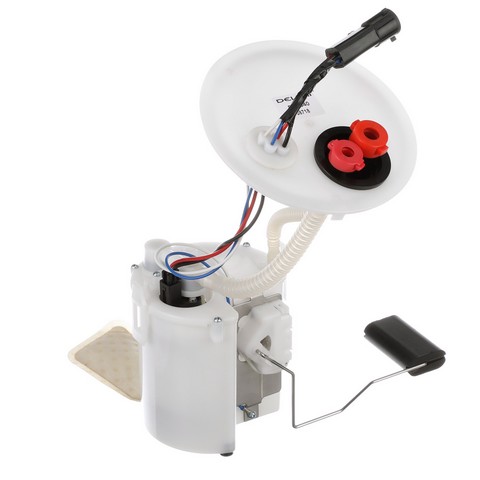

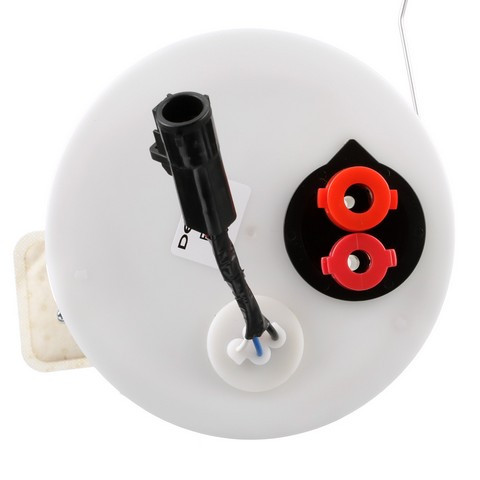

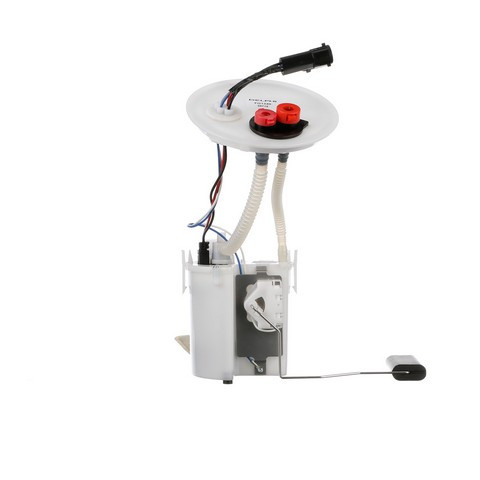

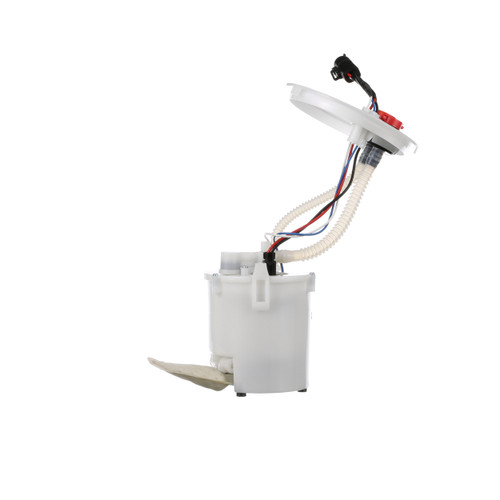

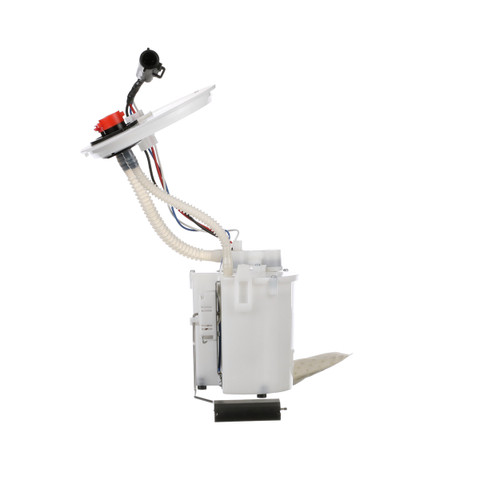

Delphi FG1340 right fuel pump module for the 2000-2002 Lincoln LS V6 3.0L or V8 3.9L and other vehicles moves fuel from the tank to the engine and carries the float arm for the gas gauge. Also called a fuel pump assembly, it is built to Delphi's OE standards.
- Empty float height and float retention match specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested part
- Design and durability aimed at a lower failure rate
Quick facts
- Part: Delphi FG1340 fuel pump module
- Also called: fuel pump assembly
- Fits: 2000-2002 Lincoln LS V6 3.0L or V8 3.9L and other vehicles
- Position: Right
- Condition: New
A gauge that reads wrong, hard starting or stalling can mean the module is wearing out. Before replacing it, look over the fuel pump fuse and wiring connector with the ignition off, since a blown fuse or damaged connector can also stop the pump. A shop can run any fuel pressure test.
Fits
This right-side module is a direct-fit replacement for the 2000-2002 Lincoln LS V6 3.0L or V8 3.9L, the 2000-2002 Jaguar S-Type V6 3.0L or V8 4.0L and the 2002 Ford Thunderbird V8 3.9L.
Specifications
Fit and size
- Position: Right
- Quantity per vehicle: 1
Build and materials
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm, a seal and an instruction sheet. This listing is one module for the right side, and that side takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the installation steps.
Interchange: XW4Z 9H307-AA · YW4Z 9H307-BB · PFS-245
4010254 · E2314 · E2322M · CFG1340 · 67244 · P74937M · AFS0967P · RE0837S · C0784M · A30550 · E16028 · SP1134 · SP2322M · USEP2274M
This part cross-references / interchanges with the following part numbers:
4010254, E2314, E2322M, CFG1340, 67244, P74937M, AFS0967P, RE0837S, XW4Z 9H307-AA, YW4Z 9H307-BB, PFS-245, C0784M, A30550, E16028, SP1134, SP2322M, USEP2274M
Frequently Asked Questions
Does the Delphi FG1340 fit the 2002 Ford Thunderbird V8 3.9L?
Yes. The Delphi FG1340 is a right-side fuel pump module and fits the 2002 Ford Thunderbird V8 3.9L, which takes one.
What comes with this Delphi fuel pump module assembly?
The Delphi FG1340 includes the fuel pump module with its float arm, a seal and an instruction sheet.
Does the float on this Delphi fuel module match the original specification?
Yes. Empty float height and float retention match OE specifications, which supports a correct gas gauge reading.
Is the Delphi module tested for the vehicle it is sold for?
Yes. The part is validated, tested and matched to the right vehicle application. The Delphi FG1340 is the right-side module.
Should the tank be cleaned before installing this Delphi fuel pump module?
Yes. Check and clean the fuel tank first. The module comes with a seal and an instruction sheet for the steps.
