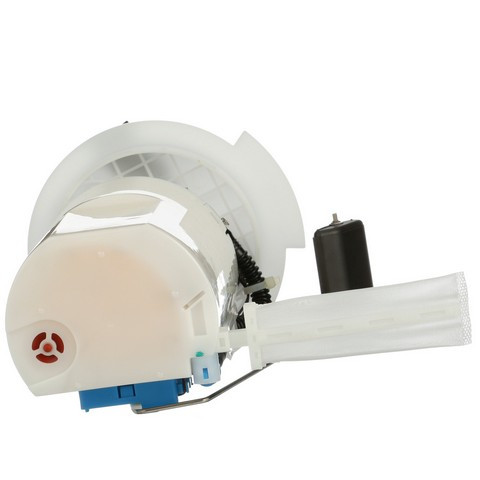

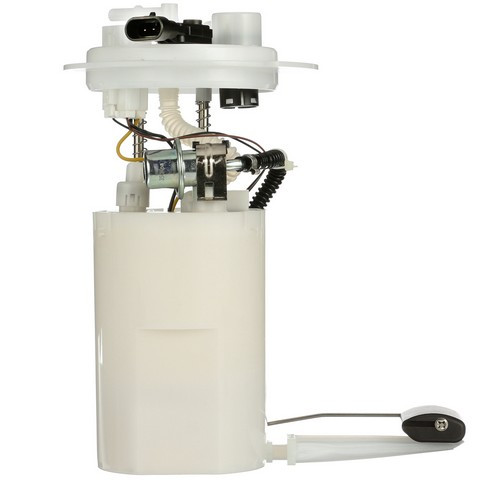

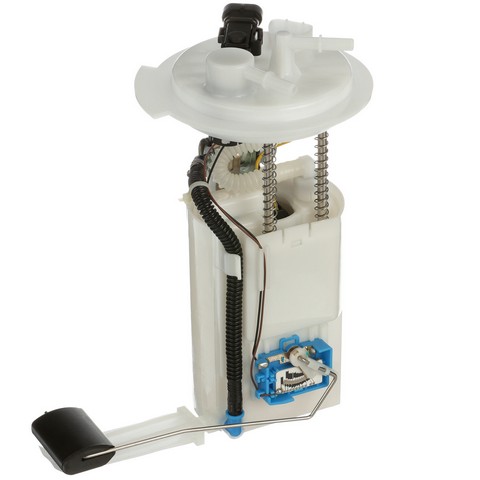

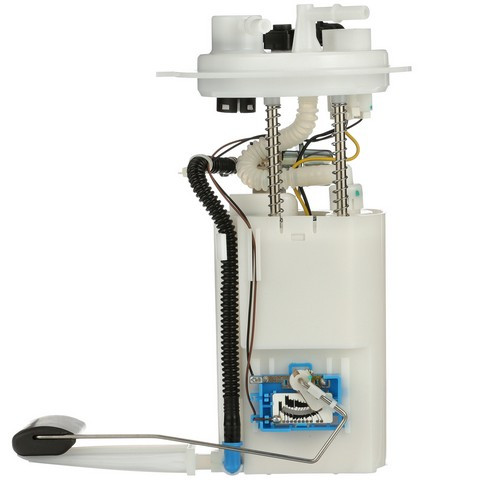

Delphi FG1346 fuel pump module for the 2006-2007 Hyundai Sonata 4-cylinder 2.4L, the 2006-2009 Sonata V6 3.3L and the 2009 Sonata 4-cylinder 2.4L delivers fuel from the tank to the engine. This Delphi fuel pump module assembly, also called a fuel pump assembly, is built to Delphi's OE standards, and its empty float height and float retention match OE specifications.
- Float height and float retention set for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Module validated and tested for its vehicle application
- Lower failure rates from the module's design and durability
Quick facts
- Part: Delphi FG1346 fuel pump module
- Also called: fuel pump assembly
- Fits: the 2006-2007 Hyundai Sonata 4-cylinder 2.4L, the 2006-2009 Sonata V6 3.3L and the 2009 Sonata 4-cylinder 2.4L
- Condition: New
A gas gauge that reads wrong, hard starting or sputtering under load can mean the pump or float arm is worn, though a bad fuel pump relay or a blown fuse can be behind the same signs. If the module is the cause, this one replaces the pump and float arm as one assembly.
Fits
This module fits the 2006-2007 Hyundai Sonata 4-cylinder 2.4L, the 2006-2009 Sonata V6 3.3L and the 2009 Sonata 4-cylinder 2.4L.
Specifications
- Quantity per vehicle: 1
- Engine codes: L4-2.4L, V6-3.3L
- Condition: New
In the box

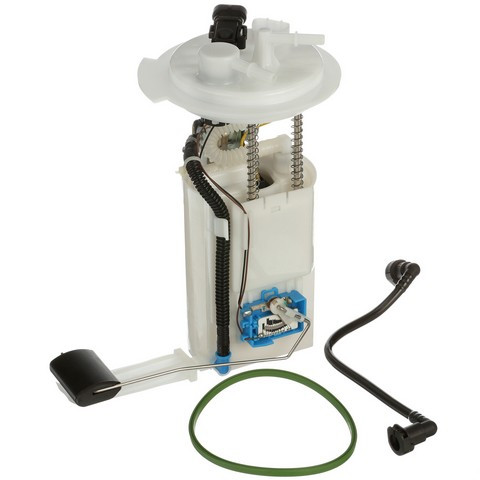

One fuel pump module with float arm, seal, fuel feed line and instruction sheet. This listing is one module, and the car takes one.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 951-0007 · 31110-3K600 · 31110-3K700
4010585 · E8335 · E8745M · E8804 · E8903M · CFG1346 · 69864 · P76144 · P76536M · P76616M · P76731M · AFS0894P · RE0894P · A30384 · A30399 · E16002 · C0715M · SP1126 · SP3005M · SP3016M · USEP8903M
This part cross-references / interchanges with the following part numbers:
4010585, E8335, E8745M, E8804, E8903M, CFG1346, 69864, P76144, P76536M, P76616M, P76731M, 951-0007, AFS0894P, RE0894P, 31110-3K600, 31110-3K700, A30384, A30399, E16002, C0715M, SP1126, SP3005M, SP3016M, USEP8903M
Frequently Asked Questions
Does the Delphi fuel pump module fit the 2006-2009 Hyundai Sonata V6 3.3L?
Yes. Delphi FG1346 fits the 2006-2009 Hyundai Sonata V6 3.3L. It also fits the 2006-2007 and 2009 Sonata with the 4-cylinder 2.4L.
What does the Delphi fuel module come with besides the pump?
Delphi FG1346 comes with a float arm, a seal, a fuel feed line and an instruction sheet.
Does the Delphi module match the original float height for the gas gauge?
Yes. The empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
Is there anything to do to the tank before fitting this fuel pump module?
Yes. Check and clean the fuel tank first, and follow the instruction sheet in the box for the installation steps.
Does this fuel pump module put much load on the electrical system?
No. This module's lower amperage draws less load on the vehicle's electrical system.
