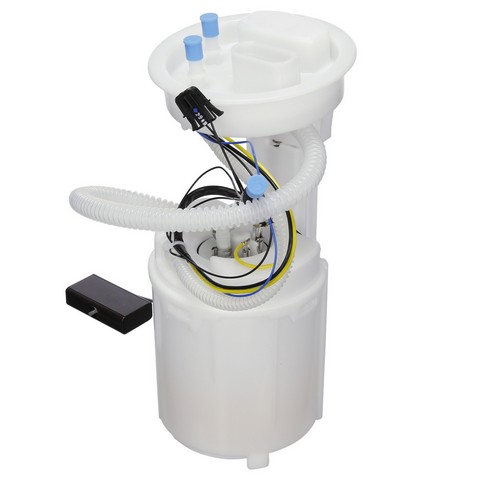

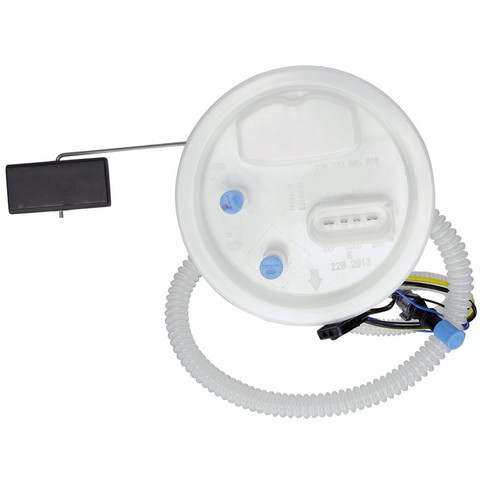

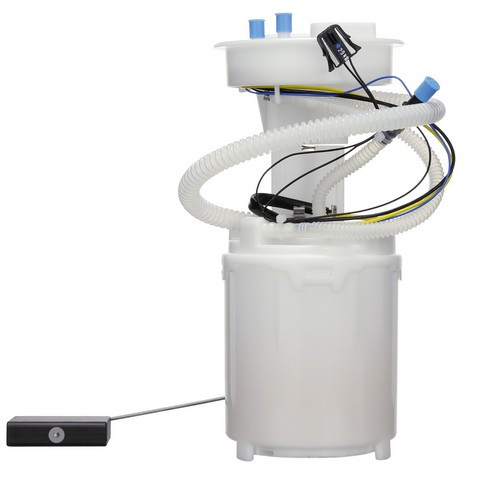

Delphi FG1410 right fuel pump module for the 2002-2006 Audi TT Quattro 4-cylinder 1.8L and the 2004-2006 TT Quattro V6 3.2L sends fuel from the tank to the engine. This Delphi fuel pump module assembly also carries the float arm that feeds the gas gauge, and it is built to Delphi's OE standards.
- Empty float height and float retention are held to specification for a correct gas gauge reading
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated and tested for the application it is matched to
- Design and durability aimed at lower failure rates
Quick facts
- Part: Delphi FG1410 fuel pump module
- Also called: fuel pump assembly
- Fits: 2002-2006 Audi TT Quattro 4-cylinder 1.8L and the 2004-2006 TT Quattro V6 3.2L
- Position: Right
- Condition: New
Before you replace the module, rule out wiring, a fuse or a relay, since hard starting, stalling or a gauge that reads wrong can have other causes. If the module is the cause, this one replaces it.
Fits
This module is a direct-fit replacement for the 2002-2006 Audi TT Quattro 4-cylinder 1.8L and the 2004-2006 TT Quattro V6 3.2L.
Specifications
Fit and size
- Position: Right
- Quantity per vehicle: 1
Build and materials
- Condition: New
- Float arm: included
In the box
One fuel pump module with float arm and one instruction sheet. This listing is one right-side module, and either engine version takes just one.
Installation notes
- An instruction sheet comes with the module for the installation steps.
- Check and clean the fuel tank during the job.
Interchange: 8L9 919 051 J
4011244 · CFG1410 · 69827 · P76315M · P77251M · A46512 · SP5083M · 228233005010Z
This part cross-references / interchanges with the following part numbers:
4011244, CFG1410, 69827, P76315M, P77251M, A46512, SP5083M, 228233005010Z, 8L9 919 051 J
Frequently Asked Questions
Will the Delphi fuel pump module FG1410 fit the 2002-2006 Audi TT Quattro 4-cylinder 1.8L?
Yes. Delphi FG1410 is the right-side module for the 2002-2006 Audi TT Quattro 4-cylinder 1.8L, and it also fits the 2004-2006 TT Quattro V6 3.2L.
Does the Delphi fuel module come with the float arm?
Yes. Delphi FG1410 comes as one fuel pump module with the float arm and an instruction sheet. This listing is a single module.
Is the float on the Delphi module made to OE specifications?
Yes. Its empty float height and float retention match OE specifications, which gives a correct gas gauge reading.
When a fuel pump assembly wears, what will I notice while driving?
Hard starting, stalling or a gas gauge that reads wrong can be signs of a worn module. A shop can test the pump to confirm.
Should I clean the fuel tank when installing the Delphi FG1410?
Yes. The fuel tank should be checked and cleaned during the job, and an instruction sheet comes with the module for the steps.
