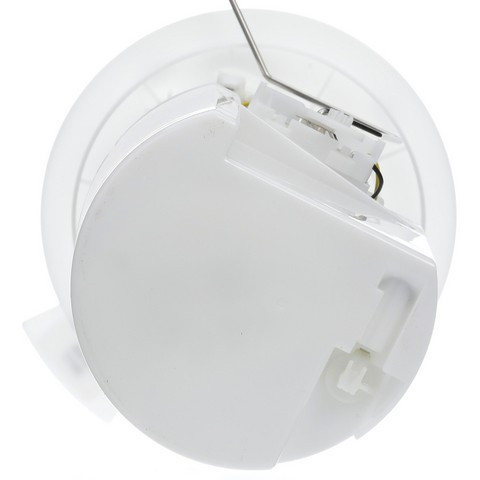

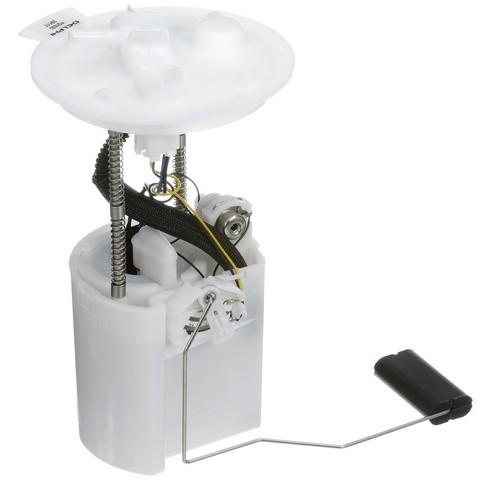

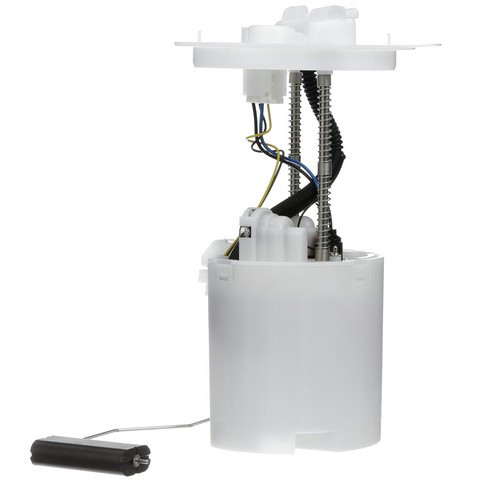

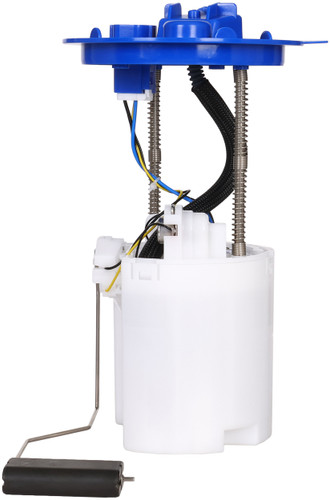

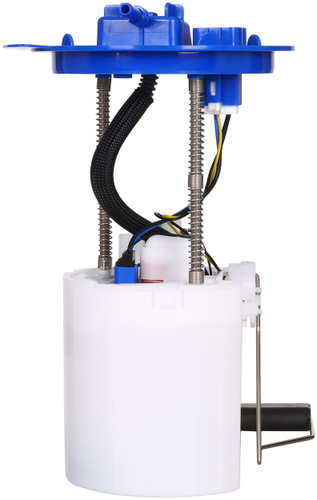

Delphi FG1530 fuel pump module for the 2013-2016 Ford Escape 4-cylinder 1.6L, the 2013-2019 Escape 4-cylinder 2.0L, the 2017-2019 Escape 4-cylinder 1.5L and other vehicles pumps fuel from the tank to the engine. Also called a fuel pump assembly, it is built to Delphi's OE standards.
- Empty float height and float retention set to match the specification for a correct gas gauge reading
- Lower amperage draws less load on the vehicle's electrical system
- Design and durability for lower failure rates
- Part is validated and tested
Quick facts
- Part: Delphi FG1530 fuel pump module
- Also called: fuel pump assembly
- Fits: 2013-2016 Ford Escape 4-cylinder 1.6L, the 2013-2019 Escape 4-cylinder 2.0L, the 2017-2019 Escape 4-cylinder 1.5L and other vehicles
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the pump module is worn, though a blown fuse or a bad fuel pump relay can lie behind them, so rule those out first.
Fits
In addition to the Ford runs above, it fits the 2015-2019 Lincoln MKC 4-cylinder 2.0L, which takes one. This listing is one module, matched to the right vehicle application.
Specifications
- Quantity per vehicle: 1
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with float arm, seal and instruction sheet.
Installation notes
- Check the fuel tank and clean it before installing the module.
- The instruction sheet that comes with the part covers the steps.
Interchange: CV6Z 9H307-H · CV6Z 9H307-K · CV6Z 9H307-P · GV6Z 9H307-B · GV6Z 9H307-D · PFS-1089 · PFS-1109 · PFS-1197
4010778 · E2598M · CFG1530 · 66097 · P76897M · C0159M · A33225 · SP2519M · USEP2598M
This part cross-references / interchanges with the following part numbers:
4010778, E2598M, CFG1530, 66097, P76897M, CV6Z 9H307-H, CV6Z 9H307-K, CV6Z 9H307-P, GV6Z 9H307-B, GV6Z 9H307-D, PFS-1089, PFS-1109, PFS-1197, C0159M, A33225, SP2519M, USEP2598M
Frequently Asked Questions
Does the Delphi fuel pump module assembly fit the 2017-2019 Ford Escape 4-cylinder 1.5L?
Yes. Delphi FG1530 fits the 2017-2019 Ford Escape 4-cylinder 1.5L, and the 2015-2019 Lincoln MKC 4-cylinder 2.0L takes it too.
Does the Delphi fuel module come with a float arm and seal?
Yes. Delphi FG1530 comes with the float arm, a seal and an instruction sheet.
Does the Delphi fuel pump module match the float height needed for a correct gas gauge?
Yes. This module's empty float height and float retention match OE specifications, which guarantees a correct gas gauge reading.
What does the lower amperage on this Delphi module do for the electrical system?
The lower amperage means Delphi FG1530 pulls less current, so it puts less load on the vehicle's electrical system.
Does Delphi FG1530 replace the CV6Z 9H307-H number?
Yes. CV6Z 9H307-H is one of the interchange numbers listed for Delphi FG1530, along with the other cross-references on the page.
