Delphi Fuel Pump Module Assembly P/N:FG1307

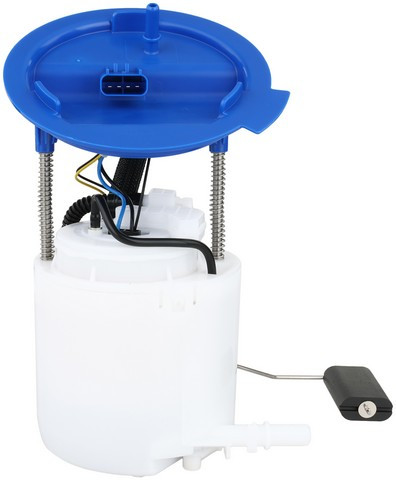

Delphi FG1557 left fuel pump module for the 2011-2014 Ford Mustang V6 3.7L or V8 5.0L moves fuel from the tank to the engine. This Delphi fuel pump module assembly is an electric, in-tank unit with a float arm and an internal strainer.
Long cranking, stalling or a whine from the tank can have several causes. Before you replace the module, rule out the pump fuse and relay, the wiring and the connectors. The left side takes one module.
This module fits the 2011-2014 Ford Mustang with the V6 3.7L or the V8 5.0L engine. Delphi builds its fuel pumps to its OE standards, and the empty float height and float retention match OE specifications.
Fit and size
Build and materials

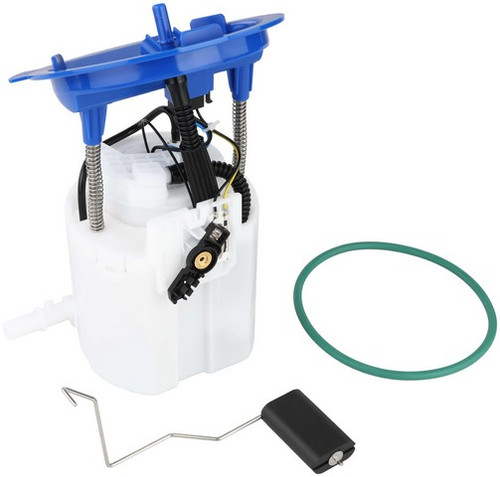

One fuel pump module with float arm, a gasket or seal and one instruction sheet. Mounting hardware and a lock ring are not included, so plan on new ones rather than reusing the old.
Interchange: BR3Z 9A299-A · BR3Z 9A299-B · BR3Z 9H307-B · CR3Z 9H307-A · CR3Z 9H307-B · PFS-952 · PS-941
4011469 · E2589M · CFG1557 · P76856M · C0156M · A33185 · SP2468M · USEP2589M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is this Delphi fuel module right for the 2011-2014 Ford Mustang V6 3.7L or V8 5.0L?
Yes. Delphi FG1557 is a left-side fuel pump module for the 2011-2014 Ford Mustang with the V6 3.7L or the V8 5.0L.
Does the Delphi module come with the float arm and a lock ring?
Yes, the float arm is included. A lock ring and mounting hardware are not; the box has the module, a gasket or seal and an instruction sheet.
Is this fuel pump assembly an electric in-tank pump?
Yes. Delphi FG1557 is an electric pump that sits in the tank, with an internal strainer, a regulator and one quick-connect outlet.
Can a failing fuel pump module make the gas gauge read wrong?
Yes, it can. The float arm is part of this module, so a worn or damaged arm can throw off the reading, though a wrong reading can have other causes too.
Do I need to clean the tank before installing the Delphi FG1557?
Yes. Check and clean the fuel tank first, and use the instruction sheet that comes with Delphi FG1557 for the installation steps.
