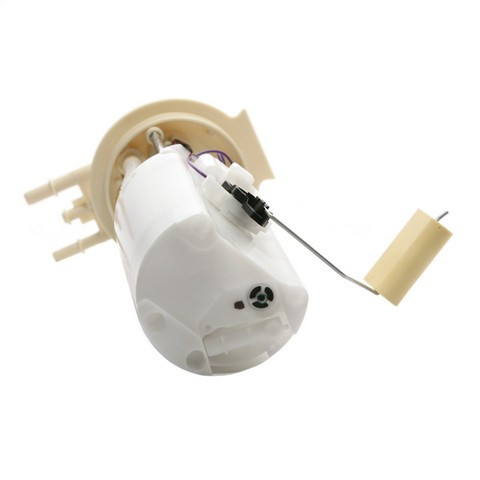

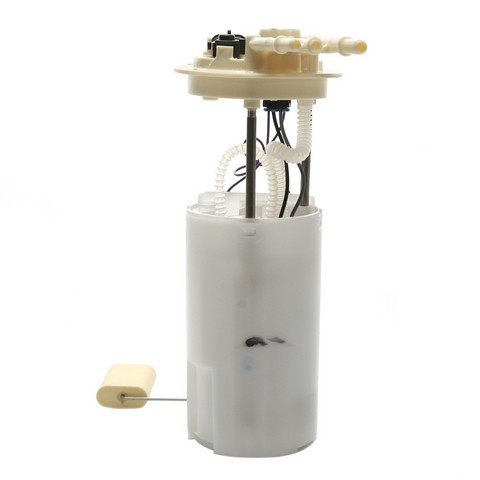

Delphi FG0269 fuel pump module for the 2002-2003 Chevrolet Venture V6 3.4L and other vehicles moves fuel from the tank to the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.
- Lower amperage draw, so less load on the vehicle's electrical system
- Empty float height and float retention set for a correct gas gauge reading
- Validated, tested and matched to the right vehicle application
- Design and durability intended to cut failure rates
Quick facts
- Part: Delphi FG0269 fuel pump module
- Also called: fuel pump assembly
- Fits: 2002-2003 Chevrolet Venture V6 3.4L and other vehicles
- Condition: New
Hard starting, sputtering under load or an erratic fuel gauge can mean this module is worn. A clogged fuel filter or a bad pump relay can also be behind them, so find the cause before you replace it.
Fits
It fits the 2002-2003 Chevrolet Venture V6 3.4L, the 2002-2003 Oldsmobile Silhouette V6 3.4L and the 2002-2003 Pontiac Montana V6 3.4L, and each takes one module.
Specifications
- Quantity per vehicle: 1
- Engine: V6 3.4L
- Condition: New
In the box

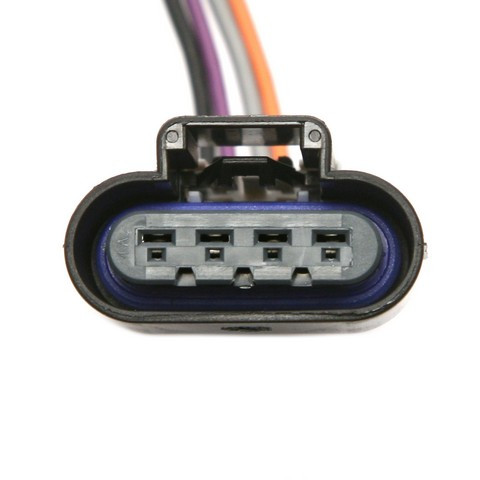

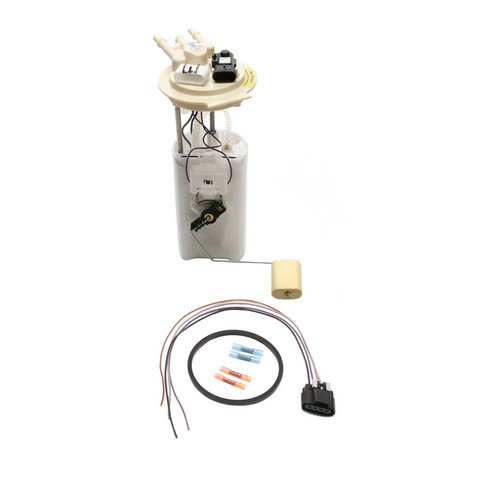

One fuel pump module with float arm, seal, splice kit and instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet in the box covers the steps.
Interchange: 953-5102 · 402-P3552M
MU1084 · MU1799 · 4010341 · E3552M · DFG0269 · F2563A · 67455 · M2246730 · P74989M · AFS0831S · RE0831S · 19180126 · 19331298 · 25329440 · 25344964 · 1AMFP00154 · C0197M · A30124 · SP61084M · SP61161M · USEP3552M
This part cross-references / interchanges with the following part numbers:
MU1084, MU1799, 4010341, E3552M, DFG0269, F2563A, 67455, M2246730, P74989M, 953-5102, AFS0831S, RE0831S, 19180126, 19331298, 25329440, 25344964, 1AMFP00154, C0197M, 402-P3552M, A30124, SP61084M, SP61161M, USEP3552M
Frequently Asked Questions
Is the Delphi FG0269 right for the 2002-2003 Pontiac Montana V6 3.4L?
Yes. Delphi FG0269 fits the 2002-2003 Pontiac Montana V6 3.4L, and that vehicle takes one module.
Does the Delphi module come with a float arm and seal?
Yes. The Delphi FG0269 comes with the float arm, a seal, a splice kit and an instruction sheet.
Does the Delphi fuel module help the gas gauge read correctly?
This fuel pump module's empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
Do I need to clean the tank when fitting the Delphi fuel pump module?
Yes. Check and clean the fuel tank before installing this module. The instruction sheet that comes with it covers the steps.
Is 953-5102 the same as this fuel pump assembly?
953-5102 is one of the numbers Delphi FG0269 replaces, and the other cross-reference numbers are on the Interchange line.
