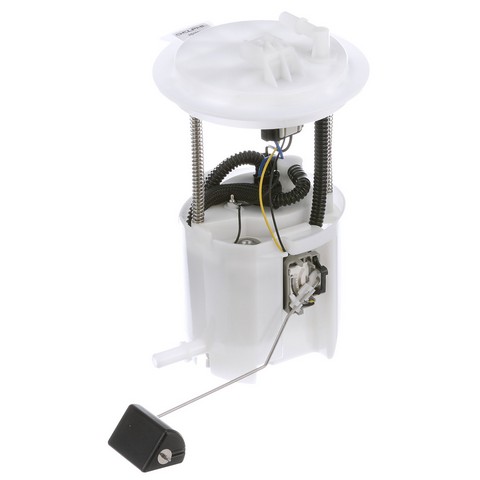

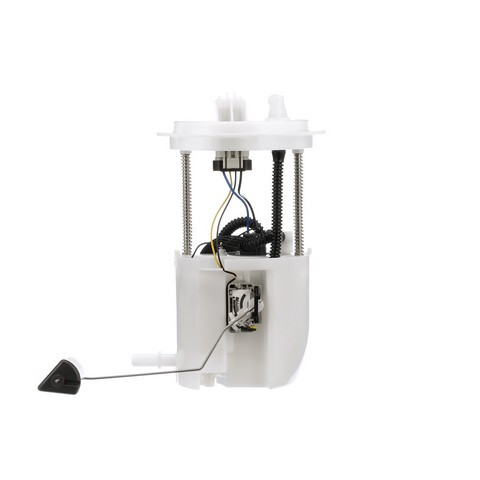

Left Fuel Pump Module for 2009-2019 Dodge Journey - Delphi FG1563

Delphi FG1563 left fuel pump module for the 2009-2010 Dodge Journey V6 3.5L and the 2011-2019 Journey V6 3.6L moves fuel from the tank toward the engine. This Delphi fuel pump module assembly is built to Delphi's OE standards.

• Empty float height and float retention are set for correct gas gauge readings
• Lower amperage draw puts less load on the vehicle's electrical system
• Validated and tested, then matched to the right application
• Design and durability aimed at lower failure rates

Quick facts

• Part: Delphi FG1563 fuel pump module
• Also called: fuel pump assembly
• Fits: 2009-2010 Dodge Journey V6 3.5L and the 2011-2019 Journey V6 3.6L
• Position: Left
• Condition: New

Hard starting, sputtering under load or an erratic fuel gauge can mean the fuel pump assembly is wearing out. These signs alone do not prove the module is the problem, since a blown fuel pump fuse or relay can produce some of them. This listing is one module, and the left position takes one.

Fits

This module is a direct-fit replacement for the 2009-2010 Dodge Journey V6 3.5L and the 2011-2019 Dodge Journey V6 3.6L.

Specifications

In the box

One fuel pump module with its float arm, a seal and an instruction sheet.

Installation notes

• Check and clean the fuel tank before installing the module.
• The instruction sheet that comes with the part covers the steps.

Interchange: 6803 8901AA · 6803 8901AB · 6803 8901AC · 6803 8901AE
4010968 · E7255M · CFG1563 · P76742M · 68038901AD · 68038901AF · C0518M · A33133 · SP1381 · SP7198M · USEP7255M
