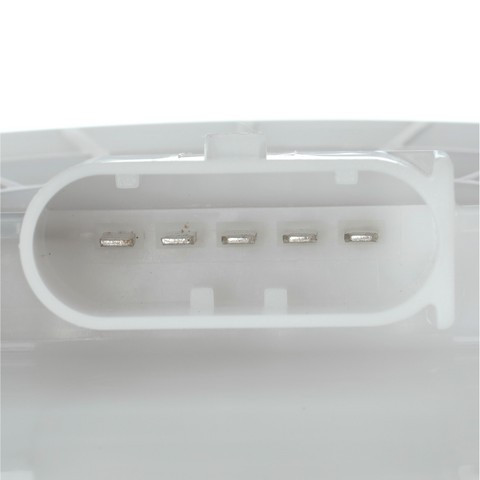

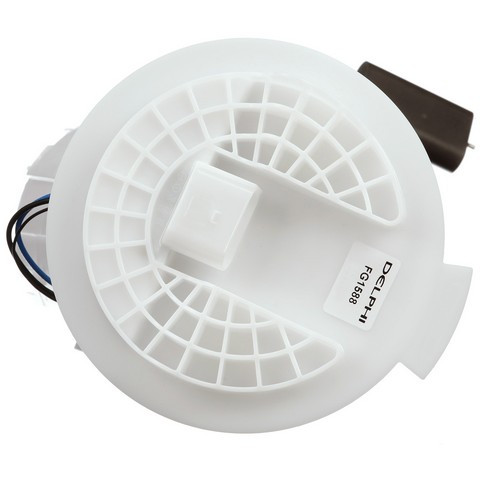

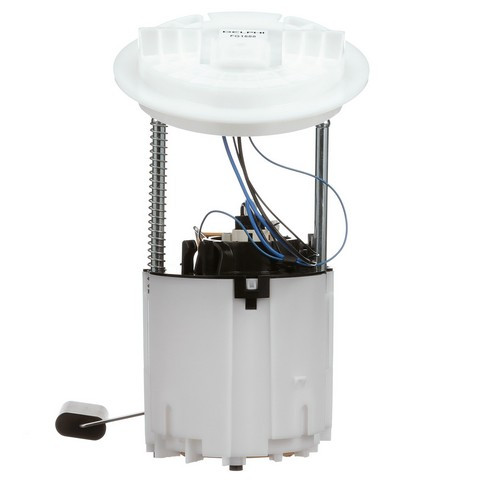

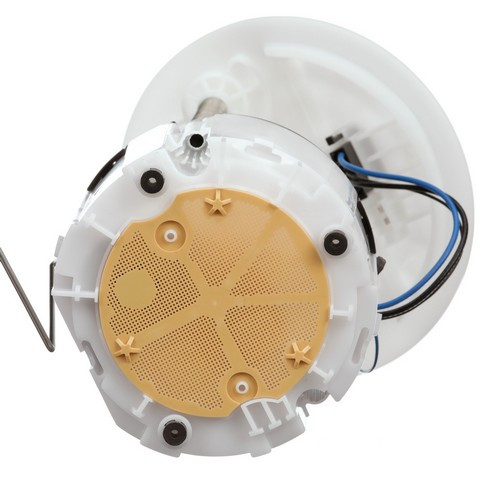

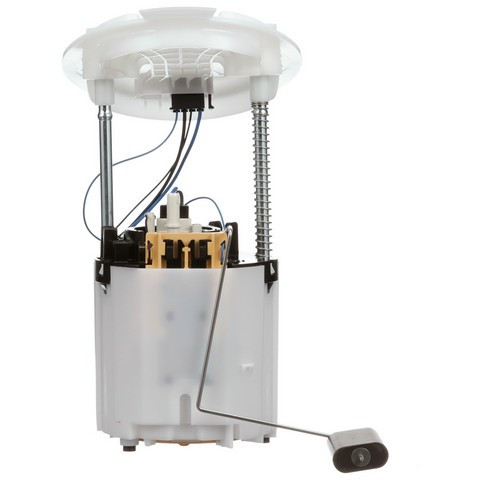

Delphi FG1588 left fuel pump module for the 2011-2016 Dodge Charger V6 3.6L, the 2012-2016 Charger V8 6.4L, the 2015-2016 Charger V8 5.7L and other vehicles supplies fuel from the tank to the engine. It is built to Delphi's OE standards, and its empty float height and float retention match OE specifications.
- Lower amperage draw, so less load on the vehicle's electrical system
- Correct gas gauge reading from the matched empty float height and float retention
- Validated and tested before it is matched to its application
- Design and durability intended to lower failure rates
Quick facts
- Part: Delphi FG1588 fuel pump module
- Also called: fuel pump assembly
- Fits: 2011-2016 Dodge Charger V6 3.6L, the 2012-2016 Charger V8 6.4L, the 2015-2016 Charger V8 5.7L and other vehicles
- Position: Left
- Condition: New
Hard starting, sputtering or an erratic fuel gauge can be signs the module is failing. A clogged fuel filter, a blown fuse or a relay fault can sit behind the same symptoms, so track down the cause before you buy a new module.
Fits
It also fits the 2011-2019 Chrysler 300 V6 3.6L, the 2012-2013 300 V8 6.4L, the 2008-2010 Dodge Challenger V8 6.1L and the 2011-2016 Challenger V8 6.4L. This listing is one left-side module.
Specifications
- Position: Left
- Quantity: 1 per listing
- Condition: New
In the box
One fuel pump module with float arm and seal, plus an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- The instruction sheet that comes with the part covers the steps.
Frequently Asked Questions
Is the Delphi fuel pump module FG1588 right for the 2011-2016 Dodge Charger V6 3.6L?
Yes. Delphi FG1588 is the left-position module for the 2011-2016 Dodge Charger V6 3.6L, the 2012-2016 Charger V8 6.4L and the 2015-2016 Charger V8 5.7L.
What comes with the Delphi fuel pump module assembly?
Delphi FG1588 comes as the module with its float arm and seal, plus an instruction sheet.
Does the Delphi fuel module match the OE float height for the gas gauge?
Yes. The empty float height and float retention match OE specifications, which is meant to give a correct gas gauge reading.
How much load does the Delphi module put on the electrical system?
Its lower amperage draw puts less load on the vehicle's electrical system.
Should I clean the tank before fitting this fuel pump assembly?
Yes. Check and clean the fuel tank before installing this left-side module; the instruction sheet in the box covers the steps.
