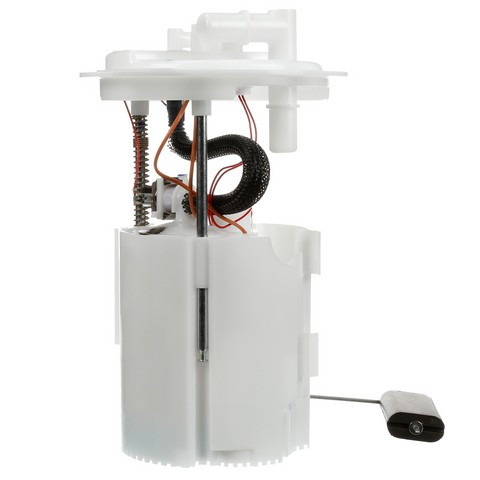

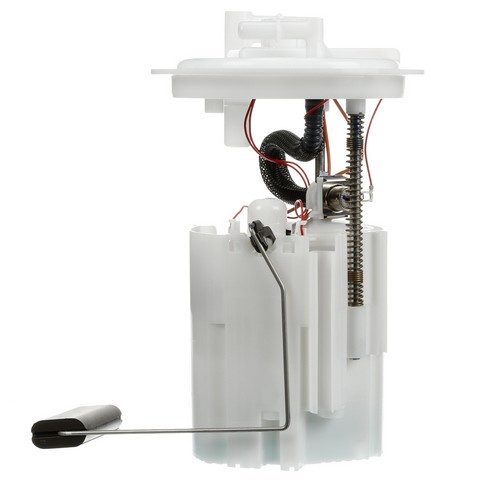

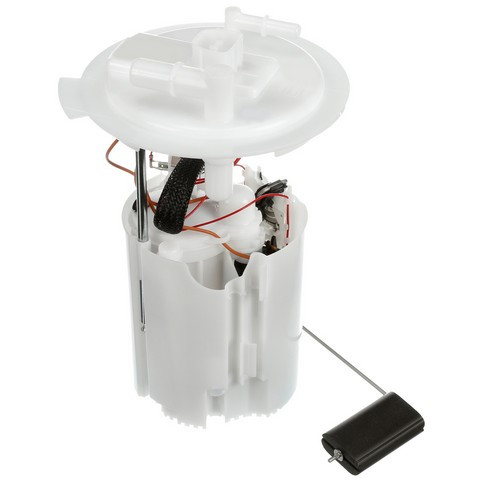

Keep fuel flowing to the engine with the Delphi Fuel Pump Module Assembly FG1677, an in-tank electric module built to Delphi's OE standards. It is a direct-fit, application-specific replacement for the 2012-2015 Ford Edge (L4-2.0L). Delphi has manufactured fuel pumps and fuel delivery parts for over 80 years and is a Tier 1 supplier to most global vehicle manufacturers.
- In-tank electric module: plastic housing with an integrated fuel pressure regulator, an internal strainer, and quick-connect outlets (two outlets).
- Accurate fuel level: empty float height and float retention match OE specifications to help provide correct fuel-gauge readings; sender resistance is 180 ohm empty and 10 ohm full.
- Easier on the electrical system: a lower amperage draw places less load on the vehicle's electrical system.
- Application-matched: validated, tested, and matched to the right vehicle application, with a design intended for lower failure rates.
The package includes the fuel pump module assembly with float arm and an instruction sheet. Mounting hardware, gasket/seal, and lock ring are not included. Before installing, check and clean the fuel tank to avoid unnecessary returns. Country of origin: Thailand. Manufacturer part number FG1677.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What vehicle does the Delphi FG1677 fit?
It is an application-specific, direct-fit replacement for the 2012-2015 Ford Edge with the L4-2.0L engine.
Does it include a fuel pressure regulator and strainer?
Yes. This module includes an integrated fuel pressure regulator and an internal strainer, plus the float arm. Mounting hardware, gasket/seal, and lock ring are not included.
Is this an in-tank electric fuel pump module?
Yes. It is an in-tank electric fuel pump module assembly designed for gasoline applications, with a plastic housing and quick-connect outlets.
What are the signs this fuel pump module may need replacing?
Signs that may point to a failing module include hard starting, stalling, loss of fuel pressure, or inaccurate gauge readings. Diagnose the cause first; if the module is at fault, this replaces it.
What comes in the box and where is it made?
The box contains the fuel pump module assembly with float arm and an instruction sheet. Country of origin: Thailand.
