Fuel Pump Module for 2016-2022 Honda HR-V - Delphi FG2131

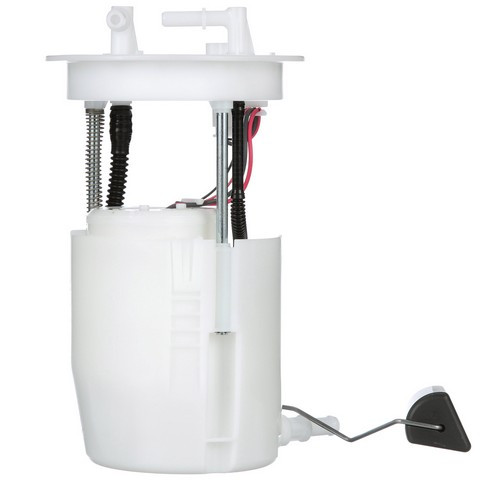

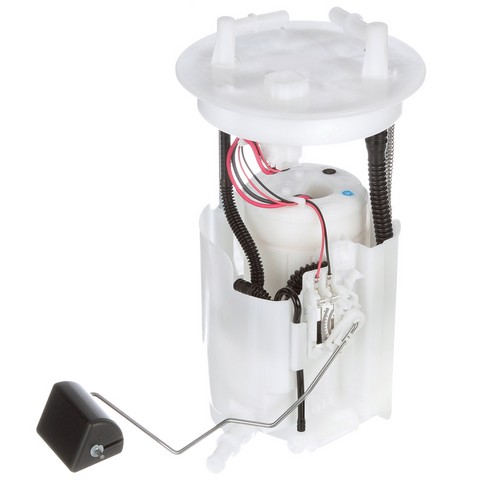

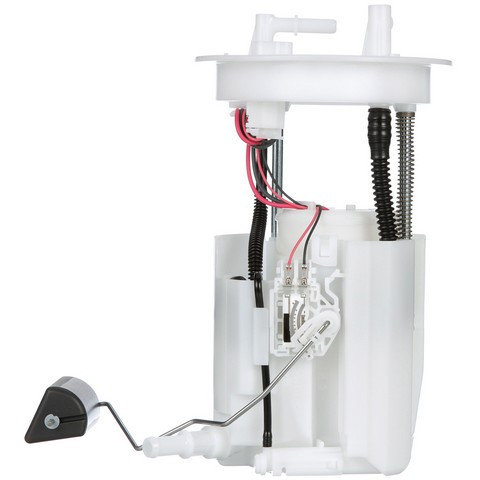

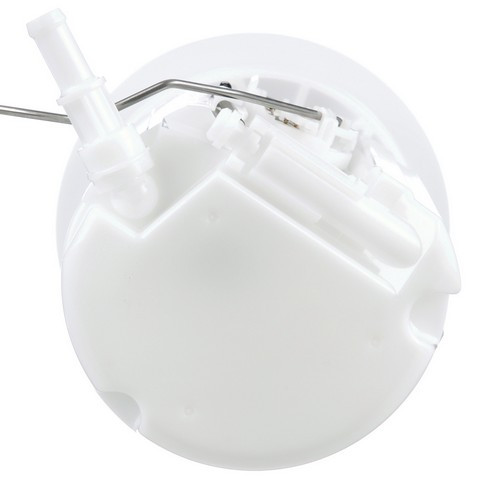

Keep fuel moving to your engine with the Delphi fuel pump module assembly FG2131, an in-tank electric module that draws gasoline from the tank and feeds it to the engine's fuel system. It's a specific-fit replacement for the 2016-2022 Honda HR-V L4-1.8L, mounting on the left side of the fuel tank.

• Built to Delphi OE standards: Delphi is a Tier 1 supplier to most global automakers and has built fuel pumps and delivery parts for over 80 years; this module is validated, tested, and matched to the vehicle application.
• Accurate gauge reading: empty float height and float retention match OE specifications for a correct gas-gauge reading.
• Lower amperage draw: designed to draw less load on the vehicle's electrical system.

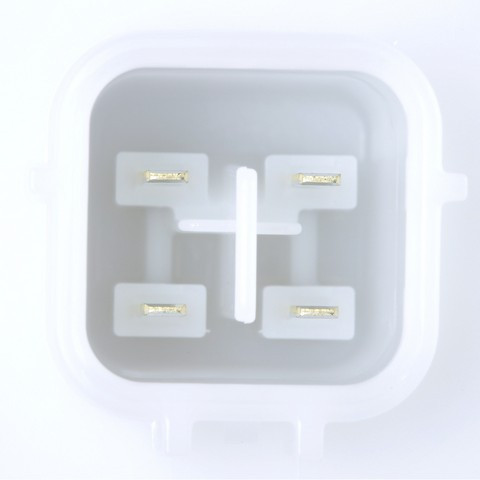

• Integrated module: plastic housing with an internal strainer, pressure regulator, float arm, sealing gasket, and lock ring included; two outlets with a quick-connect outlet fitting and four male blade terminals. Mounting hardware is not included.

The assembly ships with the fuel pump module, float arm, seal, and an instruction sheet. Signs an original pump may need replacing include a whining noise from the tank, hard starting, engine sputtering or stalling under load, and loss of fuel pressure; if a failed pump is the cause, this replaces it. Always check and clean the fuel tank before installing to avoid unnecessary returns. Country of origin: Thailand.

Interchange: 17045-T7X-A00 · 17045-T7X-A01 · 17045-T7X-A02 · 17047-T7X-A00
17045T7XA00 · 17045T7XA01 · 17045T7XA02 · 17047T7XA00 · CFG2131 · SP8071M
