Fuel Pump Module for 2017-2020 Ford Fusion & More - Delphi FG2313

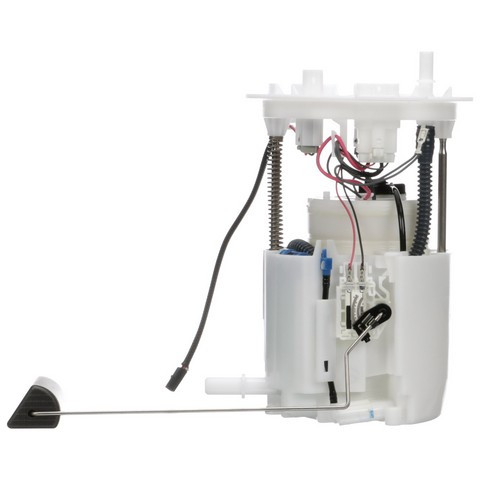

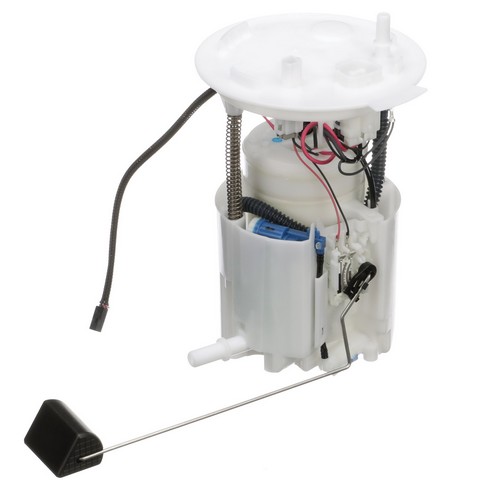

Delphi FG2313 fuel pump module for the 2017-2020 Ford Fusion 4-cylinder 2.0L and other vehicles pumps fuel from the tank to the engine. This Delphi fuel pump module assembly includes a float arm and is built to Delphi's OE standards.

• Empty float height and float retention matched to specification for a correct gas gauge reading
• Lower amperage draws less load on the vehicle's electrical system
• Validated, tested and matched to the right vehicle application
• Design and durability behind lower failure rates
• Float arm included with the assembly

Quick facts

• Part: Delphi FG2313 fuel pump module
• Also called: fuel pump assembly
• Fits: 2017-2020 Ford Fusion 4-cylinder 2.0L and other vehicles
• Condition: New

Hard starting, stalling or an erratic gas gauge can be signs of a worn module. Before you replace it, rule out a blown fuse, a faulty relay and wiring trouble; a shop can test fuel pressure safely. If the module is the cause, this assembly replaces it.

Fits

This module fits the 2017-2020 Ford Fusion 4-cylinder 2.0L and the 2017-2020 Lincoln MKZ 4-cylinder 2.0L, and each of them takes one.

Specifications

• Quantity per vehicle: 1
• Construction: module assembly with float arm
• Condition: New
• Country of origin: Thailand

In the box

One fuel pump module with float arm and one instruction sheet.

Installation notes

• An instruction sheet comes with the module for the installation steps.
• Check and clean the fuel tank before installing.

Interchange: HG9Z 9H307-A · PFS-1103
DFG2313
