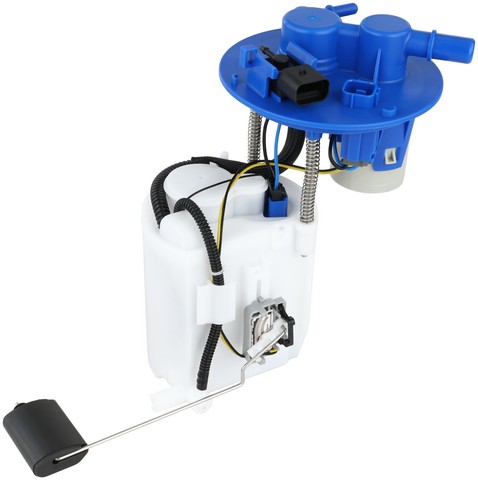

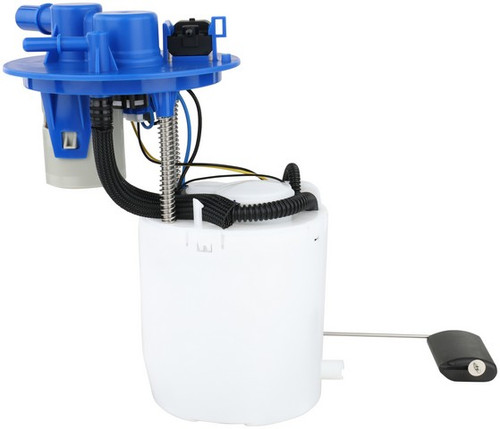

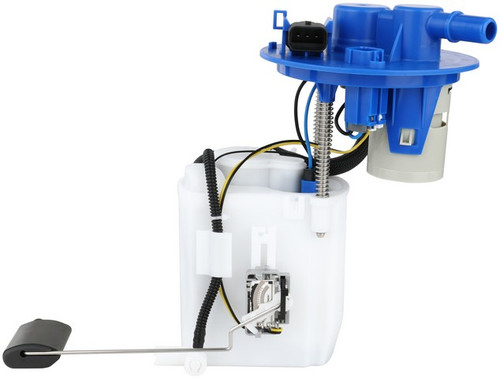

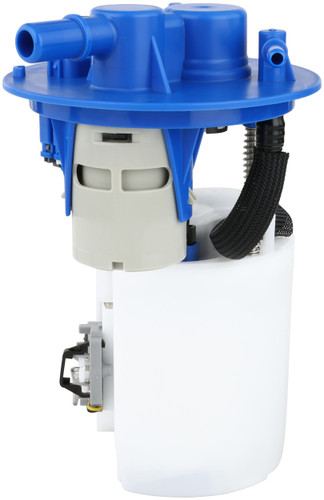

Delphi FG2335 fuel pump module for the 2016-2019 Kia Soul 4-cylinder 1.6L or 2.0L sends fuel from the tank to the engine. This Delphi fuel pump module assembly is an electric in-tank unit, and its empty float height and float retention match OE specifications for a correct gas gauge reading.
- Lower amperage draw puts less load on the vehicle's electrical system
- Validated, tested and matched to the vehicle application
- Design and durability for lower failure rates
- Regulator and internal strainer included
- Two quick-connect outlets and four blade terminals
Quick facts
- Part: Delphi FG2335 fuel pump module
- Also called: fuel pump assembly
- Fits: 2016-2019 Kia Soul 4-cylinder 1.6L or 2.0L
- Material: plastic housing
- Condition: New
Hard starting, stalling or a gas gauge that reads wrong can mean the pump or its float is worn. These signs alone do not prove the module is the problem, since debris in the fuel tank can cause pump trouble too.
Fits
It fits the 2016-2019 Kia Soul 4-cylinder 1.6L or 2.0L, and that car takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Pump type: electric, in tank
- Fuel type: gas
- Outlets: 2, quick connect
- Terminals: 4, male blade

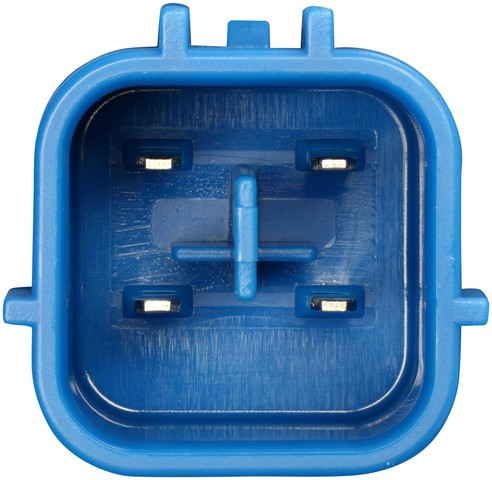

- Connector: 1, square, female
Build and materials
- Housing material: plastic
- Strainer: internal
- Regulator: included
- Float arm: included
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with float arm, a gasket or seal and an instruction sheet. Mounting hardware and the lock ring are not included, so plan on new ones rather than reusing the old.
Installation notes
- Check and clean the fuel tank before installing the pump.
- The instruction sheet in the box covers the steps.
Interchange: 94460-B2000 · 31110-B2501 · 31110-B2550 · 31120-B2501 · 31120-B2550 · 94460-B2500
CFG2335 · SP3303M
This part cross-references / interchanges with the following part numbers:
CFG2335, 94460-B2000, 31110-B2501, 31110-B2550, 31120-B2501, 31120-B2550, 94460-B2500, SP3303M
Frequently Asked Questions
Is the Delphi fuel pump module right for the 2016-2019 Kia Soul 4-cylinder 1.6L or 2.0L?
Yes. Delphi FG2335 fits the 2016-2019 Kia Soul 4-cylinder 1.6L or 2.0L, and each of those engines takes one module.
Does the Delphi fuel module come with a lock ring?
No. The Delphi FG2335 comes with the float arm, a gasket or seal and an instruction sheet. The lock ring and mounting hardware are not included.
Does the Delphi module include a regulator and strainer?
Yes. This module has a regulator and an internal strainer, along with two quick-connect outlets on the in-tank electric pump.
Can a worn fuel pump assembly cause a wrong gas gauge reading?
It can be one cause, since the float arm drives the gauge reading and a worn float can throw it off. This module's empty float height and float retention match OE specifications.
Does the Delphi FG2335 replace part number 31110-B2501?
Yes. 31110-B2501 is among the numbers this Delphi FG2335 replaces, along with 94460-B2000 and SP3303M.
