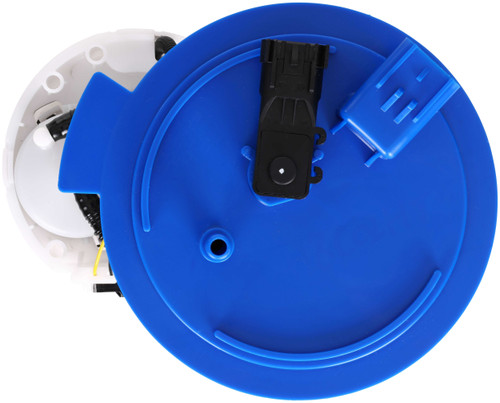

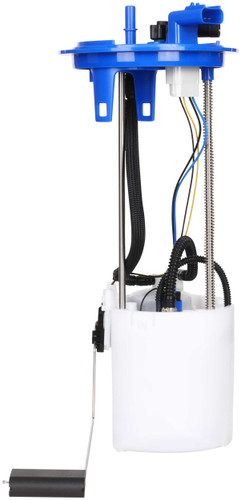

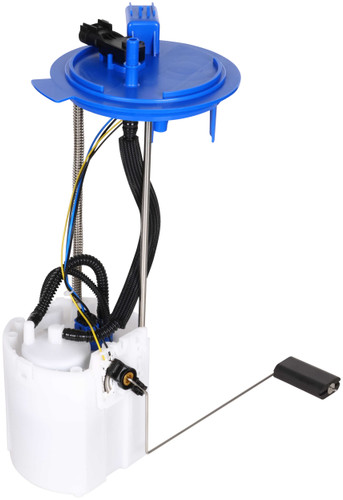

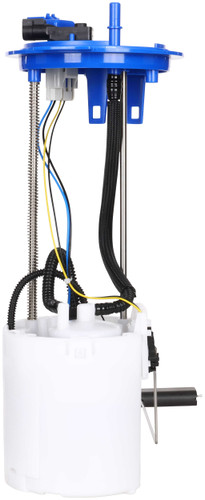

Delphi FG2849 fuel pump module for the 2020 Ford F-250 Super Duty V8 7.3L and other vehicles delivers fuel from the tank to the engine. The Delphi fuel pump module assembly is built to Delphi's OE standards.
- Empty float height and float retention set for a correct gas gauge reading
- Lower amperage draw places less load on the vehicle's electrical system
- Validated, tested and matched to the right vehicle application
- Design and durability for lower failure rates
Quick facts
- Part: Delphi FG2849 fuel pump module
- Also called: fuel pump assembly
- Fits: 2020 Ford F-250 Super Duty V8 7.3L and other vehicles
- Condition: New
Hard starting, stalling or a whine from the fuel tank can mean the fuel pump assembly is wearing out. A clogged fuel filter, a blown fuse or a bad relay can also produce these symptoms, so track down the cause before you buy.
Fits
It fits the 2020 Ford F-250 Super Duty V8 7.3L, the 2020 Ford F-350 Super Duty V8 7.3L and the 2020 Ford F-450 Super Duty V8 7.3L. The 2020 Ford F-250 Super Duty V8 7.3L takes one module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Engine: V8-7.3L
Build and materials
- Condition: New
- Float arm: included
- Country of origin: Thailand
In the box
One fuel pump module with float arm, seal, splices, wire harness and an instruction sheet.
Installation notes
- Check and clean the fuel tank before installing the module.
- An instruction sheet comes with the part for the installation steps.
Interchange: LC3Z 9H307-D · LC3Z 9H307-F · LC3Z 9H307-K
LC3Z9H307T · PFS1356 · LC3Z9H307P
This part cross-references / interchanges with the following part numbers:
LC3Z 9H307-D, LC3Z 9H307-F, LC3Z9H307T, PFS1356, LC3Z 9H307-K, LC3Z9H307P
Frequently Asked Questions
Does the Delphi FG2849 fit the 2020 Ford F-350 Super Duty V8 7.3L?
Yes. Delphi FG2849 fits the 2020 Ford F-350 Super Duty V8 7.3L, which takes one module.
What comes with this Delphi module?
This module comes with a float arm, seal, splices, a wire harness and an instruction sheet.
Will this Delphi fuel module give a correct gas gauge reading?
Yes. Delphi FG2849 has its empty float height and float retention matched to OE specifications for a correct gas gauge reading.
Do I need to clean the tank before installing this fuel pump module?
Yes. Check and clean the fuel tank before installing, and follow the instruction sheet that comes with Delphi FG2849 for the steps.
Does the Delphi FG2849 replace part number LC3Z 9H307-D?
Yes. Delphi FG2849 is listed as a replacement for LC3Z 9H307-D, along with LC3Z 9H307-F and PFS1356.
