Delphi FG0785 right fuel pump module for the 2004-2006 Chrysler Pacifica V6 3.5L and the 2005-2006 Pacifica V6 3.8L transfers fuel within the tank. This Delphi fuel pump module assembly meets or exceeds OE resistance and delivery requirements.
- Transfers fuel within the tank
- Includes a fuel level sender assembly with a float arm
Quick facts
- Part: Delphi FG0785 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2006 Chrysler Pacifica V6 3.5L and the 2005-2006 Pacifica V6 3.8L
- Position: Right
- Condition: New
The gauge wiring, a wiring connector or the instrument cluster can be behind a fuel gauge that reads wrong or sticks, or a low-fuel warning at the wrong time, so find the cause before buying. If the sender in this unit is at fault, this replaces it. Some catalogs list the part as a fuel pump assembly.
Fits
It fits the 2004-2006 Chrysler Pacifica V6 3.5L and the 2005-2006 Pacifica V6 3.8L. This listing is one right-side unit, and the quantity for both engines is one.
Specifications
Fit and size
- Position: Right
- Quantity per vehicle: 1
Build and materials
- Fuel level sender assembly: included
- Condition: New
In the box

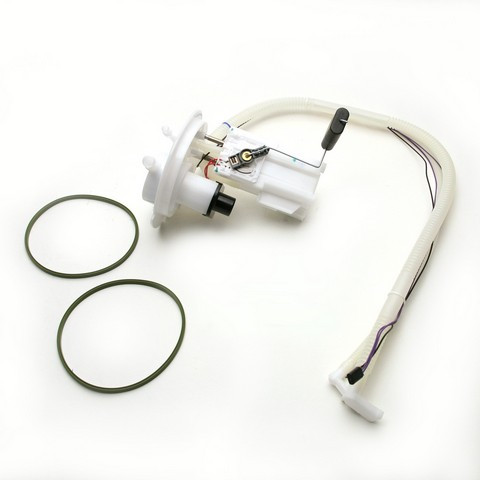

One fuel pump module with float arm, one seal and one instruction sheet. The primary fuel pump is not included.
Interchange: 5016 846AA · 5016 846AB · 5016 846AC · 5016 846AD · 5016 846AE · 5101 804AA · 5101 804AC · 5101 805AC · 4010434 · E7287A · CFG0785 · 67672 · M2541796 · A46119 · SP7052M · USEP7194M
This part cross-references / interchanges with the following part numbers:
4010434, E7287A, CFG0785, 67672, M2541796, 5016 846AA, 5016 846AB, 5016 846AC, 5016 846AD, 5016 846AE, 5101 804AA, 5101 804AC, 5101 805AC, A46119, SP7052M, USEP7194M
Frequently Asked Questions
Does Delphi FG0785 fit the 2005-2006 Chrysler Pacifica V6 3.8L?
Yes. Delphi FG0785 is a right-side unit for the 2004-2006 Chrysler Pacifica V6 3.5L and the 2005-2006 Pacifica V6 3.8L.
Does the Delphi fuel pump module include the primary fuel pump?
No. Delphi FG0785 transfers fuel within the tank, and the primary fuel pump is not part of it.
What comes with this Delphi module?
This fuel pump module comes with its float arm, a seal and an instruction sheet, and it has a fuel level sender assembly.
Could a gauge that reads wrong be a sign of a failing Delphi fuel module?
Yes, it can be, since this unit's fuel level sender assembly and float arm report how much fuel is in the tank. A shop can test the sender to confirm.
Does Delphi FG0785 replace number 5016 846AA?
Yes. 5016 846AA is one of the numbers Delphi FG0785 replaces, along with 5016 846AB, 5101 804AA and others on the Interchange line.
