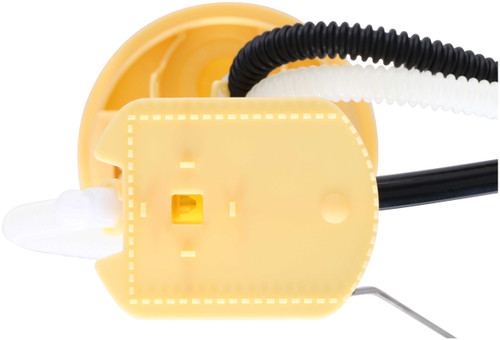

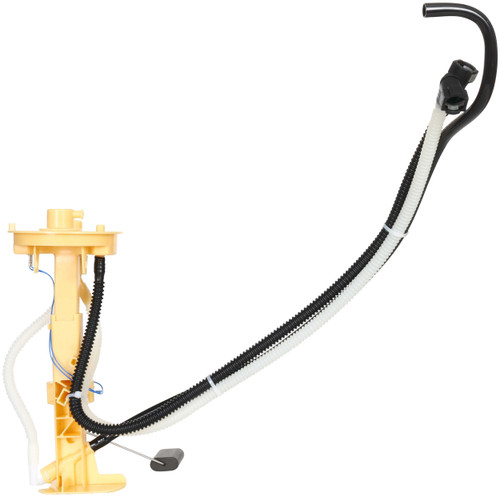

Delphi FT4127 left fuel transfer unit for the 2009-2018 BMW X5 6-cylinder 3.0L transfers fuel within the tank. Its delivery and resistance figures meet or exceed OE requirements.
- Two outlets with quick-connect fittings for moving fuel within the tank
- Resistance of 990 ohms empty and 50 ohms full
- Plastic housing with a gasket or seal included
- Nylon hose, 9.9 mm outside diameter, on a hose-type inlet
- Fuel transfer only; the primary fuel pump is not included
Quick facts
- Part: Delphi FT4127 fuel transfer unit
- Fits: 2009-2018 BMW X5 6-cylinder 3.0L
- Position: Left
- Material: Plastic housing
- Condition: New
A fuel gauge that reads wrong, or fuel that does not move within the tank, can mean the transfer unit is failing, though other fuel-system parts can produce those symptoms too. Before replacing it, have a shop measure its resistance against the spec with the engine off, since the unit sits inside the fuel tank.
Fits
It fits the 2009-2018 BMW X5 6-cylinder 3.0L (L6-3.0L), on the left side.
Specifications
Fit and size
- Position: Left
- Quantity per vehicle: 1
- Fuel type: Diesel
- Bushing outside diameter: 0.375 in
- Hose outside diameter: 9.9 mm
- Terminals: 2, male pin
- Outlets: 2, quick connect
- Resistance: 990 ohms empty, 50 ohms full
Build and materials
- Mounting: in tank
- Housing material: Plastic
- Hose material: Nylon
- Inlet type: Hose
- Connector: oval, female
- Gasket or seal: included
- Condition: New
- Country of origin: Thailand
In the box
One left fuel transfer unit with a gasket or seal. This listing holds one unit, and the left side of the X5 takes one. The primary fuel pump, strainer, suction pipe and regulator are not included.
Interchange: 16 11 7 195 473 · 16 11 7 494 926 · LSF133
This part cross-references / interchanges with the following part numbers:
16 11 7 195 473, 16 11 7 494 926, LSF133
Frequently Asked Questions
Is the Delphi FT4127 fuel transfer unit right for the 2009-2018 BMW X5 6-cylinder 3.0L?
Yes. Delphi FT4127 is the left-side unit for the 2009-2018 BMW X5 6-cylinder 3.0L (L6-3.0L), and that side takes one.
Does the Delphi FT4127 come with the primary fuel pump?
No. Delphi FT4127 moves fuel within the tank and does not include the primary fuel pump. It comes with a gasket or seal, but not a strainer, suction pipe or regulator.
Is this left fuel transfer unit made for diesel fuel?
Yes. Its fuel type is diesel, and the hose is nylon with a 9.9 mm outside diameter.
What resistance should this left fuel transfer unit show?
The spec is 990 ohms when empty and 50 ohms when full. A shop can test a unit against those figures.
Does the FT4127 replace the LSF133 fuel transfer unit?
Yes. LSF133 is one of the other numbers this Delphi FT4127 replaces, and it is listed with the rest of the cross-references.
