Right Ignition Coil for 2000-2003 Cadillac DeVille & More - Delphi GN10109

$256.99

WARNING:California Proposition 65▾

Part number: GN10109

UPC: 689604125663

Condition: New

Weight: 6.69 LBS

Item Package Quantity: 1

$256.99

Current Stock: 62

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Delphi Ignition Coil P/N:GN10109

$256.99

Description

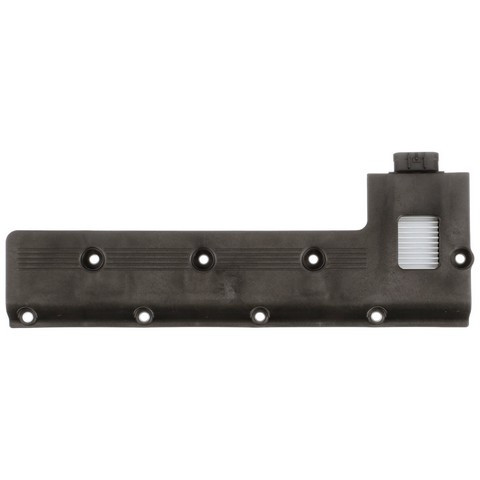

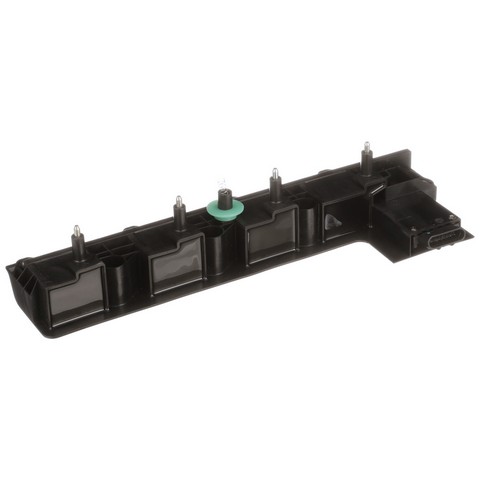

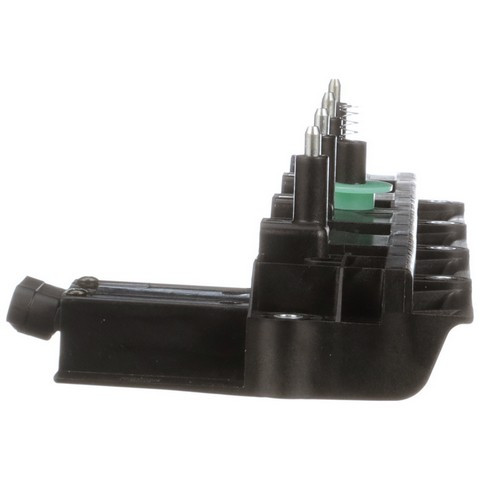

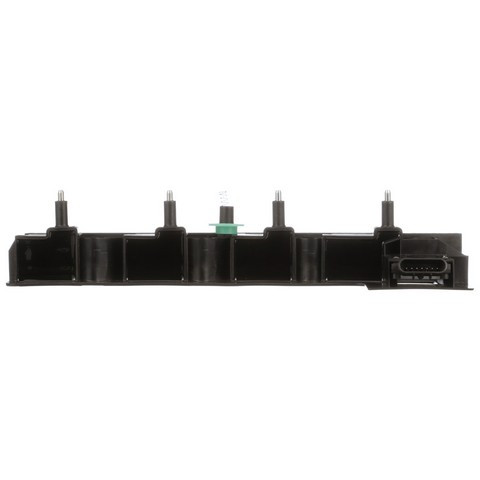

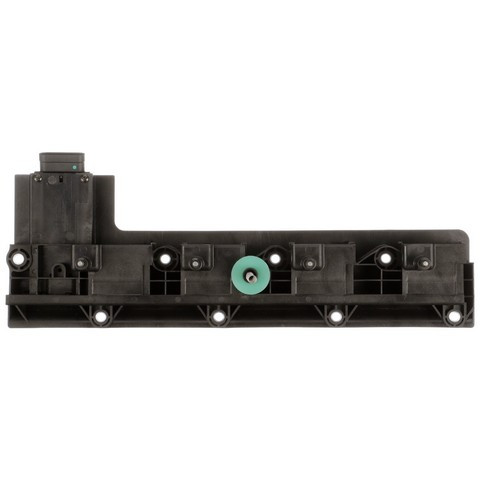

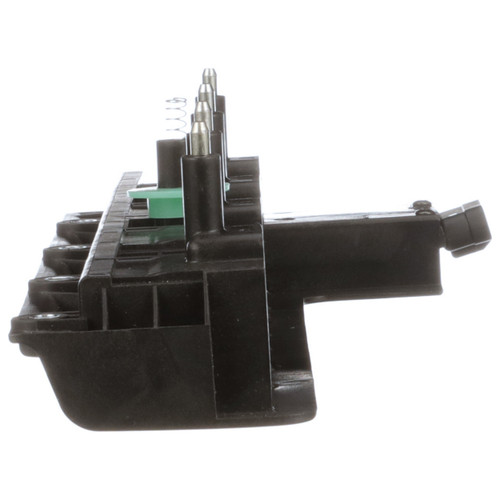

Delphi GN10109 right ignition coil for the 2000-2003 Cadillac DeVille V8 4.6L and other vehicles sends high-voltage power to the spark plug. It is supplied as a complete assembly.

Delphi ignition coil designed and endurance tested using high quality materials
Passes power to the spark plugs for fast starts, consistent engine performance and optimized fuel efficiency
Smart winding process controls wire lengths to keep voltage the same
High quality wire coating resists imperfections that lead to failure
6-pin sealed connector with 4 HV terminals and a ground spring

Quick facts

Part: Delphi GN10109 ignition coil
Fits: 2000-2003 Cadillac DeVille V8 4.6L and other vehicles
Position: Right
Condition: New

Hard starting, a misfire or rough running can mean a coil has weakened. These signs alone do not prove the coil is the problem, since worn spark plugs are another common cause.

Fits

The 2000-2003 Cadillac DeVille V8 4.6L, the 2000-2003 Cadillac Seville V8 4.6L and the 2001-2003 Oldsmobile Aurora V8 4.0L are among the vehicles this ignition coil fits. Open the "Vehicles it fits" section to check your exact model and engine.

Specifications

Fit and size

Position: Right
Quantity per vehicle: 1
Connector: 6-pin sealed, 4 HV terminals, ground spring

Build and materials

Type: ignition coil, complete assembly
PV8 fully integrated system: 4 coils and 1 module
Condition: New

In the box

One right ignition coil, supplied as a complete assembly. This listing holds one coil, and the right side takes one; the other side is ordered separately.

Interchange: UF-265 · 921-2145
D590 · 5C1068 · E248 · C1245 · IC350 · 1104075 · IC350SB · E395

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

D590, 5C1068, E248, C1245, IC350, 1104075, IC350SB, E395, UF-265, 921-2145

Buyer's Q&A

Frequently Asked Questions

Is this a coil pack for the 2000-2003 Cadillac DeVille V8 4.6L?

Yes. Delphi GN10109 is the right-side ignition coil for the 2000-2003 Cadillac DeVille V8 4.6L and the 2000-2003 Cadillac Seville V8 4.6L; the "Vehicles it fits" section covers the other models.

Does a Delphi ignition coil pack like this come with spark plugs?

No. Delphi GN10109 is one right ignition coil supplied as a complete assembly; spark plugs are sold separately.

Is this Delphi coil pack a single coil or a full system?

This listing is one ignition coil as a complete assembly, with a 6-pin sealed connector, 4 HV terminals and a ground spring. The PV8 fully integrated system has 4 coils and 1 module.

Are Delphi coils like GN10109 endurance tested?

Yes. Delphi designs and endurance tests its ignition coils using high quality materials, and a smart winding process controls wire lengths to keep voltage the same.

How can I inspect a right ignition coil like Delphi GN10109?

With the engine off and cool, look the Delphi GN10109 over for cracks and check its 6-pin sealed connector for damage. A shop can test the coil's output.
