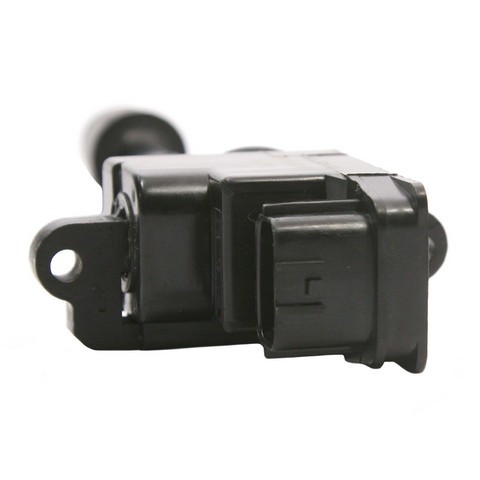

Delphi GN10224 right ignition coil for the 1995-1999 Nissan Maxima V6 3.0L and other vehicles delivers power to the spark plug. Delphi coils are engineered to OE design specifications, with OE-level performance, durability and electromagnetic capacity.
- Designed and endurance tested with high quality materials for fast starts and consistent engine performance
- Smart winding process controls wire lengths to keep voltage the same
- High quality wire coating resists imperfections that lead to failure

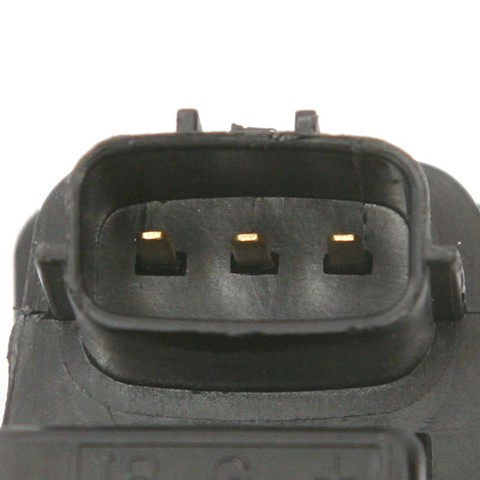

- Sealed 3 male pin connector, with the boot included
Quick facts
- Part: Delphi GN10224 ignition coil
- Fits: 1995-1999 Nissan Maxima V6 3.0L and other vehicles
- Position: Right
- Condition: New
Misfires, hard starting and a rough idle can point to a worn coil, though a worn spark plug or a damaged connector can be behind them too, so find the cause before you replace anything.
Fits
This ignition coil fits the 1995-1999 Nissan Maxima V6 3.0L and the 1996-1999 Infiniti I30 V6 3.0L. It goes on the right side, rear cylinder bank only; the front cylinder bank takes a different coil, ordered separately.
Specifications
Fit and size
- Position: Right, rear cylinder bank only
- Quantity per vehicle: 3
- Connector: 3 male pin, sealed
Build and materials
- Boot: included
- Condition: New
In the box
One ignition coil with its boot. This listing is one coil, and the rear cylinder bank takes three, so order three for that bank.
Interchange: 178-8285 · 52-1502 · 673-4010 · 22448-31U01 · 22448-31U11 · 23-0371 · 36-8015 · C-520 · UF-263 · UF-263T · 921-2014
5C1166 · E691 · C1002 · IC208 · IGC0012 · CLS1009 · 5000 · IC208SB · 5149 · CUF263 · 921X2014
This part cross-references / interchanges with the following part numbers:
5C1166, E691, 178-8285, 52-1502, 673-4010, 22448-31U01, 22448-31U11, C1002, IC208, IGC0012, CLS1009, 23-0371, 5000, IC208SB, 5149, 36-8015, C-520, UF-263, UF-263T, CUF263, 921-2014, 921X2014
Frequently Asked Questions
Is Delphi GN10224 a Nissan Maxima ignition coil for the 1995-1999 model with the V6 3.0L?
Yes. Delphi GN10224 fits the 1995-1999 Nissan Maxima V6 3.0L and the 1996-1999 Infiniti I30 V6 3.0L. It is the right-side coil for the rear cylinder bank only.
Which bank does this Nissan Maxima coil pack go on for the 1995-1999 V6 3.0L?
It goes on the rear cylinder bank only, the right side. The front cylinder bank takes a different coil, P/N GN10225, which is a separate part.
Does this Delphi ignition coil come with its boot?
Yes. The coil comes with its boot and has a sealed 3 male pin connector.
Is this Delphi coil pack one coil or a full set?
It is one coil. Delphi GN10224 is a single ignition coil, and the rear cylinder bank takes three, so you would order three for that bank.
Is UF-263 an interchange number for Delphi GN10224?
Yes. UF-263 is one of the cross-reference numbers on this page for Delphi GN10224, the right-side coil for the rear cylinder bank.
