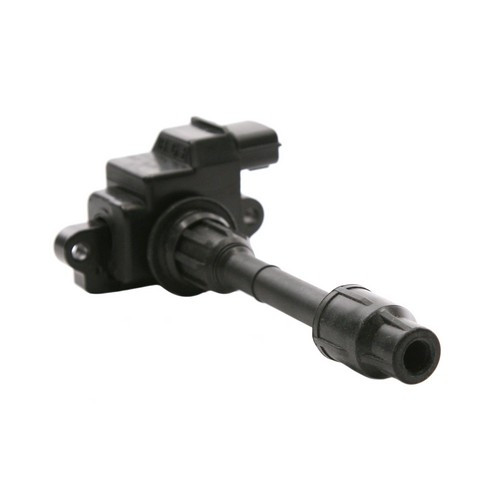

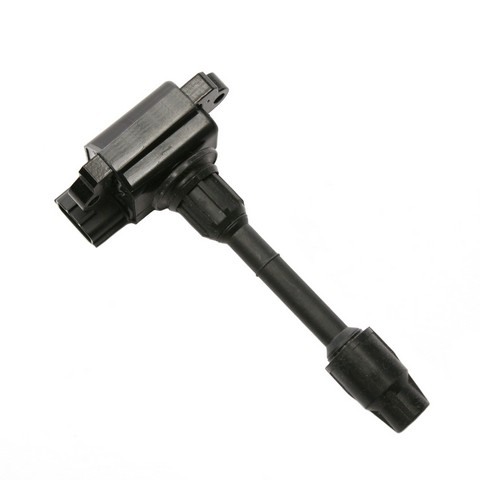

Delphi GN10225 left ignition coil for the 1995-1999 Nissan Maxima V6 3.0L and other vehicles sends the power that fires the spark plug. Delphi coils are designed to insert power into spark plugs for fast starts and consistent engine performance.
- Designed and endurance tested with high quality materials
- Smart winding process controls wire lengths and keeps voltage the same
- High quality wire coating resists imperfections that lead to failure
- 3 male pin sealed connector
- Boot comes with the coil
Quick facts
- Part: Delphi GN10225 ignition coil
- Fits: 1995-1999 Nissan Maxima V6 3.0L and other vehicles
- Position: Left
A misfire, rough idle, hard starting or a check engine light can mean a coil is failing. Worn spark plugs or a damaged connector can be behind these signs too, so find the cause before buying.
Fits
This is an ignition coil for the 1995-1999 Nissan Maxima V6 3.0L and the 1996-1999 Infiniti I30 V6 3.0L, engineered to OE design specifications. It fits the front cylinder bank only. This listing is one coil; the front bank of the 1995-1999 Nissan Maxima V6 3.0L takes three, and the rear cylinder bank is a separate part, Delphi GN10224.
Specifications
Fit and size
- Position: Left
- Cylinder bank: front only
- Quantity per application: 3
Build and materials
- Connector: 3 male pin sealed connector
- Boot: included
In the box
One ignition coil with its boot.
Interchange: 178-8300 · 52-1501 · 673-4011 · 22448-31U06 · 22448-31U16 · 23-0372 · 36-8016 · C-518 · UF-232 · UF-232T · 921-2011
5C1165 · E692 · C1001 · IC212 · IGC0015 · CLS1015 · 5001 · IC212SB · 5150 · CUF232 · 921X2011
This part cross-references / interchanges with the following part numbers:
5C1165, E692, 178-8300, 52-1501, 673-4011, 22448-31U06, 22448-31U16, C1001, IC212, IGC0015, CLS1015, 23-0372, 5001, IC212SB, 5150, 36-8016, C-518, UF-232, UF-232T, CUF232, 921-2011, 921X2011
Frequently Asked Questions
Is this the coil pack for the 1995-1999 Nissan Maxima V6 3.0L?
Yes. Delphi GN10225 fits the 1995-1999 Nissan Maxima V6 3.0L. It is a left coil for the front cylinder bank only.
Does Delphi GN10225 also fit the 1996-1999 Infiniti I30 V6 3.0L?
Yes. Delphi GN10225 is listed for the 1996-1999 Infiniti I30 V6 3.0L as well, for the front cylinder bank.
Does this Delphi coil pack come with a boot?
Yes. The coil comes with its boot and has a 3 male pin sealed connector. The package holds the one ignition coil.
Can I put GN10225 on the rear cylinder bank?
No. This coil fits the front cylinder bank only. The rear cylinder bank takes Delphi GN10224, which is ordered separately.
Does this Delphi ignition coil match interchange number UF-232?
Yes. UF-232 is on the interchange list for Delphi GN10225, along with 178-8300, C-518 and several other numbers.
