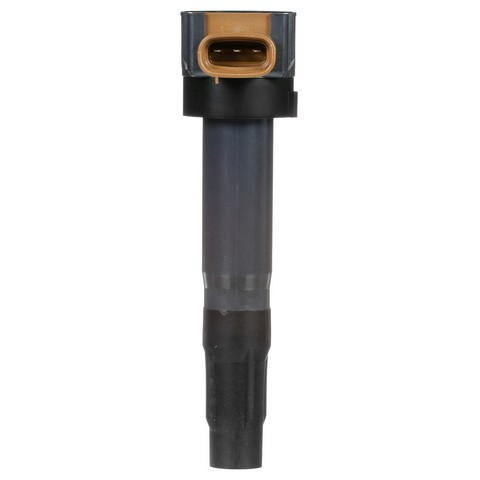

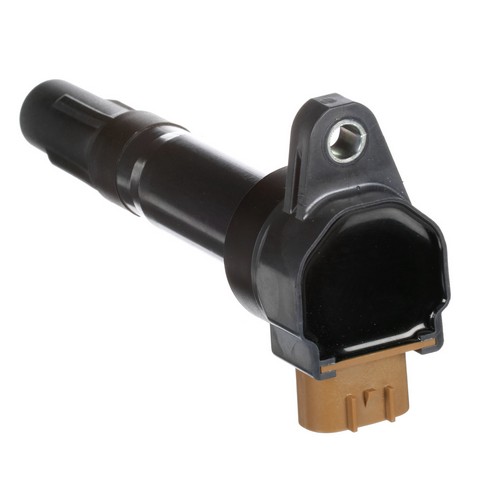

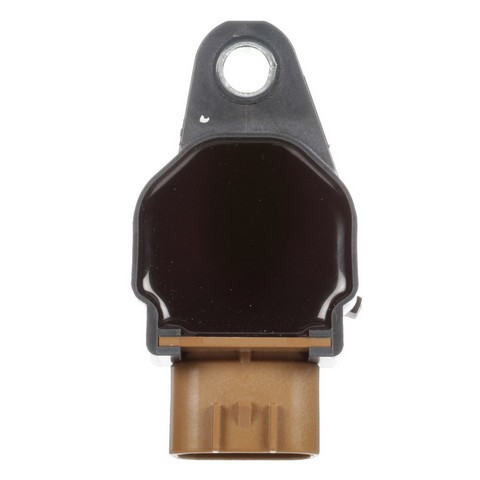

Ignition Coil for 2009-2013 Suzuki Grand Vitara & More - Delphi GN10615

Delphi GN10615 ignition coil for the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L and other vehicles delivers power to the spark plugs. Delphi coils are engineered to OE design specifications.

• Designed and endurance tested with high quality materials
• Fast starts, consistent engine performance and optimized fuel efficiency
• Electromagnetic capacity level and durability requirements are met
• Winding process controls wire lengths to keep voltage the same
• High quality wire coating resists imperfections that lead to failure

Quick facts

• Part: Delphi GN10615 ignition coil
• Fits: 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L and other vehicles

A weak coil can show up as a misfire, a rough idle, hard starting or a lit check engine light. Before you replace the coil, rule out worn spark plugs and a damaged connector, since either can also lead to a misfire.

Fits

This ignition coil is a direct-fit replacement for the 2009-2013 Suzuki Grand Vitara 4-cylinder 2.4L, the 2010-2013 Suzuki Kizashi 4-cylinder 2.4L and the 2010-2013 Suzuki SX4 4-cylinder 2.0L. These four-cylinder engines take four coils, one per cylinder, and this listing is a single coil.

Specifications

• Quantity per vehicle: 4, one per cylinder
• Engine codes: L4-2.0L, L4-2.4L
• Sold individually: one coil per listing

In the box

One ignition coil.

Interchange: 178-8504 · 23-0568 · C-783 · UF-634 · 33400-51K40 · 921-2163
5C1789 · E1134 · EBC1231 · C1732 · IC737 · IC737SB · 3340051K41 · 921X2163
