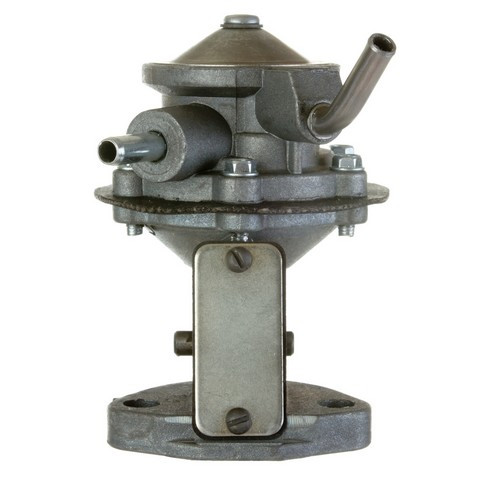

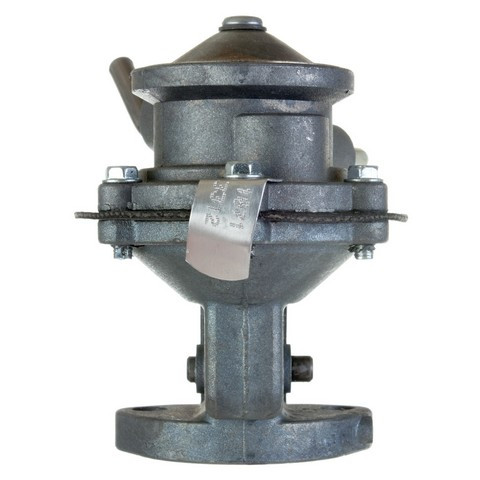

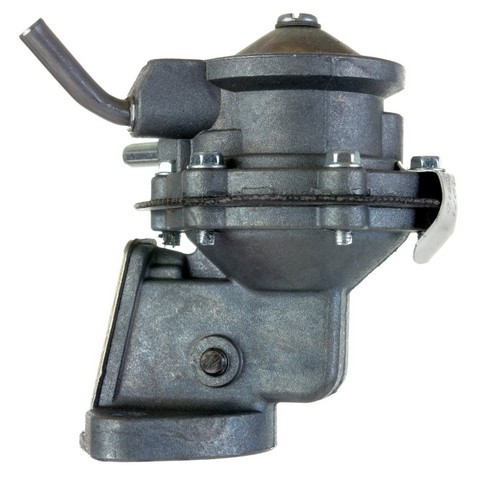

Keep fuel moving to the carburetor on your air-cooled Volkswagen with the Delphi Mechanical Fuel Pump MF0075. This frame-mounted mechanical unit draws gasoline from the tank and delivers it to the carburetor, and it drops in as a direct-fit replacement for the 1966 VW Beetle (H4-1.2L, H4-1.3L), 1967-1969 Beetle (H4-1.5L), 1970 Beetle (H4-1.6L); 1966 Karmann Ghia (H4-1.3L), 1967-1969 Karmann Ghia (H4-1.5L), 1970 Karmann Ghia (H4-1.6L); and 1966-1967 Transporter (H4-1.5L), 1968-1970 Transporter (H4-1.6L).
- Aluminum housing: frame-mounted mechanical pump with a single inlet and single outlet, both hose-bead type, plus two mounting holes.
- Ready to install: gasket and mounting hardware are included; the package contains the pump, a gasket, and an instruction sheet.
- Built to Delphi OE standards: from a Tier 1 supplier that has produced fuel-delivery parts for over 80 years.
- Service tip: always check the fuel filter when replacing the fuel pump.
If a failed mechanical fuel pump is the cause of hard starting, stalling, or fuel starvation, this Premium-grade unit replaces it. Fuel type: Gas. Country of origin: China.
Interchange: 4030137 · 4030220 · 1070 · 1071 · AMF0075 · M60175 · 6417051 · M16099 · B0020P · SP1018MP · SP1198MP · 113 127 025 B · 113127025B
Manufacturer part number MF0075
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
4030137, 4030220, 1070, 1071, AMF0075, M60175, 6417051, M16099, B0020P, SP1018MP, SP1198MP, 113 127 025 B
Frequently Asked Questions
What does this mechanical fuel pump do?
It is engine-driven and draws gasoline from the tank, delivering it to the carburetor. This frame-mounted mechanical unit feeds fuel to the listed air-cooled Volkswagen engines.
Which vehicles does the MF0075 fit?
It is a direct-fit replacement for the 1966-1970 VW Beetle, Karmann Ghia, and Transporter in H4-1.2L, H4-1.3L, H4-1.5L, and H4-1.6L. See the "Vehicles it fits" section to confirm your engine.
Are a gasket and hardware included?
Yes. The gasket and mounting hardware are included, and the package contains the pump, a gasket, and an instruction sheet.
What are signs this fuel pump may need replacing?
Hard starting, stalling, or fuel starvation can be signs. These symptoms have other possible causes, so diagnose the system before replacing the pump.
Should I check anything else when installing it?
Delphi advises always checking the fuel filter when replacing the fuel pump. Consult the vehicle service information for the correct install and torque procedure.
