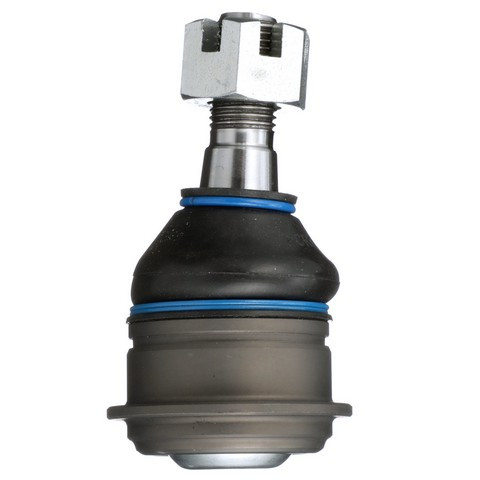

Delphi TC6396 front right lower ball joint for the 1990-1996 Nissan 300ZX is the pivot between the suspension arm and the steering knuckle. This Delphi ball joint lets the wheel steer and move with the suspension.
- Forged construction for increased strength and smooth operation
- Chloroprene rubber boot that improves durability and helps prevent premature failure
- Machined to micron tolerances for durability and smooth joint operation
- Anti-corrosion protection applied to each part
- Tested below -40 degrees C and above 120 degrees C, and exposed to 720 hours of salt spray
Quick facts
- Part: Delphi TC6396 ball joint
- Also called: suspension ball joint
- Fits: 1990-1996 Nissan 300ZX
- Position: Front right lower
- Condition: New
A worn suspension ball joint can show up as a clunk over bumps, loose or wandering steering, or uneven tire wear. Worn control arm bushings, tie rod ends or a wheel bearing can be behind similar signs, so find the cause before buying. If this joint is the cause, this one replaces it.
Fits
This ball joint is a direct-fit replacement for the front right lower position on the 1990-1996 Nissan 300ZX. That position takes one ball joint, and this listing is that one; the front left lower is a separate part, and both sides of the front axle are normally done at the same time.
Specifications
Fit and size
- Position: Front right lower
- Quantity per vehicle at this position: 1
Build and materials
- Construction: forged
- Boot: chloroprene rubber
- Condition: New
Interchange: 102-4573 · 54500-37P00 · 520-174
930010150 · 533383 · B9819 · B9819PR · CB69354 · CB69354PR · GK9819 · MK9819 · JBJ991
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
102-4573, 54500-37P00, 930010150, 520-174, 533383, B9819, B9819PR, CB69354, CB69354PR, GK9819, MK9819, JBJ991
Frequently Asked Questions
Is this the ball joint for the 1990-1996 Nissan 300ZX front right lower side?
Yes. Delphi TC6396 is the front right lower ball joint for the 1990-1996 Nissan 300ZX. The front left lower side is a separate part.
What is the boot on the Delphi TC6396 made of?
The Delphi TC6396 uses a chloroprene rubber boot, which improves durability and helps prevent premature failure of the joint.
How is this front right lower ball joint tested?
It is tested for temperatures below -40 degrees C and over 120 degrees C, and exposed to 720 hours of salt spray.
How can I tell if a worn lower ball joint needs replacing?
Common signs are a clunk over bumps, loose or wandering steering and uneven tire wear. A shop can check the joint for play.
Does Delphi TC6396 replace the 54500-37P00 number?
Yes. 54500-37P00 is one of the numbers Delphi TC6396 replaces, along with 102-4573 and 520-174.
