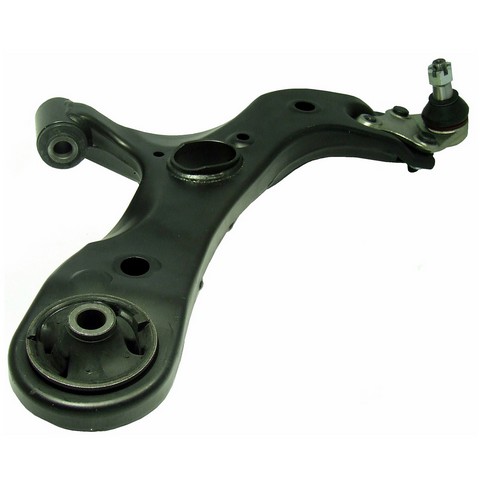

Delphi TC2283 front right lower control arm with ball joint for the 2016-2020 Toyota Mirai and other vehicles connects the wheel assembly to the body and lets the wheel pivot. As a control arm and ball joint assembly, it holds the wheel in position while the suspension moves and the car steers.
- 100% crack detection and ultrasonic flaw detection on every control arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot-welded construction for consistent performance and quality
- Anti-corrosion protection applied to each part
- Tested below -40 °C and above 120 °C, and through 720 hours of salt spray
Quick facts
- Part: Delphi TC2283 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2016-2020 Toyota Mirai and other vehicles
- Position: Front right lower
- Material: Steel
- Condition: New
A clunk over bumps, uneven tire wear or loose-feeling steering can come from a worn arm or ball joint, or from other suspension wear. Before you replace anything, look the arm over with the engine off for cracks, bending or grease leaking from the joint, so you know the arm is the cause.
Fits
The cars it fits include the 2016-2020 Toyota Mirai, the 2017-2018 Toyota Corolla iM and the 2012-2017 Toyota Prius v, with one arm going on the front right of each. Plan to do the front left arm at the same time; this listing is the front right only, and the left is a separate part.
Specifications
Fit and size
- Position: Front right lower
- Quantity per vehicle: 1
Build and materials
- Material: Steel
- Construction: Stamped
- Anti-corrosion protection applied to each part
- Condition: New
Interchange: 102-7528 · 623.44845 · 521-634 · 48068-0F030 · 48068-12300
KSC6044 · CB71024 · CK641288 · K641288 · RK641288 · CMS861114 · JTC2232 · 4806802130
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
102-7528, 623.44845, 521-634, KSC6044, CB71024, CK641288, K641288, RK641288, CMS861114, JTC2232, 4806802130, 48068-0F030, 48068-12300
Frequently Asked Questions
Will the Delphi TC2283 control arm fit a 2016-2020 Toyota Mirai?
Yes. The Delphi TC2283 front right lower control arm with ball joint fits the 2016-2020 Toyota Mirai. For other cars, look up your own in the "Vehicles it fits" section.
Is the Delphi TC2283 for the left or right side?
The Delphi TC2283 is the front right lower arm. The front left side takes its own separate control arm, and this listing is one arm.
Is this Delphi lower control arm made of steel?
Yes. This front right lower control arm is steel with a stamped construction, and anti-corrosion protection is applied to each part.
How can I tell if a front lower control arm or its ball joint is worn?
Common signs are a clunk over bumps, uneven tire wear or loose-feeling steering. A shop can test joint play, since that check needs the vehicle raised.
How does Delphi test the TC2283 control arm?
Each arm gets 100% crack detection and ultrasonic flaw detection, and the ball studs are machined to micron tolerances. Testing also covers temperatures below -40 °C and above 120 °C.
