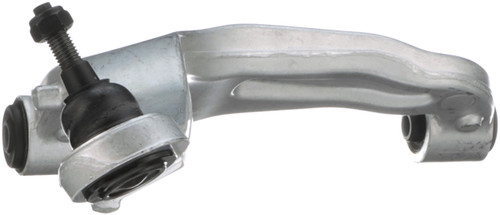

Delphi TC7247 rear right upper control arm with ball joint for the 2003-2004 Cadillac CTS V6 3.2L, the 2004-2005 CTS V8 5.7L, the 2004-2007 CTS V6 3.6L, the 2005-2007 CTS V6 2.8L and the 2006-2007 CTS V8 6.0L locates the rear right wheel and lets it move with the road. Sold as a control arm and ball joint assembly, it replaces the arm and the joint as one unit.
- Withstands temperatures below -40 degrees C and over 120 degrees C, plus 720 hours of salt spray exposure
- Delphi control arms get 100% crack detection and ultrasonic flaw detection to confirm the materials match specification
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot-welded arm for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC7247 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: the 2003-2004 Cadillac CTS V6 3.2L, the 2004-2005 CTS V8 5.7L, the 2004-2007 CTS V6 3.6L, the 2005-2007 CTS V6 2.8L and the 2006-2007 CTS V8 6.0L
- Position: Rear right upper
- Condition: New
A clunk from the rear over bumps, uneven tire wear or loose handling can mean this arm or its ball joint is worn, though a rear shock absorber or a wheel bearing may be behind them, so pin down the source before replacing it. Rear upper arms are usually changed as a pair, and this listing is one arm for the right side.
Fits
This is a direct-fit replacement control arm for the 2003-2004 Cadillac CTS V6 3.2L, the 2004-2005 CTS V8 5.7L, the 2004-2007 CTS V6 3.6L, the 2005-2007 CTS V6 2.8L and the 2006-2007 CTS V8 6.0L.
Specifications
Fit and size
- Position: Rear right upper
- Quantity per vehicle: 1
Build and materials
- Type: control arm with ball joint, robot-welded
- Corrosion protection: anti-corrosion protection on each part
- Condition: New
In the box
One control arm with ball joint. This listing holds one, and the rear right upper position takes one; the left side is a separate part.
Interchange: 522-490
25684652 · CB90508 · CB90508PR · RK622080 · CMS501177
This part cross-references / interchanges with the following part numbers:
522-490, 25684652, CB90508, CB90508PR, RK622080, CMS501177
Frequently Asked Questions
Is Delphi TC7247 a control arm for the 2004-2007 Cadillac CTS V6 3.6L?
Yes. Delphi TC7247 is a rear right upper control arm with ball joint that fits the 2004-2007 Cadillac CTS V6 3.6L.
Does this rear right upper control arm come with the ball joint?
Yes. This listing is a single control arm with the ball joint already part of the assembly, made for the rear right upper position.
How are the ball studs made on the Delphi TC7247?
Delphi machines the ball studs of the TC7247 to micron tolerances. The aim is durability and smooth joint operation.
Does the Delphi TC7247 control arm have corrosion protection?
Yes. Anti-corrosion protection is applied to each part, and Delphi parts are exposed to 720 hours of salt spray in testing.
Does Delphi TC7247 replace CB90508?
Yes. CB90508 is one of the other-brand numbers Delphi TC7247 replaces, and the Interchange line lists the rest.
