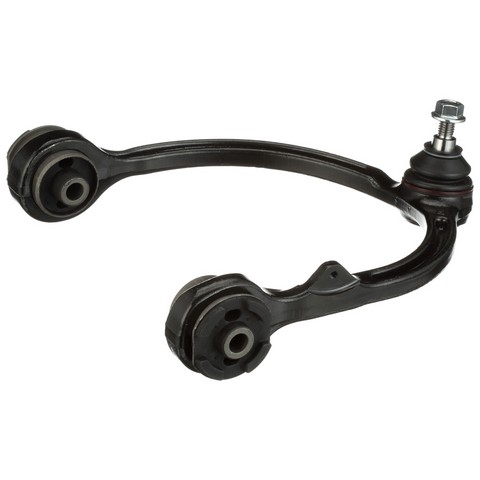

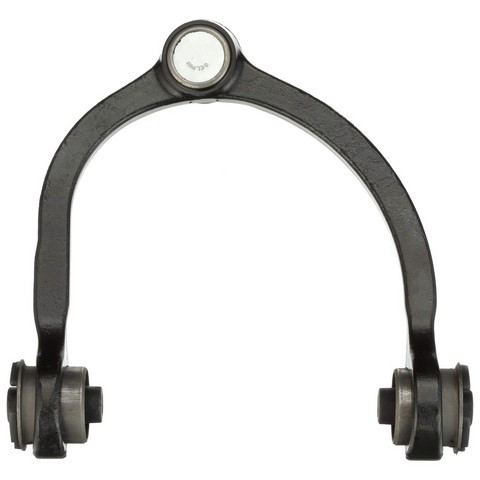

Delphi TC5686 front right upper control arm with ball joint for the 2007-2019 Dodge Charger and other vehicles links the front right wheel to the suspension and lets it pivot. As a control arm and ball joint assembly, it comes with the ball joint already on the arm, so the two are replaced as one unit.
- Tested below -40 degrees C and over 120 degrees C, and exposed to 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on every arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot-welded arm for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC5686 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2007-2019 Dodge Charger and other vehicles
- Position: Front right upper
- Condition: New
A clunk over bumps, loose steering or uneven front tire wear can mean this arm or its ball joint is worn, though a worn sway bar link or tie rod end can be behind some of them.
Fits
The vehicles it fits include the 2007-2019 Dodge Charger and the 2005-2019 Chrysler 300, and it also works as a Dodge Challenger control arm for 2017-2019. Each takes one for the front right upper position. Open the "Vehicles it fits" section to check your exact model and engine.
This listing is one arm; the left side is a separate part, and both sides are normally replaced together.
Specifications
Fit and size
- Position: Front right upper
- Quantity per vehicle: 1
Build and materials
- Type: Control arm with ball joint
- Construction: Robot-welded arm, ball studs machined to micron tolerances
- Finish: Anti-corrosion protection on each part
- Condition: New
Interchange: 622.63829 · 52-1704
4895 668AA · 4895 668AB · 5180 596AB · 5180 596AC · CB81128 · CB81128PR · RK621538 · CMS251009 · GS251009
This part cross-references / interchanges with the following part numbers:
622.63829, 4895 668AA, 4895 668AB, 5180 596AB, 5180 596AC, 52-1704, CB81128, CB81128PR, RK621538, CMS251009, GS251009
Frequently Asked Questions
Is this a 2007-2019 Dodge Charger control arm for the front right side?
Yes. Delphi TC5686 is the front right upper control arm with ball joint for the 2007-2019 Dodge Charger, and the Charger takes one in that position.
Is this a 2005-2019 Chrysler 300 control arm for the front right upper position?
Yes. Delphi TC5686 fits the 2005-2019 Chrysler 300 at the front right upper position; the left side is a separate part.
How are the ball studs on this front right upper arm made?
The ball studs are machined to micron tolerances, which is meant to give durable, smooth joint operation.
How can I tell if this front right upper control arm with ball joint is worn?
With the engine off and cool, look for cracks, rust or bent metal on the arm. A clunk over bumps or loose steering can mean wear, and a shop can check the ball joint for play.
What testing does a Delphi control arm go through?
Each arm gets 100% crack detection and ultrasonic flaw detection, and the arms are welded by robot. The parts are exposed to 720 hours of salt spray.
