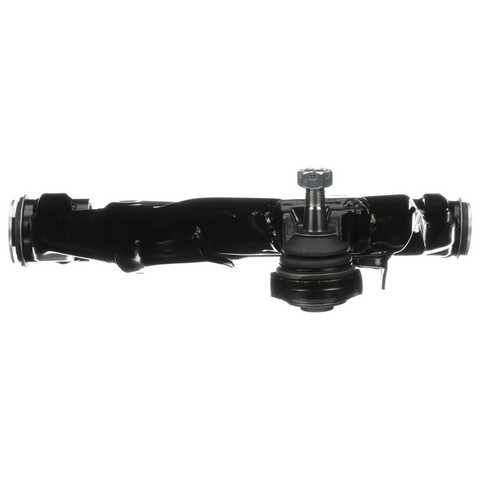

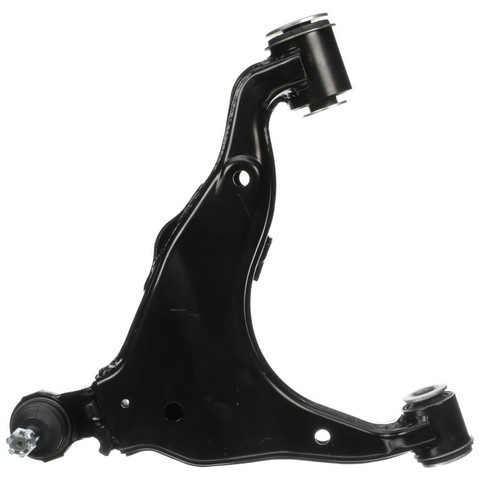

Delphi TC5789 front left lower control arm with ball joint for the 2005-2015 Toyota Tacoma connects the wheel to the frame. As a control arm and ball joint assembly, it joins the arm and its ball joint in one piece.
- Tested below -40 degrees C and over 120 degrees C, and exposed to 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on every Delphi control arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot welding for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC5789 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2005-2015 Toyota Tacoma
- Position: Front left lower
- Condition: New
A worn arm or ball joint can show up as a clunk over bumps, uneven tire wear or a loose steering feel. Worn sway bar links, tie rod ends, struts or wheel bearings can be behind those signs too, so find the cause before buying.
Fits
This arm fits the 2005-2015 Toyota Tacoma. It takes one on each side of the front axle; this listing is the front left, the front right is a separate part, and the pair is normally replaced at the same time.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 for this position
Build and materials
- Type: control arm with ball joint
- Welding: robot welded
- Corrosion protection: anti-corrosion protection on each part
- Condition: New
Interchange: 102-6431 · 623.44064 · 522-719 · 48069-04040 · 48069-04050
CB74063 · RK621294 · CMS861038 · GS861038 · JTC2523
This part cross-references / interchanges with the following part numbers:
102-6431, 623.44064, 522-719, CB74063, RK621294, CMS861038, GS861038, JTC2523, 48069-04040, 48069-04050
