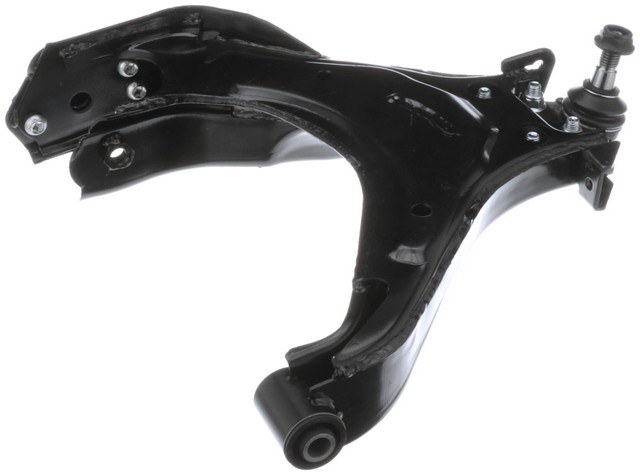

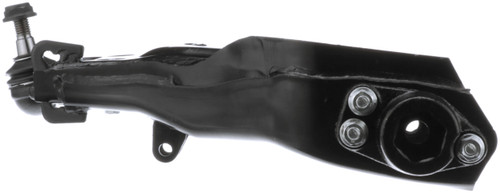

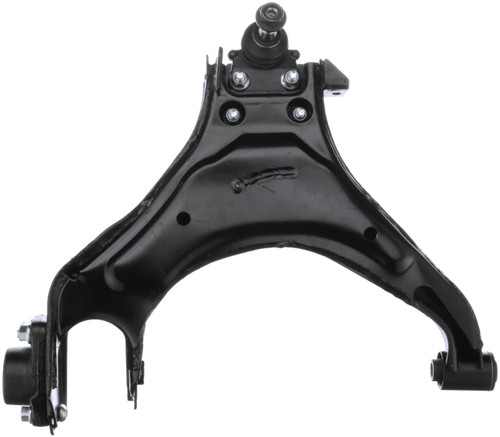

Delphi TC6601 front right lower control arm with ball joint for the 2004-2012 Chevrolet Colorado and other vehicles links the front right wheel to the suspension. Delphi supplies it as a control arm and ball joint assembly, so the arm and the joint come as one unit.
- Withstands temperatures below -40 degrees C and over 120 degrees C, and 720 hours of salt spray, in testing
- 100% crack detection and ultrasonic flaw detection on each control arm
- Ball studs machined to micron tolerances for smooth joint operation
- Robot-welded control arm for consistent quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC6601 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2004-2012 Chevrolet Colorado and other vehicles
- Position: Front right lower
- Condition: New
Clunking over bumps, uneven tire wear or loose steering can mean a worn lower control arm or ball joint. Worn sway bar links, tie rod ends, struts or a wheel bearing can be behind these signs too, so find the cause before buying. Both front sides are normally replaced together; this listing is one arm for the front right.
Fits
It fits the 2004-2012 Chevrolet Colorado and the 2004-2012 GMC Canyon, one arm per vehicle for the front right side. The front left is ordered separately.
Specifications
Fit and size
- Position: Front right lower
- Quantity per vehicle: 1
Build and materials
- Type: Control arm with ball joint
- Construction: Robot-welded
- Finish: Anti-corrosion protection
- Condition: New
Interchange: 52-1592
15104114 · CB90194 · CB90194PR · RK641494 · CMS50139
This part cross-references / interchanges with the following part numbers:
52-1592, 15104114, CB90194, CB90194PR, RK641494, CMS50139
Frequently Asked Questions
Does the Delphi TC6601 control arm fit the 2004-2012 GMC Canyon?
Yes. Delphi TC6601 fits the 2004-2012 GMC Canyon as a front right lower control arm with ball joint, one per vehicle for that side.
Which side does this lower control arm go on?
This control arm is for the front right lower position. The front left uses a separate part, so this listing covers one side only.
What can a worn lower control arm or ball joint cause?
Clunking over bumps, uneven tire wear or loose steering can mean a worn arm or joint. With the engine off, look for cracks or rust on the arm; a shop can test the joint for play.
Does this Delphi control arm have corrosion protection?
Yes. Anti-corrosion protection is applied to each part, and Delphi parts are exposed to 720 hours of salt spray in testing.
Is Delphi TC6601 interchangeable with number 52-1592?
Yes. 52-1592 is listed as an interchange number for Delphi TC6601.
