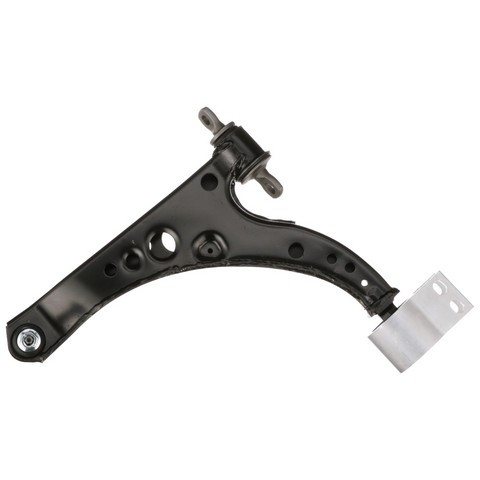

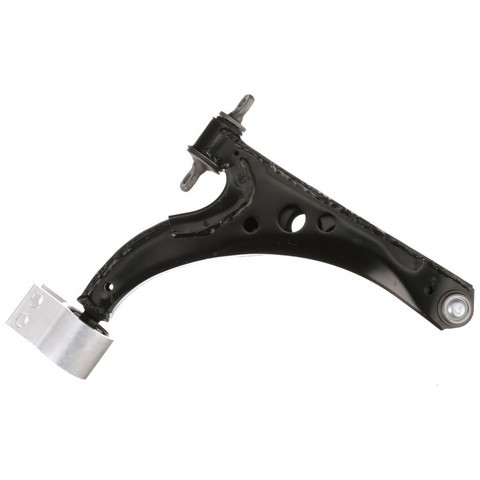

Delphi TC6805 front left lower control arm with ball joint for the 2016-2019 Chevrolet Cruze links the steering knuckle to the car body. This Delphi control arm is sold as a control arm and ball joint assembly, so the arm and the joint are replaced as one unit.
- Tested to withstand temperatures below -40 °C and over 120 °C and 720 hours of salt spray exposure
- 100% crack detection and ultrasonic flaw detection on the control arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot-welded control arm for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC6805 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2016-2019 Chevrolet Cruze
- Position: Front Left Lower
- Condition: New
A worn control arm or ball joint can show up as a clunk over bumps, loose or wandering steering, or uneven tire wear. Before you replace the arm, rule out worn sway bar links, strut mounts and tie rod ends, since those parts can bring on similar noises and handling changes.
Fits
It is a Chevy Cruze control arm replacement for 2016-2019 models, and the car takes one at the front left. The front left and right lower arms are normally replaced together, but this listing is one arm, the front left; the front right is a separate part.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 for this position
- Sold individually
Build and materials
- Construction: robot-welded control arm with ball joint
- Corrosion protection: anti-corrosion protection on each part
- Condition: New
Interchange: 39001025 · 39021472 · 39089342 · 39089344 · CB91543 · CMS501255
This part cross-references / interchanges with the following part numbers:
39001025, 39021472, 39089342, 39089344, CB91543, CMS501255
Frequently Asked Questions
Is this the 2017 Chevy Cruze lower control arm for the front left?
Yes. Delphi TC6805 is the front left lower control arm with ball joint for the 2016-2019 Chevrolet Cruze, which includes the 2017 model year.
Do I need a second Cruze lower arm for the other side of a 2016-2019 Chevrolet Cruze?
Yes, the front right side takes its own separate arm. This listing is only the front left lower arm, and the two are normally replaced together.
What protects Delphi TC6805 from rust?
Anti-corrosion protection is applied to each part. Delphi parts are also exposed to 720 hours of salt spray in testing.
How are these control arms checked for flaws?
Every arm goes through 100% crack detection and ultrasonic flaw detection. The ball studs are machined to micron tolerances for smooth joint operation.
Does Delphi TC6805 replace the CB91543 control arm?
Yes. CB91543 is one of the other numbers listed for Delphi TC6805, a front left lower control arm with ball joint.
