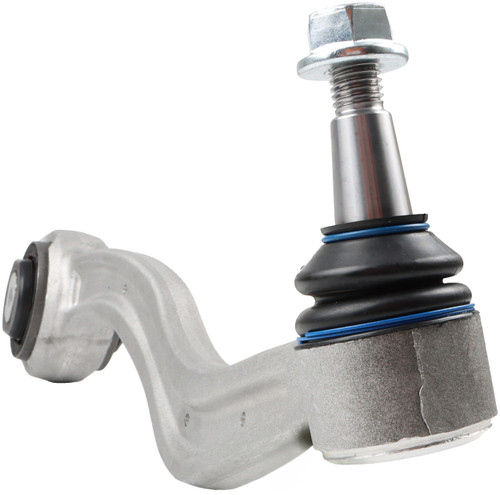

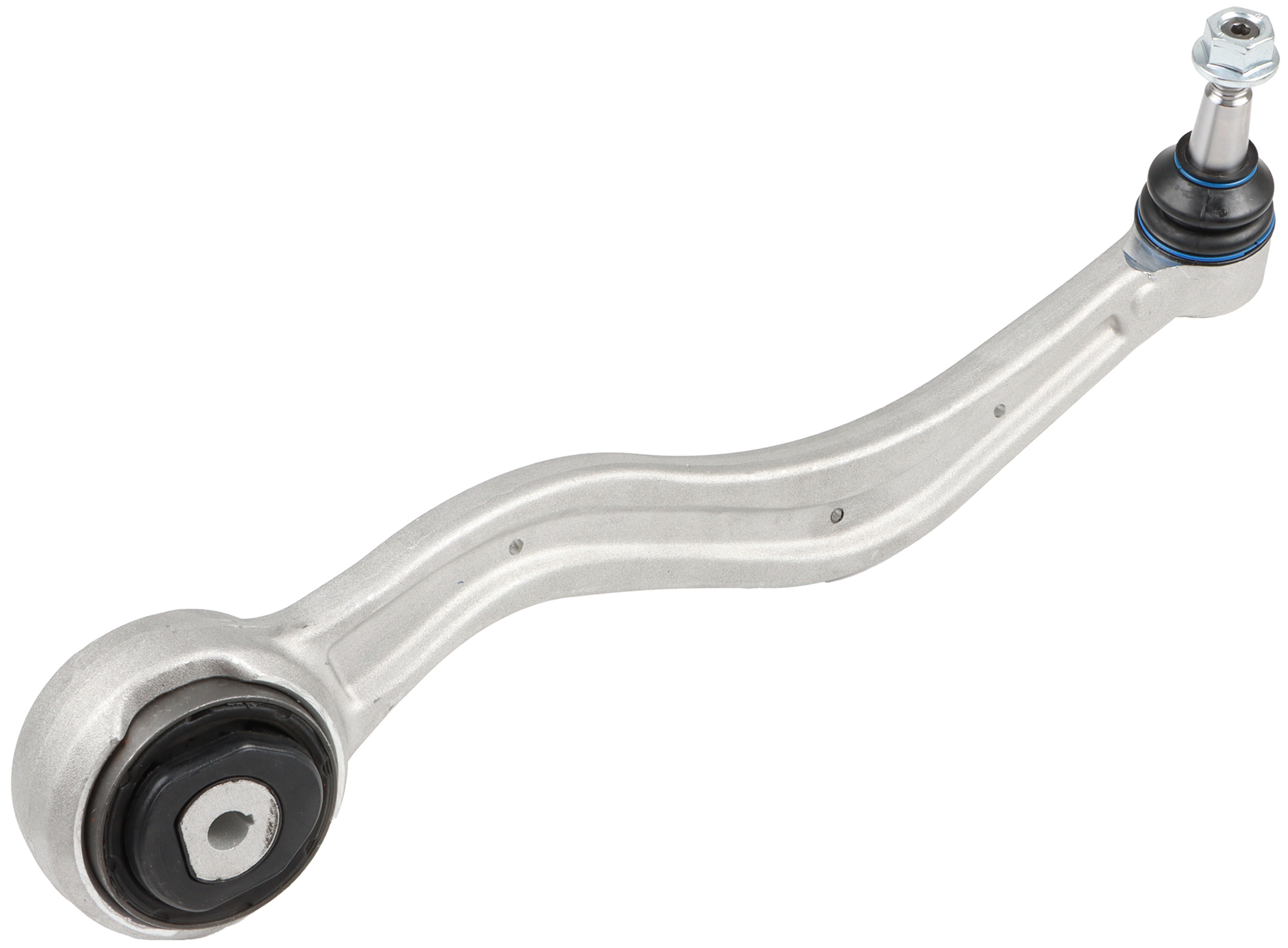

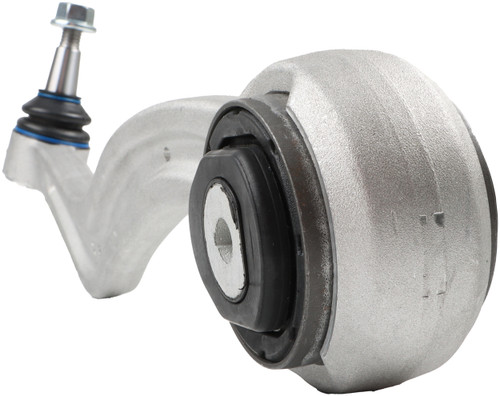

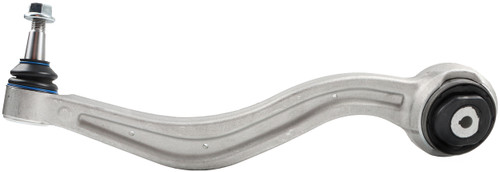

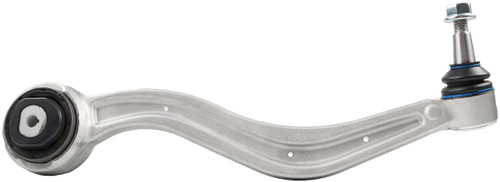

Delphi TC9035 front right lower control arm with ball joint for the 2013-2019 Cadillac ATS connects the wheel's steering knuckle to the car's body. This Delphi control arm, also called a control arm and ball joint assembly, includes the ball joint.
- Withstands temperatures below -40 degrees C and over 120 degrees C, plus 720 hours of salt spray exposure
- 100% crack detection and ultrasonic flaw detection on every control arm
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Robot-welded for consistent performance and quality
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC9035 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2013-2019 Cadillac ATS
- Position: Front Right Lower Forward
- Condition: New
A clunk over bumps, loose or wandering steering, or uneven front tire wear can mean the arm or its ball joint is worn. These signs alone do not prove this arm is at fault, since a worn sway bar link can make similar noises.
Fits
It fits the 2013-2019 Cadillac ATS, and this side takes one. This listing is the front right arm only; the front left is a separate part ordered on its own, and the two are normally replaced together.
Specifications
Fit and size
- Position: front right lower forward
- Quantity per vehicle: 1
Build and materials
- Type: control arm with ball joint assembly
- Welding: robot-welded
- Ball studs: machined to micron tolerances
- Finish: anti-corrosion protection
- Condition: new
Interchange: 526-244
22912811 · 22981337 · 23462001 · RK623979 · CMS501282 · X06CJ1214
This part cross-references / interchanges with the following part numbers:
526-244, 22912811, 22981337, 23462001, RK623979, CMS501282, X06CJ1214
Frequently Asked Questions
Is this the right control arm for a 2013 Cadillac ATS?
Yes. Delphi TC9035 fits the 2013-2019 Cadillac ATS as the front right lower forward arm only; the front left is a separate part.
Does the TC9035 arm come with the ball joint attached?
Yes. Delphi TC9035 is sold with the ball joint included, as a single front right lower arm.
How is this arm tested for temperature and corrosion?
It is built to withstand temperatures below -40 degrees C and over 120 degrees C and has been exposed to 720 hours of salt spray. Anti-corrosion protection is applied to each part.
Could a clunk over bumps mean this front lower arm is worn?
It can, because a worn arm or ball joint may clunk or loosen the steering. Since this affects steering and suspension, have the car inspected promptly instead of driving on it.
Is Delphi TC9035 the same as 526-244?
Yes. 526-244 is one of the numbers this arm replaces, along with 22912811, 22981337 and the others on the Interchange line.
