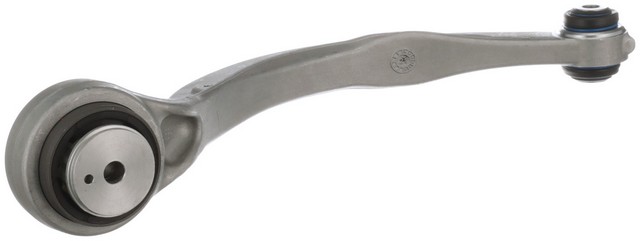

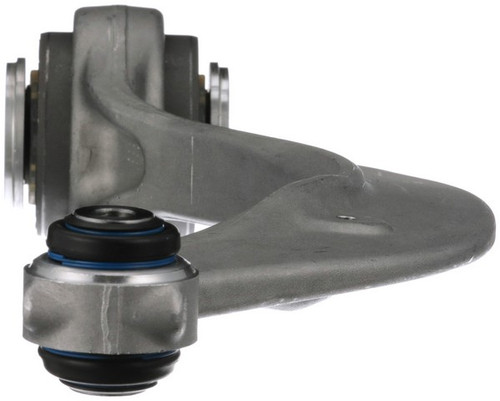

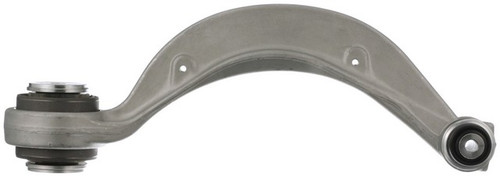

Delphi TC6933 front lower control arm for the 2016-2021 Jaguar XF and other vehicles connects the wheel assembly to the chassis. Dimensional and material analysis behind the design is aimed at close compatibility with the OE part.
A clunk over bumps, uneven tire wear or a loose, wandering feel can mean this control arm or its bushings are worn, though a tie rod end or sway bar link in poor shape can also be behind them, so find the cause first. Change the arms as a pair on the same axle; this listing is a single arm.
It is a lower control arm for the 2016-2021 Jaguar XF and the 2017-2020 Jaguar XE, and each car takes two.
Fit and size
Build and materials
One control arm with its rubber bushings. Mounting hardware and a grease fitting are not included, so plan on new bolts and nuts.
Interchange: 527-091
1028311 · T2H24313 · T2H3196 · KSC6336 · CMS101566
This part cross-references / interchanges with the following part numbers:
Is this a control arm for the 2016-2021 Jaguar XF?
Yes. Delphi TC6933 fits the 2016-2021 Jaguar XF and the 2017-2020 Jaguar XE, and it is the front lower forward position on both.
Does the Delphi TC6933 come with bolts or a grease fitting?
No. This Delphi TC6933 includes rubber bushings, but mounting hardware and a grease fitting are not included, so plan on new fasteners.
Is this Delphi control arm made of aluminum or steel?
Aluminum. The arm material is aluminum with casting/forged construction, rubber bushings and anti-corrosion protection applied to the part.
How is the Delphi TC6933 suspension control arm tested?
Delphi control arms get 100% crack and ultrasonic flaw detection. The part is tested from below -40 °C to over 120 °C and through 720 hours of salt spray.
What size are the bushings on this control arm?
The rubber bushings have inside diameters of 14.50 mm (0.57 in) and 12.00 mm (0.47 in), and lengths of 85.00 mm (3.34 in) and 54.00 mm (2.12 in).
