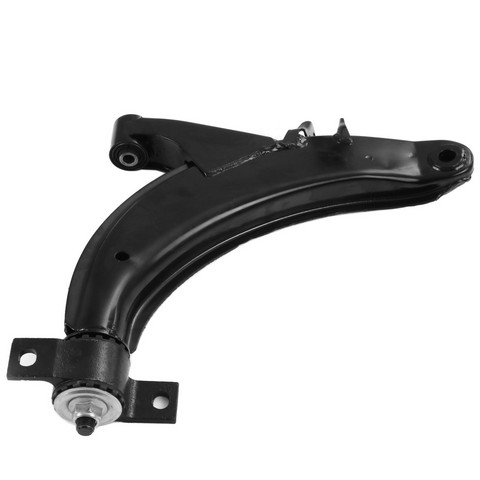

Delphi TC7760 front right control arm for the 2000-2004 Subaru Outback and other vehicles connects the front right wheel to the chassis and lets it move with the suspension. Also known as a suspension control arm, it is made for the front right side.
- Tested to withstand temperatures below -40 degrees C and over 120 degrees C and 720 hours of salt spray
- 100% crack detection and ultrasonic flaw detection on the arm's material
- Robot welding for consistent performance and quality
- Ball studs machined to micron tolerances for durability and smooth joint operation
- Anti-corrosion protection applied to each part
Quick facts
- Part: Delphi TC7760 control arm
- Also called: suspension control arm
- Fits: 2000-2004 Subaru Outback and other vehicles
- Position: Front right
- Condition: New
A clunk over bumps, vague steering or uneven front tire wear can mean a worn control arm, but a loose tie rod end or a tired strut mount can produce similar symptoms. Before you replace this arm, rule out those parts, a sway bar link, and tire or alignment problems; a shop can inspect the front suspension for you.
Fits
Listed for a wide range of Subaru models, this Delphi control arm covers the 2000-2004 Subaru Outback, the 1990-2004 Subaru Legacy and the 1998-2000 Subaru Forester, and each takes one at the front right. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one arm; the front left is a separate part, and the two arms on the front axle are normally replaced at the same time.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Sold individually: one control arm per listing
Build and materials
- Condition: New
- Construction: robot-welded
- Ball studs: machined to micron tolerances
- Corrosion protection: anti-corrosion protection on each part
Interchange: 102-6627 · 520-478 · 20200-AA200 · 20200-AC200F · 32 00 5819 · 20020-0AC200F · 20200-AA040
CA72024 · CA72024PR · RK640740 · CMS80103
This part cross-references / interchanges with the following part numbers:
102-6627, 520-478, CA72024, CA72024PR, RK640740, CMS80103, 20200-AA200, 20200-AC200F, 32 00 5819, 20020-0AC200F, 20200-AA040
Frequently Asked Questions
Is this the right Subaru Forester control arm for 1998-2000 models?
Yes. Delphi TC7760 is a front right control arm listed for the 1998-2000 Subaru Forester, one per vehicle. For another model, open the "Vehicles it fits" section.
Which side does the Delphi TC7760 control arm go on?
The front right. Delphi TC7760 is sold as one arm, and the front left side needs its own separate control arm.
How is this front right control arm tested for heat, cold and salt?
The arm withstands temperatures below -40 degrees C and over 120 degrees C and is exposed to 720 hours of salt spray. Each one also gets 100% crack and ultrasonic flaw detection.
Can a worn front right control arm cause a clunk over bumps?
Yes, a worn arm can clunk over bumps, though other suspension parts can too. If you hear it, have the car checked promptly rather than driving on it.
Is 20200-AA200 a cross-reference for the Delphi TC7760 front right control arm?
Yes. 20200-AA200 is on the Interchange line for Delphi TC7760, along with 102-6627 and 520-478.
