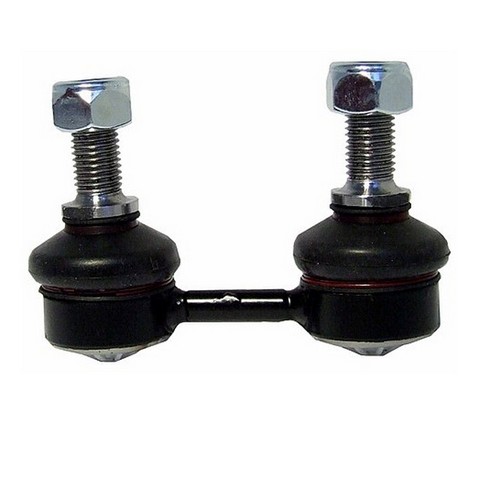

Delphi TC1556 front sway bar link for the 1996-2000 Toyota RAV4 links the front sway bar to the suspension to limit body roll. The Delphi sway bar link is made with ultrasonic molding to help prevent future weld breakage.
- Fatigue tested to avoid failure
- Machined to micron tolerances for durability and smooth joint operation
- Anti-corrosion protection applied to each part
- Tested at temperatures below -40 degrees C and over 120 degrees C, and exposed to 720 hours of salt spray
Quick facts
- Part: Delphi TC1556 sway bar link
- Also called: stabilizer bar link
- Fits: 1996-2000 Toyota RAV4
- Position: Front
- Condition: New
A worn link can show up as a clunk or rattle over bumps, or a loose feel in corners. Those signs alone do not prove the link is at fault, since a worn suspension bushing can make similar noises.
Fits
This front sway bar link fits the 1996-2000 Toyota RAV4.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
Build and materials
- Type: Sway bar link
- Condition: New
- Corrosion protection: anti-corrosion protection on each part
In the box
One front sway bar link, sold individually. The 1996-2000 Toyota RAV4 takes two, so order two and fit them together.
Interchange: 101-4875 · TY-L697 · 545-1647 · 48820-42010
LS01004 · SL74275 · K80601 · MK80601 · JTS182
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
101-4875, TY-L697, LS01004, SL74275, K80601, MK80601, 545-1647, JTS182, 48820-42010
Frequently Asked Questions
Does Delphi TC1556 fit the sway bar on a 1996-2000 Toyota RAV4?
Yes, Delphi TC1556 is a front sway bar link for the 1996-2000 Toyota RAV4; it replaces the link only, not the sway bar itself.
What temperature and salt spray testing do these links go through?
Delphi TC1556 links are tested at temperatures below -40 degrees C and over 120 degrees C, and exposed to 720 hours of salt spray. Each part also gets anti-corrosion protection.
Is a stabilizer bar link the same part as this sway bar link?
Yes, stabilizer bar link is another name for this front sway bar link, and both connect the sway bar to the suspension.
What does a worn front sway bar link sound like?
A worn link can cause a rattle or clunk over bumps, or a loose feel in turns. With the engine off and cool, you can look for play in the joint or visible damage.
How closely are these front sway bar links machined?
Delphi machines these links to micron tolerances for durability and smooth joint operation. Each link is also fatigue tested to avoid failure.
