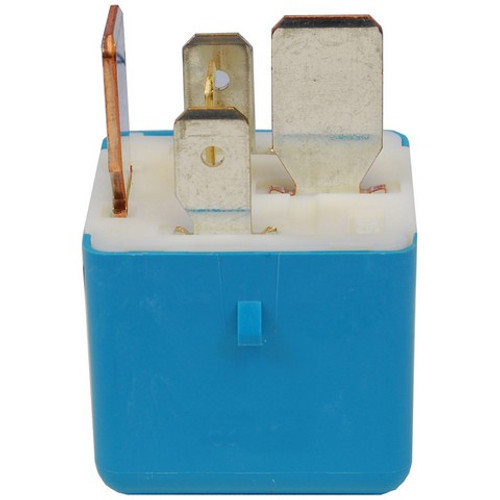

Switch power to fog light, fuel pump, heated seat and HVAC blower motor circuits with the DENSO First Time Fit Relay, part number 567-0004. It fits many vehicles, among them the 2003-2008 Toyota Corolla, 2002-2007 Toyota Camry and 2001-2007 Toyota RAV4. See the "Vehicles it fits" section for the full list and engine details.
A relay lets a low-current control signal open and close a higher-current circuit, so the switch or module that commands it does not carry the full electrical load. DENSO says its First Time Fit relays are no different from the OE relays it has manufactured for more than 60 years: built to be quiet, efficient and reliable.
- Lead-free, solderless construction: helps prevent heat shock and arcing inside the relay.
- Controlled contact force and self-adjusting air gap: designed to extend the life of the internal components.
- Industry-standard design: uses a standard footprint and standard packaging.
- Long cycle life: DENSO designs and builds these relays to outlast its closest competitor by at least ten times the life cycles.
A relay may need replacing if its circuit stops working, cuts in and out, or stays on after it is switched off. A blown fuse, a faulty switch or damaged wiring can cause the same symptoms, so diagnose the circuit before you replace the relay.
This part cross-references / interchanges with the following part numbers:
567-0004, 1R1477, 1R1696, R4741, AR484, RY-348, 156700-3220, 90080-87026, 90987-02020, 90987-02022, 90987-02027, 20141
Frequently Asked Questions
What vehicles does the DENSO 567-0004 relay fit?
It fits many vehicles, among them the 2003-2008 Toyota Corolla, 2002-2007 Toyota Camry and 2001-2007 Toyota RAV4. The "Vehicles it fits" section has the full list.
Is this a starter relay for the 2003-2008 Toyota Corolla?
This relay is listed as a fog light, fuel pump, heated seat and HVAC blower motor relay, not as a starter relay. See the "Vehicles it fits" section for its 2003-2008 Toyota Corolla applications.
What does a relay do?
It uses a low-current control signal to switch a higher-current circuit, such as the fuel pump or blower motor, so the control switch does not carry the full electrical load.
What makes DENSO First Time Fit relays different?
They use lead-free, solderless construction to help prevent heat shock and arcing. Controlled contact force and a self-adjusting air gap are designed to extend the life of the internal components.
What are signs a relay may need replacing?
A circuit that stops working, cuts in and out, or stays on after it is switched off can be a sign of a failed relay. Fuses, switches and wiring can cause the same symptoms, so diagnose the circuit first.
