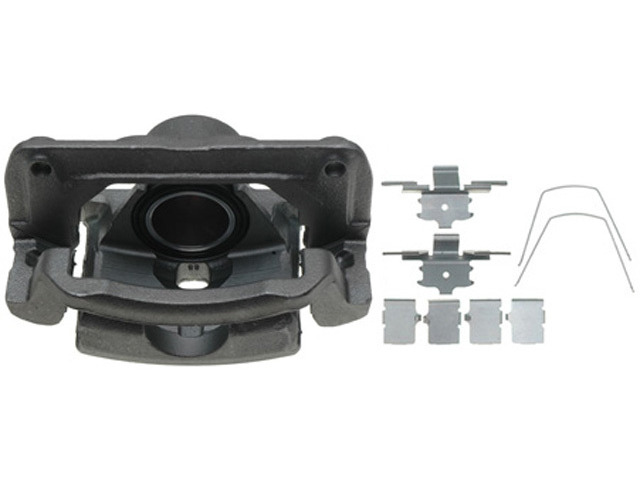

Clamp the brake pads against the rotor with the Raybestos R-Line Disc Brake Caliper FRC11910, a remanufactured semi-loaded caliper and bracket assembly for the front right corner. It installs as a direct-fit replacement for the listed applications: the 2006-2012 Ford Fusion [All], 2006 Lincoln Zephyr [All], 2006-2013 Mazda 6 [All], 2006-2011 Mercury Milan [All], and 2007-2012 Lincoln MKZ [All].
Remanufactured from OE cores: rebuilt using all-new rubber and sealing components, while castings, guide pins, and brackets are carefully inspected before reuse.
New leak-prevention parts: seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new materials.
EPDM70 rubber components: chosen for heat resistance, performance, and durability.
Tested and OE-matched: 100% pressure tested, with materials matching OE specifications.
Specs: cast-iron caliper casting, 2 in (50.8 mm) piston, and an M8x1 bleeder screw thread. Signs the original caliper may need replacing include fluid leaks at the piston or bleeder, a sticking piston with uneven pad wear, or a pull to one side; if a failed caliper is the cause, this replaces it. Sold as one front-right unit; replacing both front calipers as a matched pair is recommended for balanced braking. Country of origin: Mexico.
It is a remanufactured R-Line semi-loaded disc brake caliper and bracket assembly for the front right position, rebuilt from an OE core with all-new rubber and sealing components.
Which vehicles does this caliper fit?
It fits the 2006-2012 Ford Fusion, 2006 Lincoln Zephyr, 2006-2013 Mazda 6, 2006-2011 Mercury Milan, and 2007-2012 Lincoln MKZ (all engines). See the Buyer's Guide tab to confirm your vehicle.
Is this a front or rear caliper, and which side?
The catalog lists this unit for the front right position of the listed applications.
What parts are replaced during remanufacturing?
Seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are replaced with new materials. Castings, guide pins, and brackets are inspected before being reused, and each unit is 100% pressure tested.
Do I need to replace both calipers?
This listing is for one front-right caliper. Replacing both front calipers as a matched pair is recommended for even, balanced braking, though it is not strictly required.
