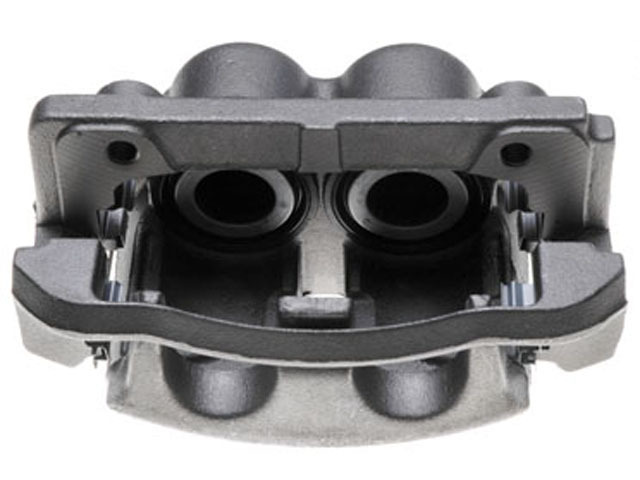

Remanufactured Front Left Brake Caliper for 2004-2008 Ford F-150 & More - Raybestos FRC11798

$142.99

Vehicles this part fits

    Part number: FRC11798
    UPC: 829352540589
    Condition: Refurbished
    Weight: 9.46 LBS
    Item Package Quantity: 1
    $142.99
    Adding to cart… The item has been added

    Have questions?

    Raybestos Brakes Disc Brake Caliper P/N:FRC11798
    Raybestos Brakes Disc Brake Caliper P/N:FRC11798
    $142.99
    $142.99

    Raybestos Brakes FRC11798 front left brake caliper for the 2004-2008 Ford F-150 and other vehicles clamps the brake pads against the rotor to slow the wheel. It is a remanufactured, semi-loaded disc brake caliper and bracket assembly.

    • Raybestos R-Line non-plated remanufactured caliper with all new rubber and sealing components
    • Castings, guide pins and brackets inspected before they are reused
    • Seals, boots, bleeder screws, abutment hardware, banjo bolts and O-rings replaced with new parts
    • Silicone boots for heavy duty applications, where applicable
    • 100% pressure tested
    • EPDM70 rubber components for heat resistance and durability

    Quick facts

    • Part: Raybestos Brakes FRC11798 brake caliper
    • Also called: disc brake caliper
    • Fits: 2004-2008 Ford F-150 and other vehicles
    • Position: Front left
    • Material: Cast iron
    • Condition: Remanufactured

    Pulling to one side, a dragging brake or fluid around the caliper can mean a caliper needs replacing. A worn rotor, worn pads or a damaged brake hose can be behind these signs too, so find the cause before buying.

    Fits

    This caliper fits the 2004-2008 Ford F-150, the 2006-2008 Lincoln Mark LT and the 2004 Ford F-150 Heritage.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per vehicle: 1 (this side)
    • Piston diameter: 53.9 mm (2.122 in)
    • Bleeder screw thread: M10x1
    • Bracket mounting hole: 14 mm, thread pitch 2 mm

    Build and materials

    • Type: Floating, semi-loaded caliper and bracket assembly
    • Casting material: Cast iron
    • Condition: Remanufactured
    • Country of origin: Mexico

    In the box

    One remanufactured semi-loaded caliper and bracket assembly for the front left. The front left takes one; the front right is a separate part, ordered separately, and the two sides are normally replaced together.

    Interchange: 18-B4975 · 99-17954B · 18-P4975 · 141.65076 · 142.65076 · 14-3306 · 11-23183-1
    NBRC3RM

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    18-B4975, 99-17954B, 18-P4975, 141.65076, 142.65076, NBRC3RM, 14-3306, 11-23183-1

    Frequently Asked Questions

    Does the 2004-2008 Ford F-150 brake caliper FRC11798 go on the front left?

    Yes. Raybestos Brakes FRC11798 is the front left caliper for the 2004-2008 Ford F-150. The front right side takes its own caliper, ordered separately.

    Does Raybestos Brakes FRC11798 come with the caliper bracket?

    Yes. Raybestos Brakes FRC11798 is a semi-loaded caliper and bracket assembly, so the bracket is part of the listing. One front left unit is included.

    What size is the piston on this front left caliper?

    The piston diameter is 53.9 mm (2.122 in), and the bleeder screw thread is M10x1.

    Why does my truck pull to one side when I brake, and could the caliper be involved?

    A sticking caliper can be one cause of pulling or uneven pad wear. Fluid leaking at the caliper is another sign; have it checked promptly because it is a brake part.

    Are the rubber parts on this remanufactured caliper new?

    Yes. All rubber and sealing components, such as seals, boots and bleeders, are new, and the rubber components are EPDM70. Each caliper is 100% pressure tested.
