Raybestos Brakes Disc Brake Caliper FRC11953
Raybestos Brakes Disc Brake Caliper FRC11953 - view 2
Raybestos Brakes Disc Brake Caliper FRC11953
Raybestos Brakes Disc Brake Caliper FRC11953 - view 2

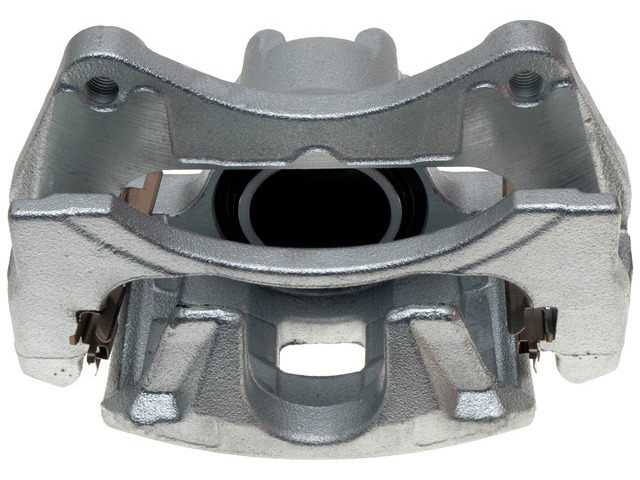

Raybestos Brakes Disc Brake Caliper P/N:FRC11953

Be the first to review this product
$68.99
WARNING:California Proposition 65▾
MPN: FRC11953
UPC: 829352635032
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Raybestos Brakes Disc Brake Caliper P/N:FRC11953
Raybestos Brakes Disc Brake Caliper P/N:FRC11953
$68.99

Replace a worn or leaking front-left brake caliper with the Raybestos R-Line Remanufactured Semi-Loaded Disc Brake Caliper and Bracket Assembly (MPN FRC11953). This front-left unit installs as a direct-fit replacement for the 2007-2010 Chrysler Sebring, 2007-2012 Dodge Caliber, 2007-2017 Jeep Compass, 2007-2017 Jeep Patriot, 2008-2014 Dodge Avenger, and 2011-2014 Chrysler 200 [All engines]. It's a single-piston floating caliper with a cast-iron casting and a 2.250 in (57.150 mm) piston, built with materials matching OE specifications and vehicle-specific designs.

  • Rebuilt with all-new sealing parts: new seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are installed for leak-free operation, while castings, guide pins, and brackets are inspected before reuse.
  • 100% pressure tested: every caliper is pressure tested to help confirm reliable braking performance.
  • EPDM70 rubber components: chosen for heat resistance, performance, and durability; silicone boots are fitted on heavy-duty applications where applicable.
  • Coated finish: the caliper and bracket carry a coated surface finish.

This semi-loaded, friction-ready assembly includes the mounting bracket and new hardware; brake pads are not included. Bleeder screw thread is M7x1.00 and the bracket mounting holes are 12 mm with a 1.5 mm thread pitch. Country of origin: Mexico.

Interchange: 99-17728A · 9917728A · 18-B5032 · 18B5032 · 18-P5032 · 18P5032 · 141.63078 · 14163078 · 5191239AA · SC0207-1 · SC02071 · SC0207-2 · SC02072 · 14-1284 · 141284

Manufacturer part number FRC11953.

This part cross-references / interchanges with the following part numbers:

99-17728A, 18-B5032, 18-P5032, 141.63078, 5191239AA, SC0207-1, SC0207-2, 14-1284

Frequently Asked Questions

Will this caliper fit my vehicle?

It's cataloged for the 2007-2010 Chrysler Sebring, 2007-2012 Dodge Caliber, 2007-2017 Jeep Compass, 2007-2017 Jeep Patriot, 2008-2014 Dodge Avenger, and 2011-2014 Chrysler 200. See the Buyer's Guide tab to confirm your vehicle.

Are brake pads included?

No. This is a semi-loaded, friction-ready caliper that includes the mounting bracket and new hardware, but brake pads must be purchased separately.

Which side does this caliper fit?

This assembly is cataloged for the front-left position.

What is the piston size and type?

It's a single-piston floating caliper with a 2.250 in (57.150 mm) piston diameter and an M7x1.00 bleeder screw thread.

What was replaced during remanufacturing?

New seals, boots, bleeder screws, abutment hardware, banjo bolts, and O-rings are installed for leak-free operation, and each unit is 100% pressure tested before shipping.
