Wagner Brake SX1490 rear brake pad for the 2014-2021 Ram ProMaster 1500, 2014-2021 Ram ProMaster 2500 and 2014-2021 Ram ProMaster 3500 is a SevereDuty pad for vans that stop often and carry heavy loads. This Wagner Brake disc brake pad set goes on the rear axle.
- SevereDuty pads are designed and tested for fleets, police-pursuit use and demanding conditions such as frequent stopping, gear hauling and heavy loads.
- Semi-metallic carbon-based friction material, engineered in-house for long-lasting braking performance.
- OE-style on-vehicle testing for braking performance under extreme heat, frequent stopping and heavy loads.
- OE-style shims and chamfers.
- Wagner OE25 zero-copper friction formulation.
Squealing, grinding, a longer stopping distance or pulling to one side can mean worn pads. Before you replace the pads, rule out a sticking caliper, a worn or scored rotor and a brake fluid leak, since any of them can produce similar noises or pulling. If worn pads turn out to be the cause, this set replaces them.
It is a direct-fit replacement for each of these vans, and the 2014-2021 Ram ProMaster 3500 takes one set.
Specifications
Fit and size
- Position: rear
- Quantity per vehicle: 1 set
Build and materials
- Friction material: semi-metallic
- Friction formulation: Wagner OE25 zero-copper
- Pad wear sensor: electronic, included
- Chamfered edges: yes
- Slotted: no
- Country of origin: Mexico
In the box

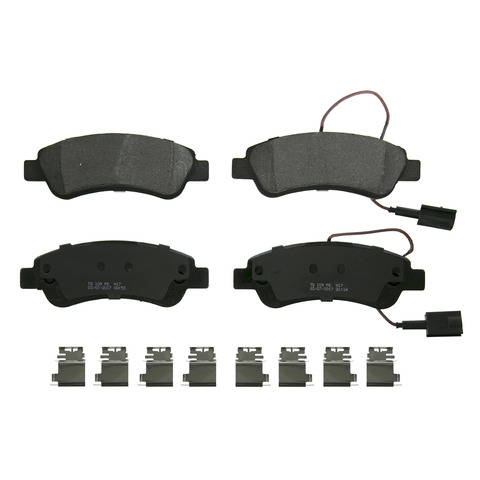

The set comes with pad shims, abutment clips and an electronic pad wear sensor.
Interchange / FMSI:
FMSI: 9017-D1490 · D1490
Interchange: 1214-1490-00 · 1214-1490-01 · 1311-1490-01 · 1311-1490-10 · 1551-1490-00 · 1551-1490-01 · 4000-1490-00 · 4000-1490-01 · SDF1490 · BE1490H · BP1490 · FLD1490 · GMKD1490 · PMD1490 · PMD1490H · 68226919AA · P1490 · SG9017M · SS9017M · 161490 · 171490 · SP1490TRH · WSD1490MH
This part cross-references / interchanges with the following part numbers:
SDF1490, BE1490H, BP1490, FLD1490, GMKD1490, PMD1490, PMD1490H, 68226919AA, P1490, 1214-1490-00, 1214-1490-01, 1311-1490-01, 1311-1490-10, 1551-1490-00, 1551-1490-01, 4000-1490-00, 4000-1490-01, SG9017M, SS9017M, 161490, 171490, SP1490TRH, WSD1490MH, 9017, 9017-D1490, D1490
