Front Brake Rotor for 1990-1995 Jeep Wrangler & More - Bosch 16010138

Be the first to review this product

$57.99

MPN: 16010138

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

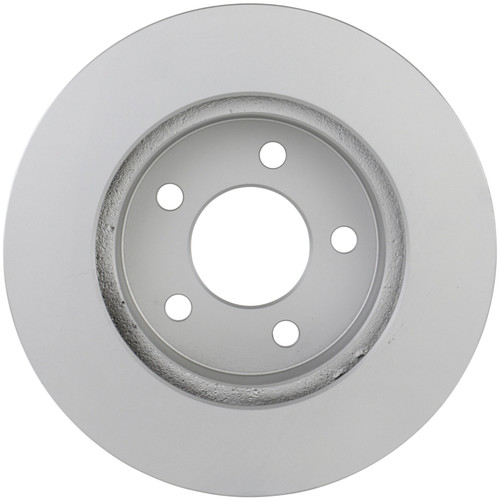

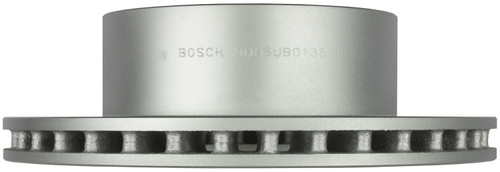

Bosch Disc Brake Rotor P/N:16010138

$57.99

Description

Bosch 16010138 front brake rotor for the 1990-1995 Jeep Wrangler and other vehicles gives the brake pads a vented disc to clamp against. Rotors wear with every stop, and this disc brake rotor replaces a worn or scored one on the front axle.

Heat flowed castings for consistent wear and quiet operation
100% precision balanced to minimize vibration
Tight tolerances with low run-out and DTV specifications for a smooth pedal feel with no pulsation
Vane configuration for heat dissipation from the braking system
Full coating, including the vanes where applicable, protects against corrosion
Factory engraved edge code gives identification and the discard specification

Quick facts

Part: Bosch 16010138 brake rotor
Also called: disc brake rotor
Fits: 1990-1995 Jeep Wrangler and other vehicles
Position: Front
Condition: New

Pedal pulsation, grooves or rust on the rotor face, or noise from the front wheels can mean a rotor is worn. Worn pads or a sticking caliper can make noise too, so the rotor is not always the culprit. This listing is one rotor, and both front sides are normally replaced together.

Fits

The 1990-1995 Jeep Wrangler, the 1990-1999 Jeep Cherokee and the 1993-1998 Jeep Grand Cherokee take this front brake rotor, along with many other vehicles.

Specifications

Fit and size

Position: front
Quantity per vehicle: 2
Nominal thickness: 24 mm
Center bore diameter: 72 mm

Build and materials

Construction: vented
ABS sensor rings: for trouble-free ABS/TCS operation on equipped vehicles
Balance: 100% precision balanced
Coating: full coating including vanes where applicable
Rotor without hub assembly
Condition: new

In the box

One front brake rotor, without a hub assembly. This listing holds one rotor, and the front axle takes two.

Interchange: 52005000 · 52007710 · 52008264 · 52008440

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

52005000, 52007710, 52008264, 52008440

Frequently Asked Questions

Will the Bosch 16010138 work as a brake rotor for the 1993-1998 Jeep Grand Cherokee?

Yes, Bosch 16010138 is a front brake rotor for the 1993-1998 Jeep Grand Cherokee. If your Jeep is a different model or year, look it up on the Buyer's Guide tab with your own year and engine.

Is this a brake rotor for the 1990-1995 Jeep Wrangler, and does the engine matter?

Yes, it fits the front axle of the 1990-1995 Jeep Wrangler, and the engine does not change the fit. The axle takes two rotors.

How thick is the Bosch 16010138 rotor, and what is its center bore?

Bosch 16010138 has a nominal thickness of 24 mm and a center bore of 72 mm. It is a vented rotor sold without a hub assembly.

Do Bosch QuietCast rotors like this one work with ABS and traction control?

Yes. The rotor has ABS sensor rings that allow trouble-free operation of ABS/TCS on vehicles equipped with those systems.

Where do I find the discard specification on this Bosch QuietCast brake rotor?

The factory engraved edge code on the rotor carries its identification and the discard specification. Measure the thickness against that figure during a brake service, with the wheel off.
