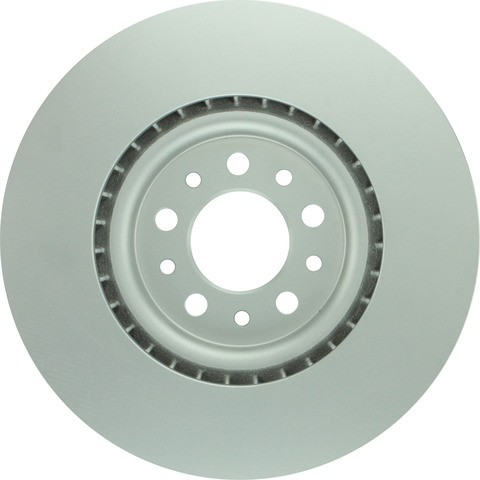

Bosch 16011530 front brake rotor for the 2014-2023 Jeep Cherokee and other vehicles is the vented disc the brake pads clamp against to slow each front wheel.
- Bosch QuietCast brake rotor, 100% precision balanced for smooth operation and minimal vibration
- Heat flowed castings for consistent wear, quiet operation and long life
- Tight tolerances with low run-out and DTV specifications for a smooth pedal feel with no pulsation
- Vane configuration for heat dissipation from the braking system
- Full coating, including the vanes where applicable, to protect against corrosion
- ABS sensor rings for trouble-free operation of ABS/TCS on equipped vehicles
Quick facts
- Part: Bosch 16011530 brake rotor
- Also called: disc brake rotor
- Fits: 2014-2023 Jeep Cherokee and other vehicles
- Position: Front
A pulsing brake pedal or noise under braking can mean a rotor is worn. These signs alone do not prove the rotor is the problem, because a sticking caliper is another common cause.
Fits
The 2014-2023 Jeep Cherokee, the 2023-2026 Jeep Compass and the 2015-2017 Chrysler 200 all take two front rotors, one per front wheel. This listing is one rotor, so order two and fit them together.
Specifications
Fit and size
- Position: front
- Quantity per vehicle: 2
- Nominal thickness: 28 mm
- Center bore diameter: 70 mm
Build and materials
- Construction: vented, rotor without hub assembly
- Coating: full coating, including the vanes where applicable
- ABS sensor ring: for trouble-free ABS and traction control operation
- Balancing: 100% precision balanced
- Edge code: factory engraved, with identification and discard specification
Interchange: 4779884AC · 68242650AB
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
Is this a brake rotor for the 2014-2023 Jeep Cherokee?
Yes. Bosch 16011530 is a front brake rotor for the 2014-2023 Jeep Cherokee, which takes two, one for each front wheel.
Are Bosch QuietCast rotors like this one vented or solid?
This front rotor is vented, with a 28 mm nominal thickness and a 70 mm center bore.
Does this Bosch brake rotor work on ABS and traction control vehicles?
Yes. This rotor has ABS sensor rings for trouble-free operation of ABS/TCS on equipped vehicles.
How can I tell if a Bosch QuietCast premium disc brake rotor is worn out?
Visible grooves or cracks can show wear. The factory-engraved edge code gives the discard specification to measure the rotor against at brake service.
Does Bosch 16011530 replace the 68242650AB rotor number?
Yes. 68242650AB is one of the numbers Bosch 16011530 replaces, along with 4779884AC.
