Front Brake Rotor for 1994-1999 Ford Mustang - Bosch 20010423

$84.99

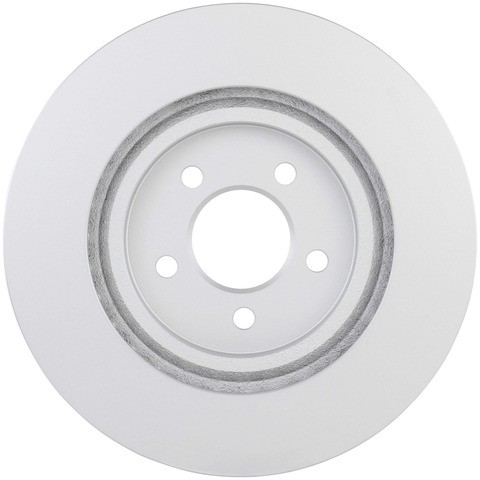

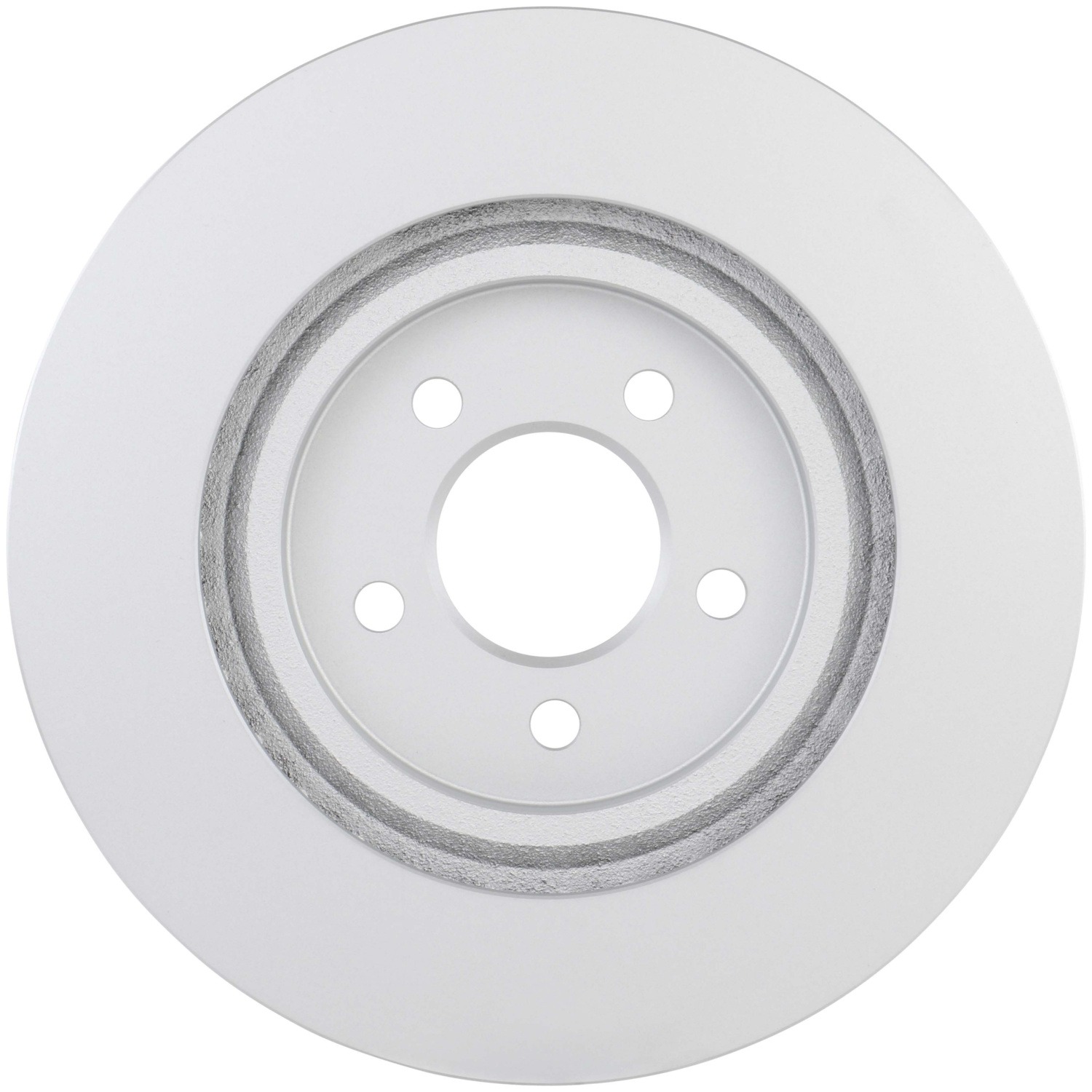

Bosch Disc Brake Rotor 20010423 - view 2

Bosch Disc Brake Rotor 20010423 - view 3

Bosch Disc Brake Rotor 20010423 - view 4

Bosch Disc Brake Rotor 20010423 - view 5

Part number: 20010423

UPC: 077212080830

Condition: New

Weight: 19.70 LBS

Item Package Quantity: 1

$84.99

Current Stock: 7

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Bosch Disc Brake Rotor P/N:20010423

$84.99

Description

Bosch 20010423 front brake rotor for the 1994-1995 Ford Mustang V8 5.0L and the 1996-1999 Mustang V8 4.6L is the vented disc the brake pads clamp to slow the wheel. It is a rotor only, sold without the hub assembly.

100% precision balanced to minimize vibration
Tight tolerances with low run-out and DTV specifications for a smooth pedal feel without pulsation
Heat flowed castings for consistent wear, quiet operation and long life
Vane configuration that dissipates heat from the braking system
Full coating, including the vanes where applicable, to protect against corrosion
Factory engraved edge code with identification and the discard specification

Quick facts

Part: Bosch 20010423 brake rotor
Also called: disc brake rotor
Fits: the 1994-1995 Ford Mustang V8 5.0L and the 1996-1999 Mustang V8 4.6L
Position: Front
Condition: New

A rotor that is grooved, cracked or worn thin can show up as pedal pulsation or vibration when braking. A sticking caliper or worn brake pads can be behind those signs too, so track down the cause before you buy.

Fits

This is a front rotor for the 1994-1995 Ford Mustang V8 5.0L, the 1996-1999 Mustang V8 4.6L, the 2001 Mustang V8 4.6L and the 2003-2004 Mustang V8 4.6L. The car takes two on the front axle; this listing is one rotor, and the other front rotor is normally done at the same time.

Specifications

Fit and size

Position: front
Quantity per vehicle: 2
Thickness: 28 mm (nominal 28 mm)
Center bore diameter: 71.2 mm
Hub assembly: rotor only, without hub assembly

Build and materials

Construction: vented
Balancing: 100% precision balanced
Coating: Premium Full Coating, including vanes where applicable
ABS sensor ring: for trouble-free ABS and traction control operation on equipped vehicles
Condition: new

Interchange: XR3Z1125BC

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

XR3Z1125BC

Buyer's Q&A

Frequently Asked Questions

Is this Bosch brake rotor right for the 1996-1999 Ford Mustang V8 4.6L?

Yes. Bosch 20010423 is listed as a front rotor for the 1996-1999 Ford Mustang V8 4.6L, and that car takes two, one for each front wheel.

Is the Bosch QuietCast brake rotor vented or solid?

Vented. Bosch 20010423 has vented construction, and its vane configuration is meant to dissipate heat from the braking system.

Are Bosch QuietCast rotors coated against rust?

Yes. This rotor carries a Premium Full Coating, including the vanes where applicable, to protect against corrosion.

Does the Bosch QuietCast premium disc brake rotor work with ABS?

Yes. The rotor has ABS sensor rings for trouble-free operation of ABS and traction control on vehicles equipped with those systems.

How do I tell when this front rotor is worn out?

The factory engraved edge code on the Bosch 20010423 includes the discard specification. During a brake service, compare the rotor's measured thickness with it; nominal thickness is 28 mm.
