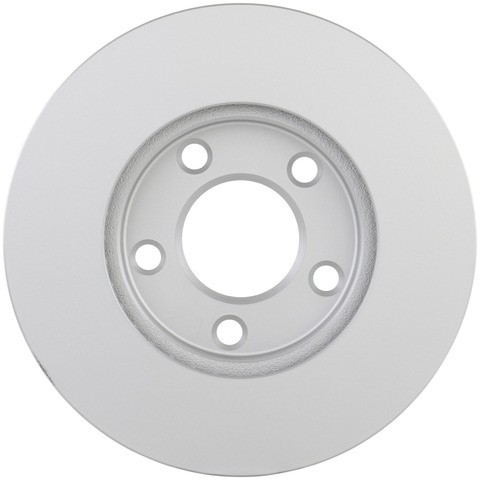

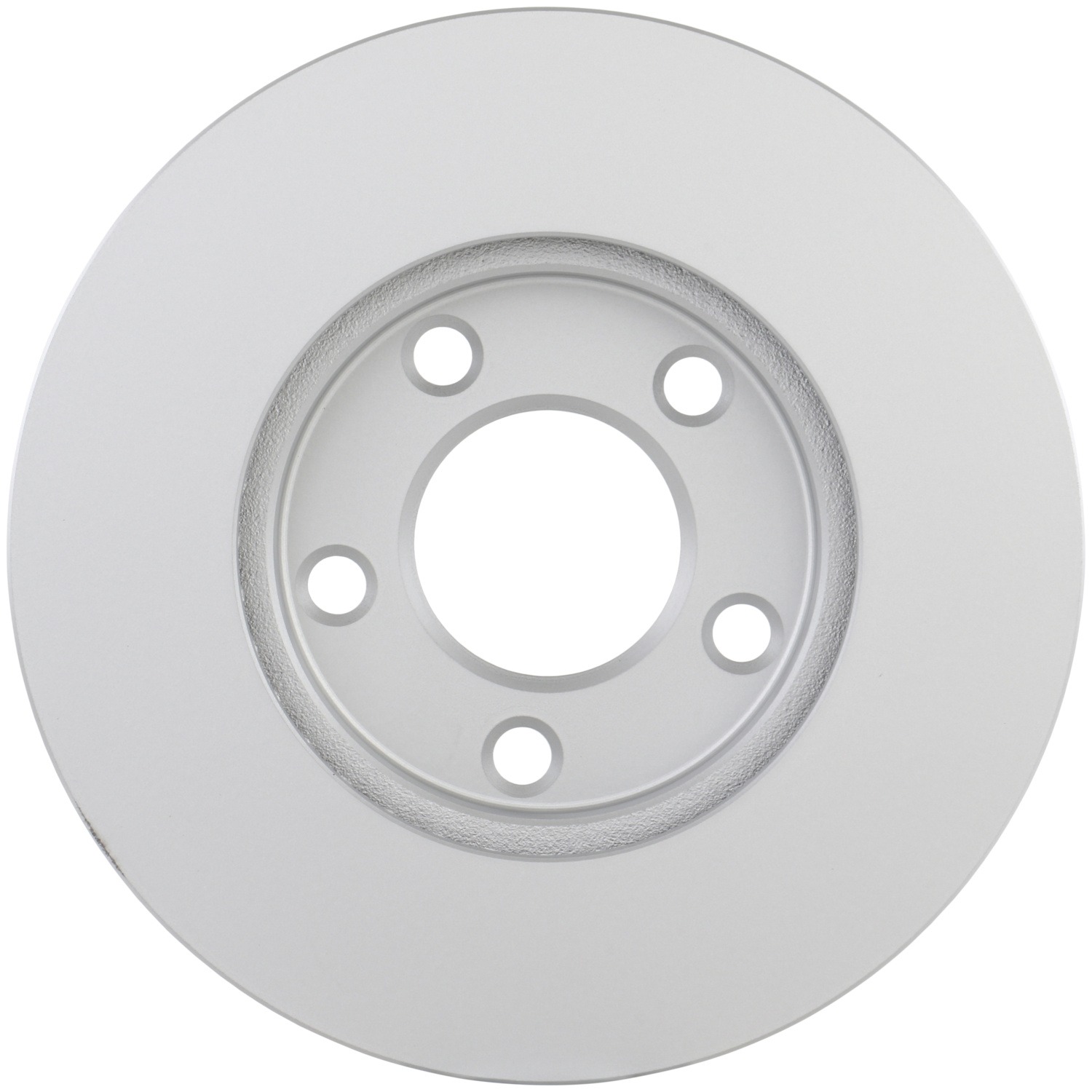

Bosch 20010327 front brake rotor for the 1994-2004 Ford Mustang gives the brake pads a vented disc to clamp and helps shed braking heat. This Bosch QuietCast brake rotor is sold without a hub assembly.
- Bosch QuietCast rotors are 100% precision balanced for smooth operation and minimal vibration
- Tight tolerances with low run-out and DTV specifications for a smooth pedal feel with no pulsation
- Heat flowed castings for consistent wear, quiet operation and long life
- Vane configuration for proper heat dissipation from the braking system
- Full coating including the vanes (where applicable) to protect against corrosion
- Edge code engraved for identification and discard specification
Quick facts
- Part: Bosch 20010327 brake rotor
- Also called: disc brake rotor
- Fits: 1994-2004 Ford Mustang
- Position: Front
- Condition: New
A grooved or scored rotor surface, a pulsing brake pedal or noise when braking can mean the rotor is worn, though worn pads or a sticking caliper can be behind the same signs. If the rotor is the cause, this one replaces it.
Fits
This is a front rotor for the 1994-2004 Ford Mustang. By engine, it fits the 1994-1995 V8-5.0L, the 1994-2001 V6-3.8L, the 1996-2001 V8-4.6L, the 2002 model, the 2003-2004 V6-3.8L and V8-4.6L, and the 2004 V6-3.9L.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Thickness: 26 mm
- Center bore diameter: 71.1 mm
Build and materials
- Construction: Vented
- Type: Rotor without hub assembly
- Coating: Full coating including the vanes (where applicable)
- ABS sensor ring: for trouble-free ABS and traction control operation on equipped vehicles
- Condition: New
In the box
One front brake rotor without a hub assembly. This listing holds one rotor; the 1994-2004 Ford Mustang takes two, so order two and fit them together.
Interchange: YR3Z1V125B
Frequently Asked Questions
Does the Bosch 20010327 front rotor fit the 2004 Ford Mustang V8-4.6L?
Yes. Bosch 20010327 is listed for the 2003-2004 Ford Mustang V8-4.6L, and also for the 2004 Mustang with the V6-3.9L.
What are the thickness and center bore of this Bosch brake rotor?
Bosch 20010327 is 26 mm thick with a 71.1 mm center bore, and it has a vented construction.
Does this front rotor come with the wheel hub?
No. This rotor is sold without a hub assembly, and the listing is for one rotor.
How can I tell when a front rotor is worn out?
Visible grooves, a pulsing pedal or noise when braking can mean wear. During a brake service, measure the rotor and compare it with the discard specification engraved on its edge.
Is the Bosch QuietCast Premium disc brake rotor balanced and coated?
Yes. This rotor is 100% precision balanced and has a full coating, including the vanes where applicable, to protect against corrosion.
